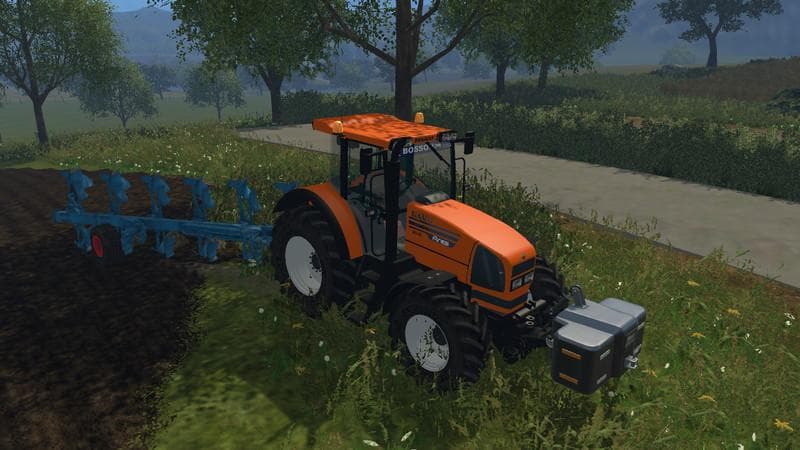

Renault Ares 825

Last Updated: June 2024

Overview

The Renault Ares 825 is a utility tractor equipped with a sophisticated power shift transmission that offers 18 forward and 8 reverse gears, providing versatility for a range of tasks. Its John Deere 6068 HRT51 six-cylinder engine is turbocharged and intercooled, with a displacement of 414.2 cubic inches, generating 175 horsepower at 2200 RPM. It has a 4x4 MFWD four-wheel-drive chassis, with hydrostatic power steering ensuring smooth maneuverability. The tractor has a robust operating weight of 18,125 pounds and measures 195.7 inches in length and 119.3 inches in height. The Ares 825 runs on agriculture tires, with a size of 16.9R28 at the front and 20.8R38 at the rear. This tractor represents a blend of power and precision to handle a variety of farming tasks.
Show more...

Key Specifications

Category: Utility

Power Output: 175

Transmission: Power shift

Drive Type: 4WD

Operating Weight: 18125

Renault Ares 825 vs. Similar Tractors

Power Output
Excellent
Greater than 92% of similar tractors.
Operating Weight
Average
Greater than 69% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
6068 HRT51
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
-
Induction Type
Intercooled turbocharged
Cylinders
6
Displacement (ci)
414.2
Bore (in)
4.193
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
175

Transmission

Type
Power shift
Forward Gears
18
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
195.7
Width (in)
-
Height (in)
119.3
Operating Weight (lb)
18125

Power Take-Off (PTO)

PTO Type
Optional Transmission or Live PTO
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agriculture
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
