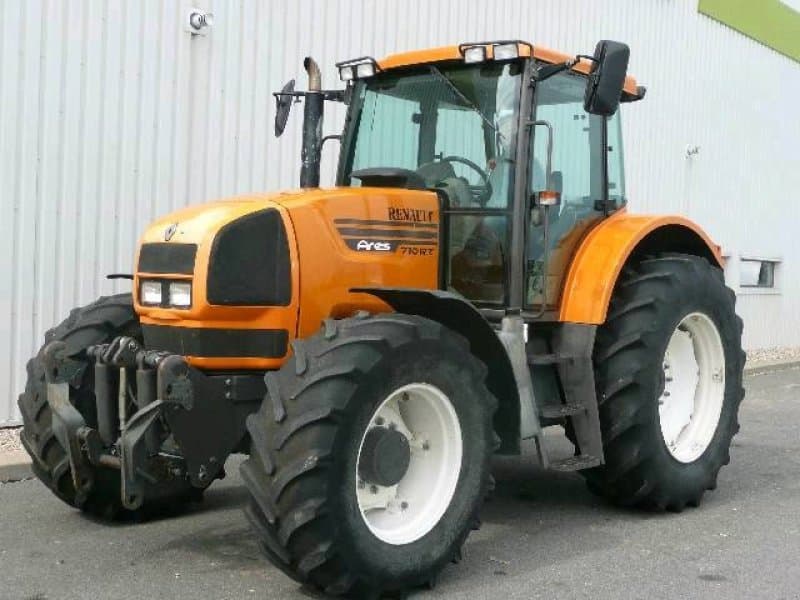

Renault Ares 710

Last Updated: June 2024

Overview

The Renault Ares 710 is equipped with a rugged 4x4 MFWD 4WD chassis, making it a dependable and versatile tractor for a variety of agricultural tasks. It is powered by a John Deere 6068 TR turbocharged diesel engine capable of delivering 145 horsepower and a torque of 447 lb-ft. This engine's displacement stands at 414.2 cubic inches and operates efficiently at 2200 rated RPM. The hydrostatic power steering ensures smooth maneuverability. The Ares 710 boasts a 32-speed transmission facilitating a vast range of speeds suitable for different tasks. Hydrostatic power steering provides ease of handling. The sizable wheelbase at 113.4 inches and 4WD drive configuration endow this tractor with stability and traction over uneven terrains. The tractor's significant stature is also reflected in its length of 204.3 inches and height of 118.9 inches, with an operating weight of 15,743 pounds, underpinning the capability to handle tough jobs. Standard tires are denoted as Ag front 16.9R28 and Ag rear 20.8R38, contributing to its effective performance in varied agricultural applications.
Show more...

Key Specifications

Power Output: 145

Drive Type: 4WD

Operating Weight: 15743

Fuel Type: diesel

Technical Specifications

Engine

Manufacturer
John Deere
Model
6068 TR
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
diesel
Induction Type
turbocharged
Cylinders
6
Displacement (ci)
414.2
Bore (in)
4.193
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
145

Transmission

Type
-
Forward Gears
32
Reverse Gears
32
Total Gears
64

Dimensions

Length (in)
204.3
Width (in)
-
Height (in)
118.9
Operating Weight (lb)
15743

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
