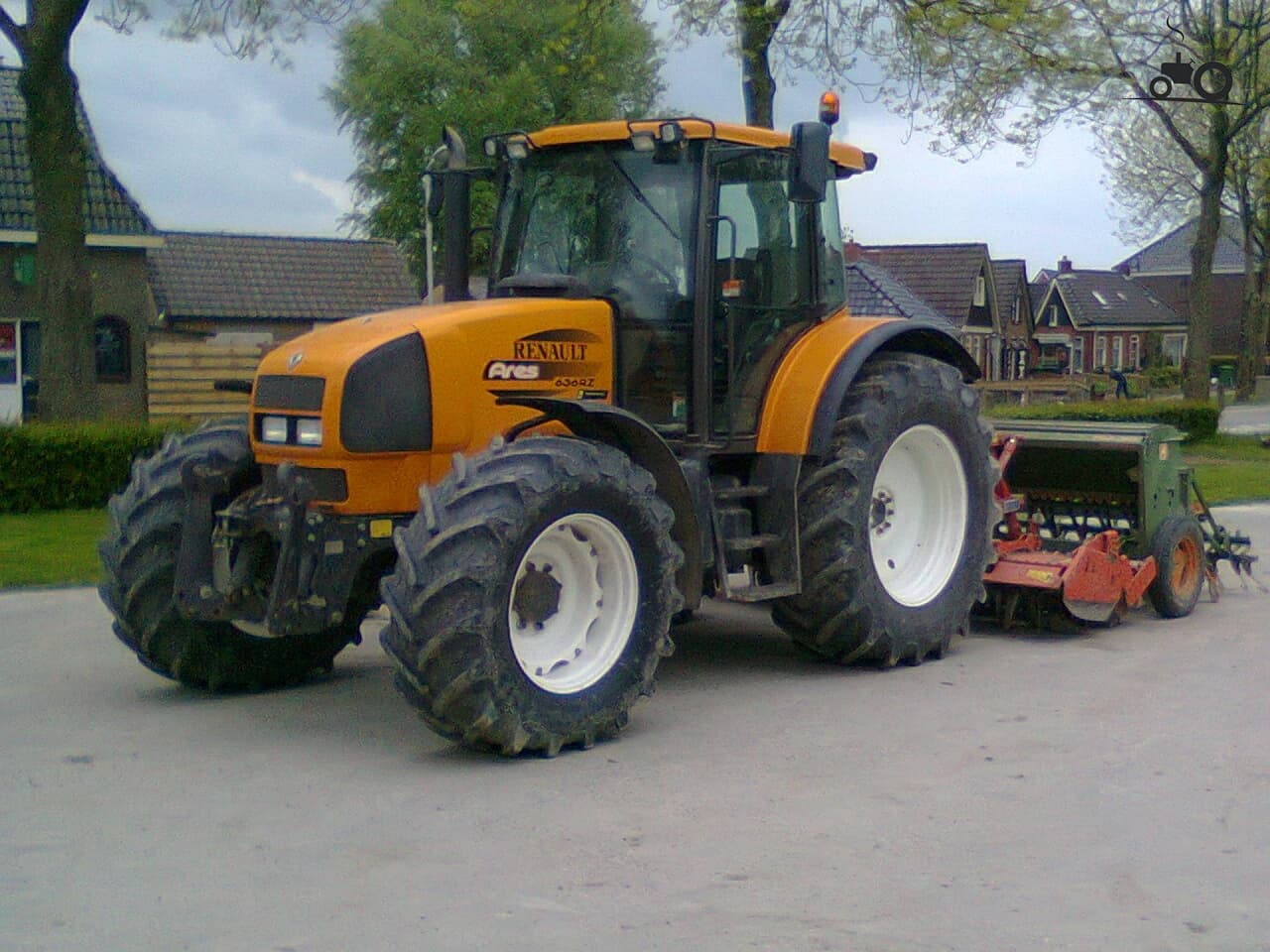

Renault Ares 636

Last Updated: June 2024

Overview

The Renault Ares 636 is a robust tractor designed for a variety of tasks. Equipped with a reliable John Deere turbocharged diesel engine, model 6068 TRT, it boasts 136 horsepower and a displacement of 414.2 cubic inches. The engine peaks at 2000 RPM and delivers significant torque of 401.3 lb-ft at 1300 RPM, making it well-suited for heavy-duty operations. Its hydrostatic power steering and a large wheelbase of 108.3 inches provide stability and maneuverability. The 4x4 MFWD 4WD chassis and the large tires, 14.9R28 in the front and 18.4R38 in the rear, offer excellent traction. The Ares 636 comes with a 32-speed transmission that delivers equal forward and reverse gears, facilitating complex agricultural tasks. With its length of 186.2 inches and height of 114.6 inches, the tractor balances size with functionality, ensuring it can operate efficiently on various terrains.
Show more...

Key Specifications

Power Output: 136

Drive Type: 4WD

Operating Weight: 13891

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
John Deere
Model
6068 TRT
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
414.2
Bore (in)
4.193
Stroke (in)
5
Rated RPM
2000
Power Output (hp)
136

Transmission

Type
-
Forward Gears
32
Reverse Gears
32
Total Gears
32

Dimensions

Length (in)
186.2
Width (in)
-
Height (in)
114.6
Operating Weight (lb)
13891

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
