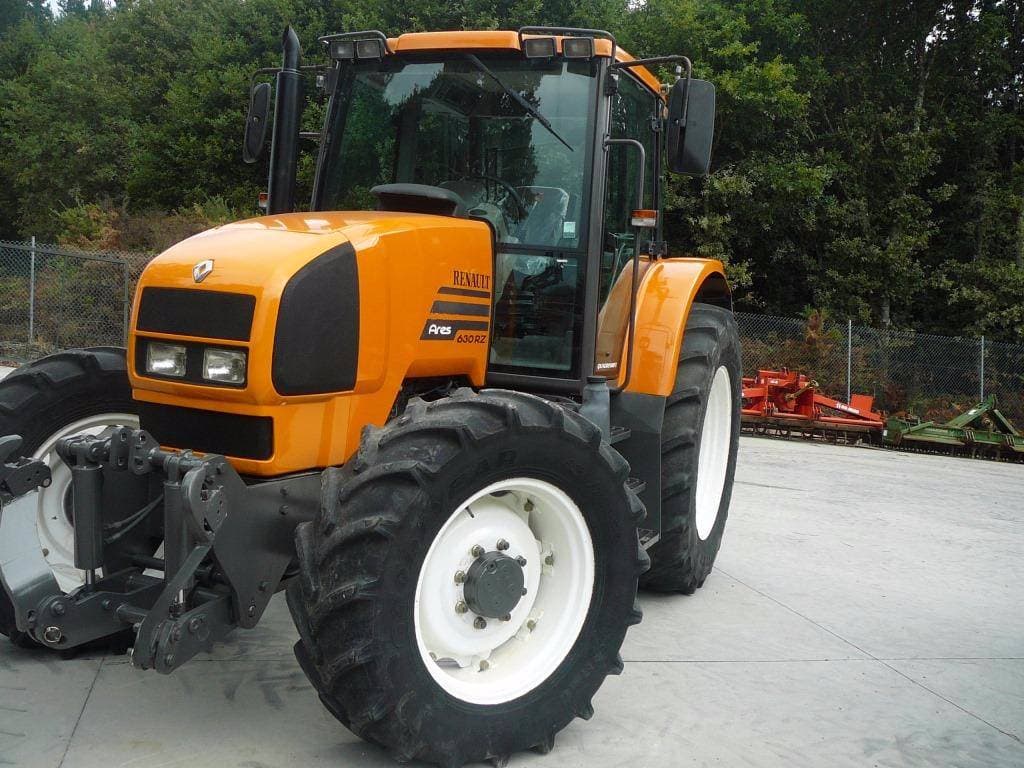

Renault Ares 630

Last Updated: June 2024

Overview

The Renault Ares 630 is a robust tractor built to tackle various agricultural tasks. Its chassis houses a powerful four-wheel-drive (4x4 MFWD 4WD) system, guided by hydrostatic power steering, which enhances maneuverability on rough terrains. The heart of the Renault Ares 630 is a turbocharged, liquid-cooled, six-cylinder John Deere 6068 TRT diesel engine, providing 120 horsepower at an optimal 2200 RPM and a significant torque of 365.1 lb-ft at 1500 RPM. It features a displacement of 414.2 cubic inches and a bore and stroke of 4.193 inches by 5.00 inches respectively. The substantial 32-speed transmission ensures versatility during various tasks, offering ample speed options for forward and reverse movement. The tractor sits on sizable Ag tires, with the front size being 14.9R28 and the rear 18.4R38, contributing to its stability and traction. Measuring 169.3 inches in length and 114.6 inches in height, and weighing at 13,340 pounds, the Ares 630 is designed to be durable and reliable for a broad range of field applications.
Show more...

Key Specifications

Power Output: 120

Drive Type: 4WD

Operating Weight: 13,340

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
John Deere
Model
6068 TRT
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
414.2
Bore (in)
4.193
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
120

Transmission

Type
-
Forward Gears
32
Reverse Gears
32
Total Gears
-

Dimensions

Length (in)
169.3
Width (in)
-
Height (in)
114.6
Operating Weight (lb)
13,340

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
