Renault Ares 626

Last Updated: June 2024

Overview

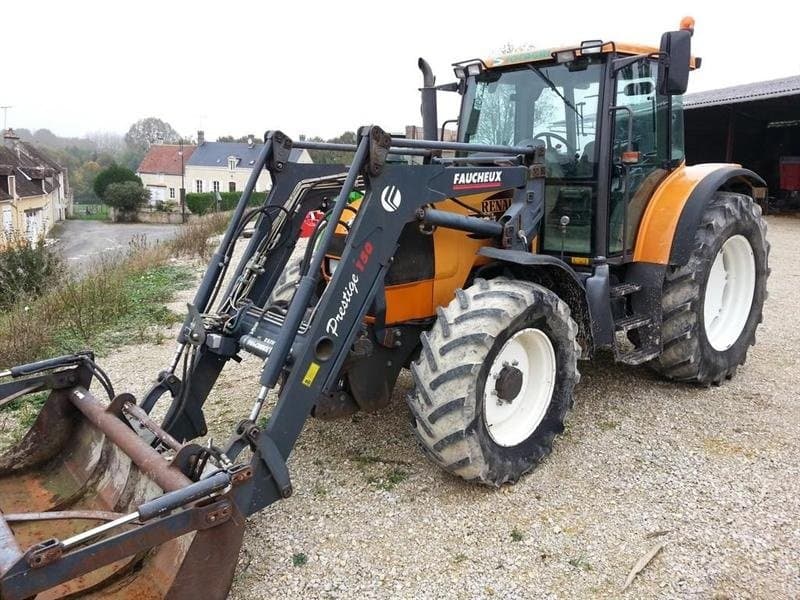

The Renault Ares 626 is a robust utility tractor that is powered by a 126 hp (94.0 kW) John Deere turbocharged diesel engine. It has a 6-cylinder, liquid-cooled, 414.2 ci (6.8 L) engine with a bore and stroke of 4.193 x 5.00 inches. The tractor comes equipped with a four-wheel drive chassis (4x4 MFWD 4WD) and a hydrostatic power steering system to handle demanding fieldwork efficiently. With an engine rated RPM of 2100 and a torque output of 385.0 lb-ft at 1200 RPM, it delivers reliable performance for a wide range of agricultural applications. The transmission provides 32 forward and reverse gears, lending the Ares 626 versatility in speed and control for various tasks. The tractor's wheelbase is set at 108.3 inches, and it has an overall length of 170.5 inches and a height of 114.6 inches. With agricultural front tires of 14.9R28 and rear tires of 18.4R38, it is well-suited for traction and stability in diverse working conditions. The specified operating weight is 12,921 lbs, demonstrating its substantial build and capacity for heavy-duty work.
Show more...

Key Specifications

Power Output: 126

Drive Type: 4WD

Operating Weight: 12921

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
John Deere
Model
6068 TRT
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
414.2
Bore (in)
4.193
Stroke (in)
5
Rated RPM
2100
Power Output (hp)
126

Transmission

Type
-
Forward Gears
32
Reverse Gears
32
Total Gears
-

Dimensions

Length (in)
170.5
Width (in)
-
Height (in)
114.6
Operating Weight (lb)
12921

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
