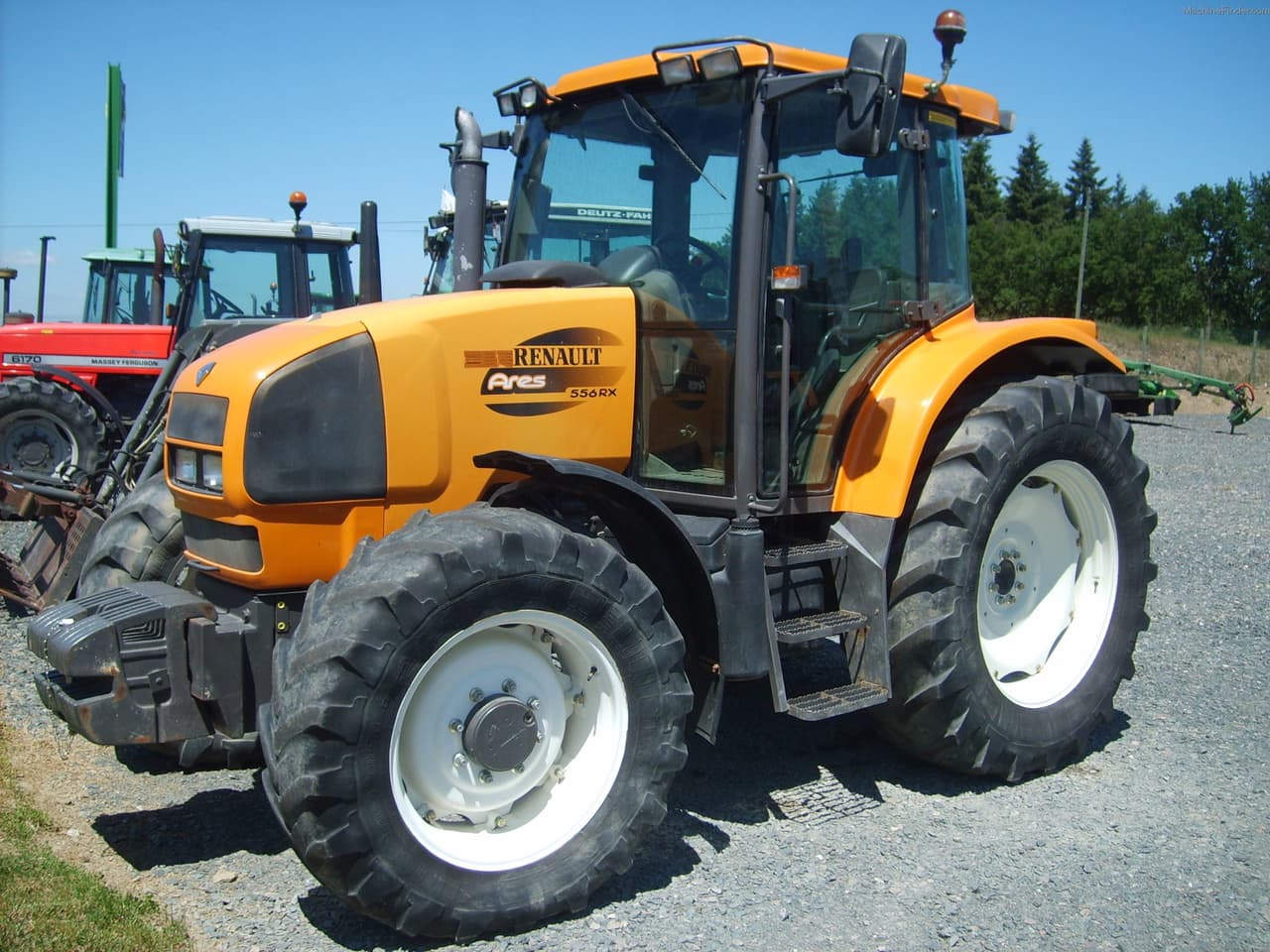

Renault Ares 556

Last Updated: June 2024

Overview

The Renault Ares 556 is a 4-wheel drive tractor, utilizing a 4x4 MFWD chassis configuration, which is conducive to a variety of agricultural tasks. The hydrostatic power steering facilitates easier maneuverability of the tractor. Power comes from a John Deere 4045 TRT turbocharged diesel engine producing 103 hp with a displacement of 276.4 cubic inches. The engine operates at a rated RPM of 2000 and delivers a torque of 309.1 lb-ft at 1400 RPM. It features a 32-speed transmission system, although the exact type of transmission is unspecified. With dimensions including a length of 157.5 inches and a height of 111.8 inches, the tractor's substantial size is paired with its operating weight of 11,532 lbs. The tractor's large rear tires, 16.9R38, support its heavy-duty tasks, while slightly smaller front tires, 13.6R28, contribute to the machine's balance and performance. Specific details about hydraulic systems, PTO speed, hitch capabilities, and the starting system are not provided in the given data set.
Show more...

Key Specifications

Power Output: 103

Drive Type: MFWD 4WD

Operating Weight: 11,532

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
John Deere
Model
4045 TRT
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
276.4
Bore (in)
4.193
Stroke (in)
5
Rated RPM
2000
Power Output (hp)
103

Transmission

Type
-
Forward Gears
32
Reverse Gears
32
Total Gears
64

Dimensions

Length (in)
157.5
Width (in)
-
Height (in)
111.8
Operating Weight (lb)
11,532

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
MFWD 4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (Agricultural)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
