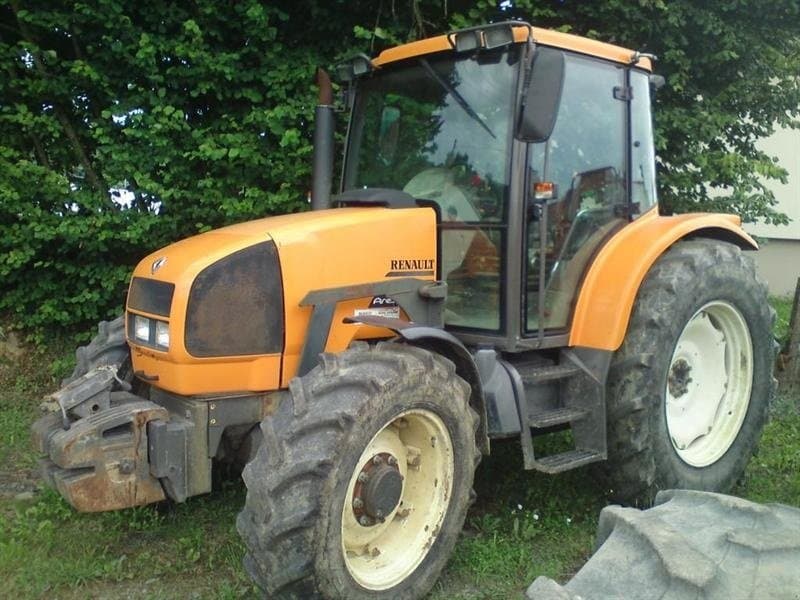

Renault Ares 550

Last Updated: June 2024

Overview

The Renault Ares 550 is a robust utility tractor, marked by its four-wheel drive (4WD) configuration, known in specification terms as "4x4 MFWD". This model comes equipped with a turbocharged John Deere 4045 TRT diesel engine that offers 95 horsepower and is liquid-cooled. It has a robust transmission system with a large range of gears, though there is conflicting data regarding whether it's 16 or 32 speeds in forward and reverse gears—the assumption is that there are 32-forward and reverse gears based on dual entries in provided data. Hydrostatic power steering provides ease of maneuvering, complemented by a wheelbase of 98 inches, an overall length of 156.7 inches and height of 109.1 inches, providing stability and comfort in various working conditions. Its operating weight of 10,914 lbs ensures the tractor is capable of heavy-duty tasks. Tires measurements are specified as "Ag front: 13.6R28" and "Ag rear: 16.9R38", indicating it is equipped for agricultural performance, though specific tire type is not detailed. While several specifications such as the tire dimensions, hitch type, and hydraulics remain unknown, the Renault Ares 550 clearly identifies itself as a capable and efficient working tractor.
Show more...

Key Specifications

Power Output: 95

Drive Type: 4WD

Operating Weight: 10,914

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
John Deere
Model
4045 TRT
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
276.4
Bore (in)
4.193
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
95

Transmission

Type
-
Forward Gears
16 or 32 (Assuming 32 due to conflicting information)
Reverse Gears
16 or 32 (Assuming 32 due to conflicting information)
Total Gears
-

Dimensions

Length (in)
156.7
Width (in)
-
Height (in)
109.1
Operating Weight (lb)
10,914

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
