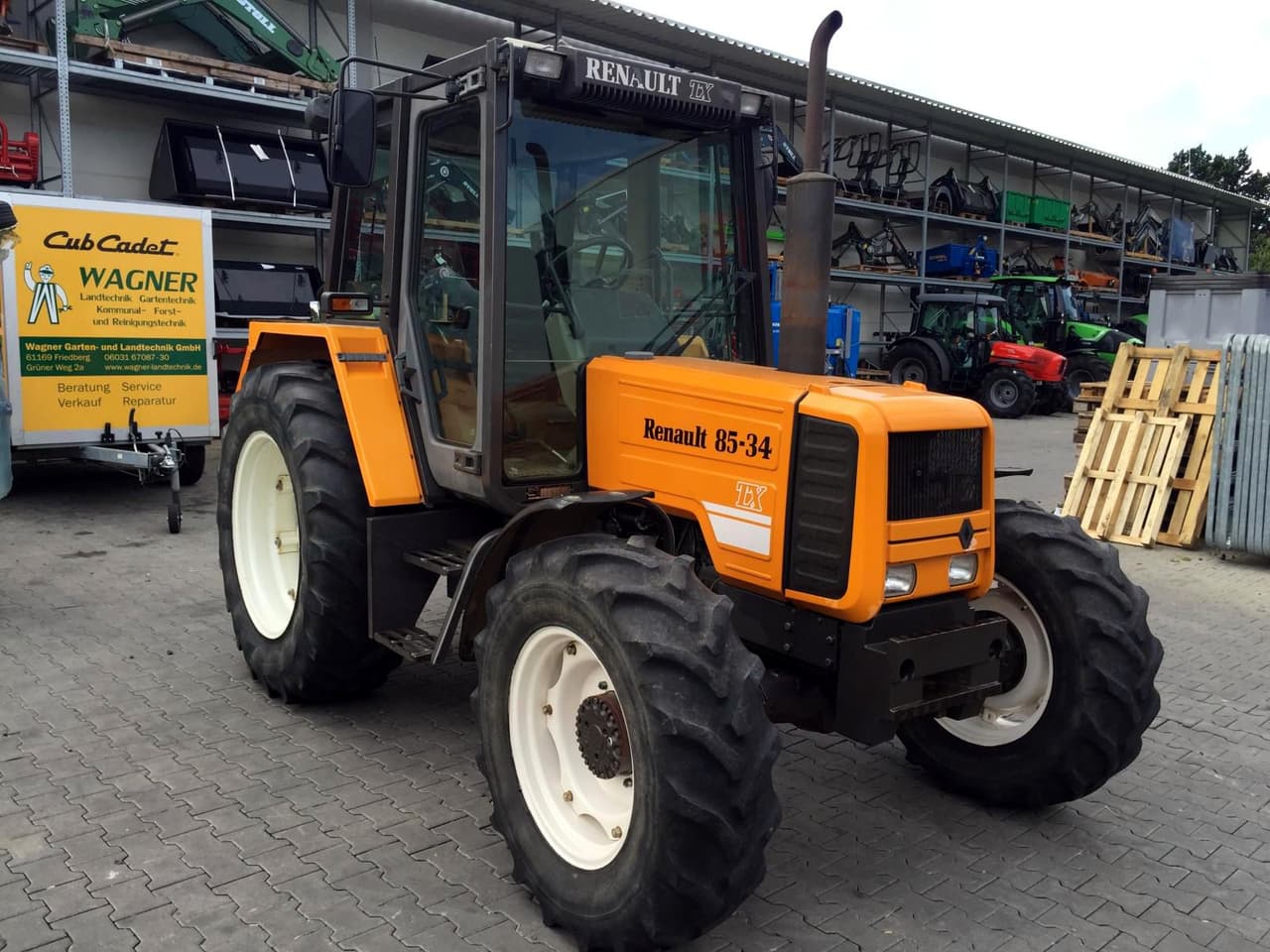

Renault 85-34 MX

Last Updated: June 2024

Overview

The Renault 85-34 MX is a 4WD tractor designed with a focus on utility and performance. Featuring a robust MWM D226-4 diesel engine, it boasts a displacement of 253.6 cubic inches and achieves an engine power of 78 horsepower at 2350 RPM. The engine also delivers a notable torque of 196.2 lb-ft at 1500 RPM. The tractor is equipped with hydrostatic power steering, enhancing maneuverability and ease of operation. It operates with a 12-speed transmission, providing ample range for various tasks. The Renault 85-34 MX has a chassis configuration of 4x4 MFWD 4WD, designed to handle a variety of terrain with improved traction. The tractor comes with agricultural tires, implying its primary use in farming operations. Measurements include a length of 159.8 inches, a height of 98.4 inches, and a wheelbase of 94.1 inches. The total operating weight of the tractor is 8,379 pounds. This model's structural design and configuration make it suitable for a range of agricultural tasks, with an emphasis on reliable performance and durability.
Show more...

Key Specifications

Power Output: 78

Drive Type: 4WD

Operating Weight: 8,379

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
MWM
Model
D226-4
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
253.6
Bore (in)
4.134
Stroke (in)
4.724
Rated RPM
2350
Power Output (hp)
78

Transmission

Type
-
Forward Gears
12
Reverse Gears
12
Total Gears
24

Dimensions

Length (in)
159.8
Width (in)
-
Height (in)
98.4
Operating Weight (lb)
8,379

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
