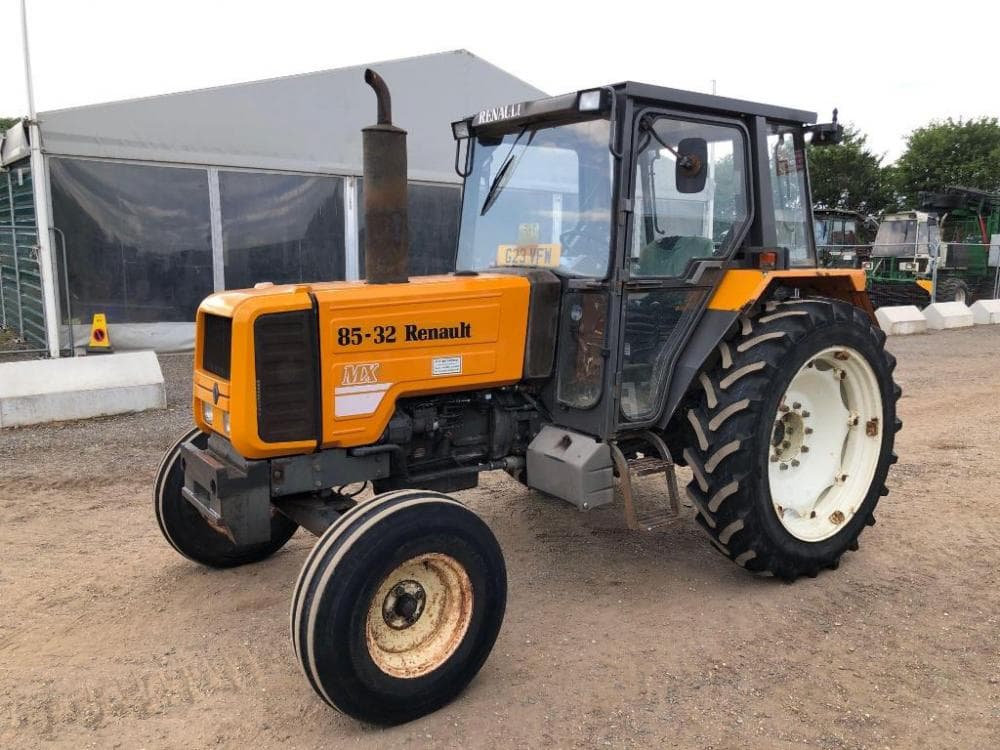

Renault 85-32 TX

Last Updated: June 2024

Overview

The Renault 85-32 TX is a utility tractor which was built to deliver reliable performance for various agricultural tasks. It is equipped with a 78 horsepower MWM D226-4 diesel engine that provides ample power and is liquid-cooled to maintain optimal engine temperature. The 4-cylinder engine, with a displacement of 253.6 cubic inches, operates at a rated 2350 RPM. The engine's torque is rated at 196.2 lb-ft at 1500 RPM, ensuring good pulling power. This model features a 12-speed manual transmission with a 4x2 chassis and hydrostatic power steering for ease of maneuverability. Its wheelbase measures at 95.7 inches, supporting a stable ride. The tractor has an operating weight of 7,574 lbs and is sized at 154.7 inches in length and 109.1 inches in height, indicating a robust stature suitable for a variety of tasks. The tire configuration includes 7.50-18 ag tires in the front and 16.9-34 ag tires in the rear, ideal for traction and durability in the field. The overall design of the Renault 85-32 TX emphasizes utility and functionality, catering to the needs of farmers seeking a dependable workhorse for their agricultural operations.
Show more...

Key Specifications

Category: Utility

Power Output: 78

Transmission: Manual

Drive Type: 2WD

Operating Weight: 7,574

Fuel Type: Diesel

Renault 85-32 TX vs. Similar Tractors

Power Output
Average
Greater than 69% of similar tractors.
Operating Weight
Poor
Greater than 4% of similar tractors.

Technical Specifications

Engine

Manufacturer
MWM
Model
D226-4
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
253.6
Bore (in)
4.134
Stroke (in)
4.724
Rated RPM
2350
Power Output (hp)
78

Transmission

Type
Manual
Forward Gears
12
Reverse Gears
-
Total Gears
24

Dimensions

Length (in)
154.7
Width (in)
-
Height (in)
109.1
Operating Weight (lb)
7,574

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
18
Front Tire Width (in)
-
Rear Tire Diameter (in)
34
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
