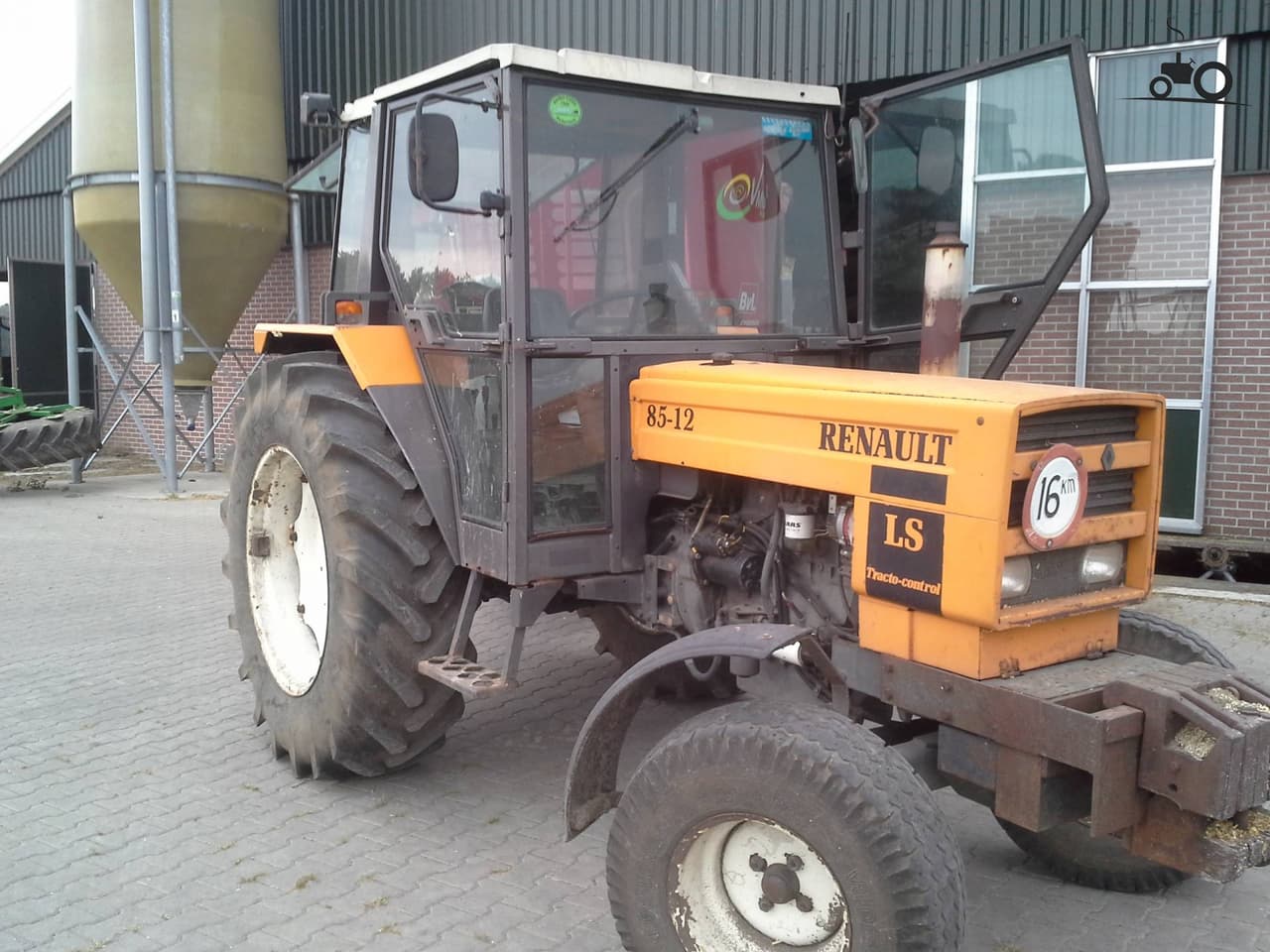

Renault 85-12 LS

Last Updated: June 2024

Overview

The Renault 85-12 LS is a two-wheel drive (2WD) tractor, characterized by its 4x2 2WD chassis configuration and hydrostatic power steering, offering a balanced combination of maneuverability and simplicity. Equipped with an MWM D226-4 diesel engine, it has a displacement of 253.6 cubic inches and delivers a power output of 78 horsepower at a rated RPM of 2350. The engine is also capable of producing a torque of 196.9 lb-ft at 1300 RPM, which underscores its suitability for a range of heavy-duty tasks. Despite information about the transmission type being unspecified, the tractor has a 12-speed gear system, with an equal number of forward and reverse gears, which suggests versatility in speed and power management for various agricultural operations. The 85-12 LS has a notable operating weight of 6,626 pounds, and dimensions that include a length of 159.8 inches and a height of 97.6 inches. Although the detailed dimensions of the tires are not specified, the tractor is fitted with agricultural tires, sized 7.50-18 in the front and 16.9-34 in the rear. This tractor does not have specific information available for its starter type, PTO speeds, brakes, or hydraulic system. Furthermore, details such as the width of the tractor, starter type, operator station type, and additional features are not specified in the data provided.
Show more...

Key Specifications

Power Output: 78

Drive Type: 2WD

Operating Weight: 6626

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
MWM
Model
D226-4
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated (assumed based on absence of turbo or supercharger)
Cylinders
4
Displacement (ci)
253.6
Bore (in)
4.134
Stroke (in)
4.724
Rated RPM
2350
Power Output (hp)
78

Transmission

Type
-
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
159.8
Width (in)
-
Height (in)
97.6
Operating Weight (lb)
6626

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3 (assumed based on standardization)
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
