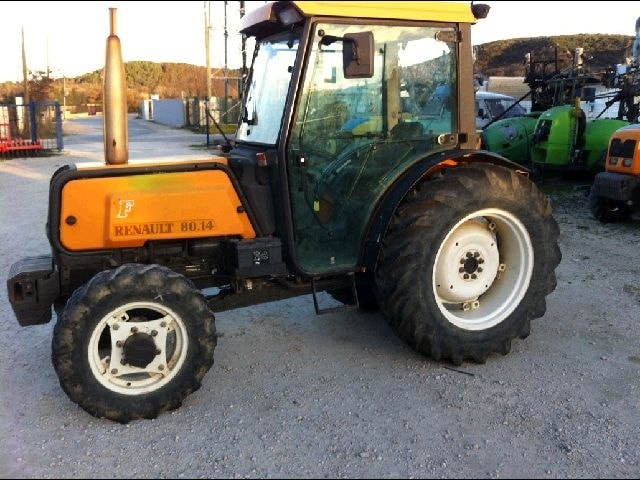

Renault 80-14 TX

Last Updated: June 2024

Overview

The Renault 80-14 TX is a 4WD tractor, powered by a 78 hp MWM D226-4 diesel engine. It is equipped with a 4x4 MFWD chassis and hydrostatic power steering, which enhances maneuverability and ease of operation. The transmission provides 12 forward and 12 reverse gears. With a substantial engine displacement of 253.6 cubic inches, the engine runs at a rated RPM of 2350 and delivers power efficiently with a torque output of 202.1 lb-ft at 1500 RPM. The tractor's overall length is 159.4 inches, a height of 109.1 inches, and an operating weight of 10,179 lbs, reflecting its capability to handle substantial workloads. The front and rear tires are designed for agricultural use, with a wheelbase measuring 94.1 inches, indicative of a stable and balanced ride during operation.
Show more...

Key Specifications

Power Output: 78

Drive Type: 4WD

Operating Weight: 10,179

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
MWM
Model
D226-4
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
253.6
Bore (in)
4.134
Stroke (in)
4.724
Rated RPM
2350
Power Output (hp)
78

Transmission

Type
-
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
159.4
Width (in)
-
Height (in)
109.1
Operating Weight (lb)
10,179

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
