Renault 751S

Last Updated: June 2024

Overview

The Renault 751S is a utility tractor that was manufactured with an option for 2WD or 4WD. It's powered by a 75 hp MWM D226-4 diesel engine which is liquid-cooled, has a displacement of 253.5 cubic inches, and operates at a rated RPM of 2350. The mechanical shuttle transmission provides 12 forward and reverse gears. A dry disc clutch is a part of the transmission system. The tractor's chassis can be either 2WD with a wheelbase of 93.3 inches or 4WD with a wheelbase of 94.5 inches. Depending on the configuration, the tractor's weight ranges from 6030 to 8025 pounds. The versatile tire options offer standard setups for both 2WD and 4WD, as well as optional larger sizes for different operational needs. The tractor's width is 64.6 inches. Operator comfort is considered, with an open operator station and an optional cab. Standard safety features include a ROPS (Roll Over Protection Structure), with exact height dimensions provided for steering and cab.

Key Specifications

Category: Utility

Power Output: 75

Transmission: Mechanical shuttle

Drive Type: 2WD; 4WD available

Operating Weight: 6030 (2WD ROPS); 6768 (2WD Cab); 7286 (4WD ROPS); 8025 (4WD Cab)

Fuel Type: Diesel

Image Gallery

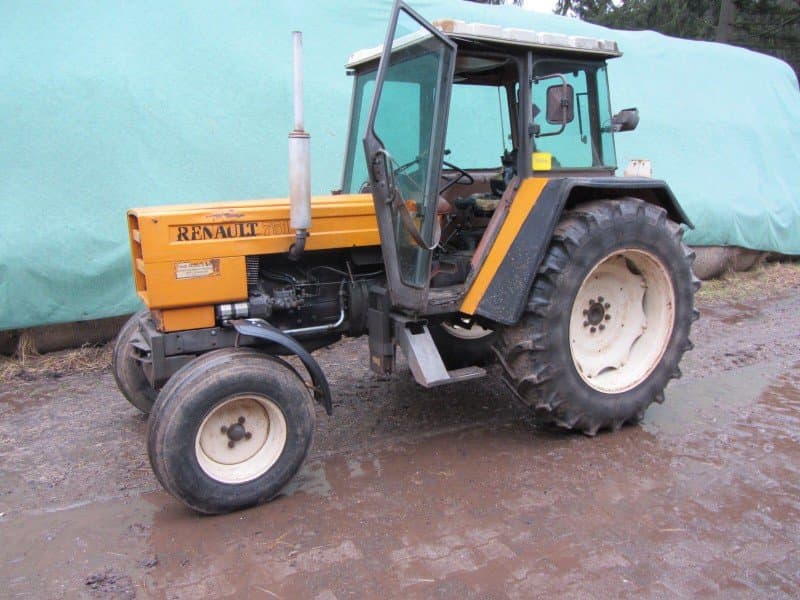

Renault 751S Tractor

Renault 751S vs. Similar Tractors

Power Output

Average

Greater than 68% of similar tractors.

Operating Weight

Excellent

Greater than 100% of similar tractors.

Technical Specifications

Engine

Manufacturer: MWM
Model: D226-4
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally aspirated
Cylinders: 4
Displacement (ci): 253.5
Bore (in): 4.134
Stroke (in): 4.724
Rated RPM: 2350
Power Output (hp): 75

Transmission

Type: Mechanical shuttle
Forward Gears: 12
Reverse Gears: 12
Total Gears: -

Dimensions

Length (in): 150 (2WD); 158.7 (4WD)
Width (in): 64.6
Height (in): 56.7 (2WD Steering wheel); 65.4 (4WD Steering wheel); 98 (Cab height)
Operating Weight (lb): 6030 (2WD ROPS); 6768 (2WD Cab); 7286 (4WD ROPS); 8025 (4WD Cab)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 2WD or 4WD optional
Drive Type: 2WD; 4WD available
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: -
Hitch Type: -
Hitch Category: II
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: Open; Cab available
Starter Type: Electric starter (12 volts)
Brake Type: -
Hydraulic System Type: Open center
