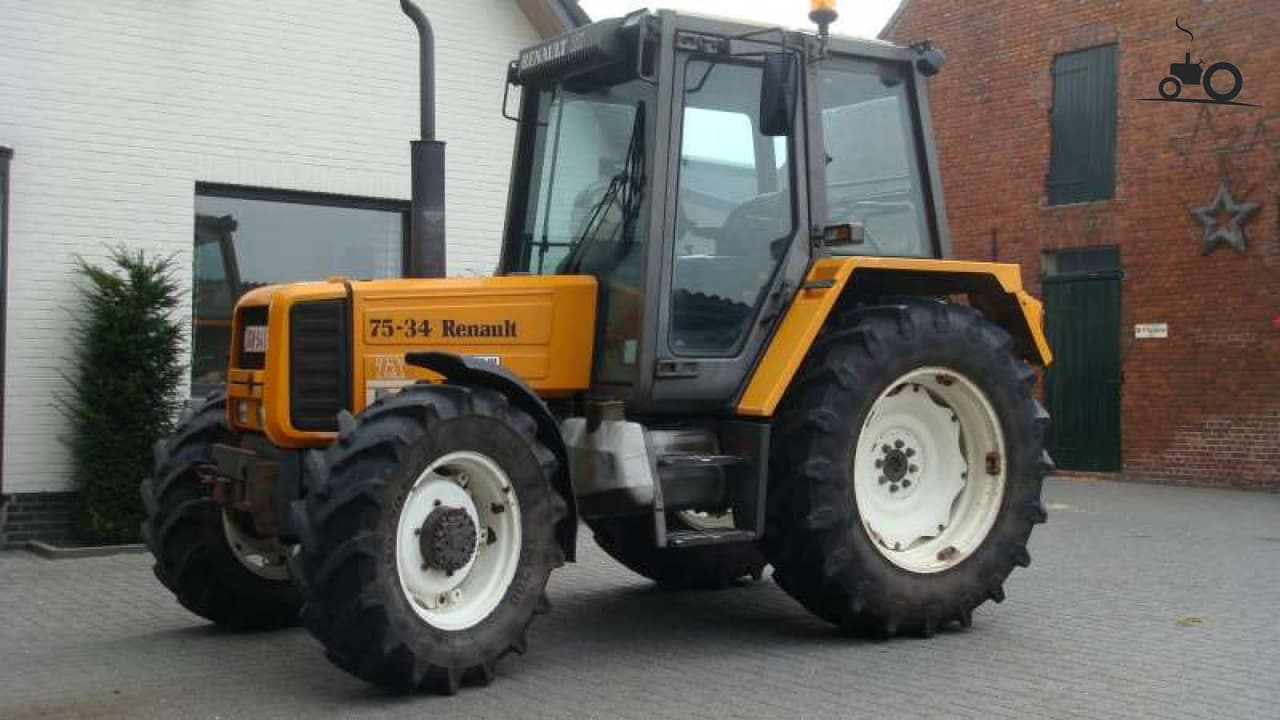

Renault 75-34 TX

Last Updated: June 2024

Overview

The Renault 75-34 TX is a utility tractor that boasts a four-wheel drive (4x4 MFWD 4WD) chassis and is powered by a 70 hp MWM D226-4 diesel engine. With a displacement of 253.6 cubic inches and a liquid cooling system, the engine provides a steady power source for various agricultural tasks. The tractor has a hydrostatic power steering system, enhancing maneuverability and ease of use. It offers a substantial transmission system featuring 12 speeds in both forward and reverse, facilitating a wide range of operations. The tractor's dimensions are 159.4 inches in length and 109.1 inches in height, with a wheelbase of 94.5 inches, making it suitable for various tasks without being overly bulky. It has a substantial operating weight of 8467 pounds, which provides stability and traction for pulling and lifting tasks. The tractor rides on large agricultural tires with fronts at 13.6-24 and rears at 16.9-34. This model is designed to suit the needs of a utility tractor, providing reliable performance and capability in diverse conditions.
Show more...

Key Specifications

Category: Utility

Power Output: 70

Drive Type: 4WD

Operating Weight: 8467

Fuel Type: Diesel

Renault 75-34 TX vs. Similar Tractors

Power Output
Average
Greater than 64% of similar tractors.
Operating Weight
Average
Greater than 58% of similar tractors.

Technical Specifications

Engine

Manufacturer
MWM
Model
D226-4
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
253.6
Bore (in)
4.134
Stroke (in)
4.724
Rated RPM
2350
Power Output (hp)
70

Transmission

Type
-
Forward Gears
12
Reverse Gears
12
Total Gears
24

Dimensions

Length (in)
159.4
Width (in)
-
Height (in)
109.1
Operating Weight (lb)
8467

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
