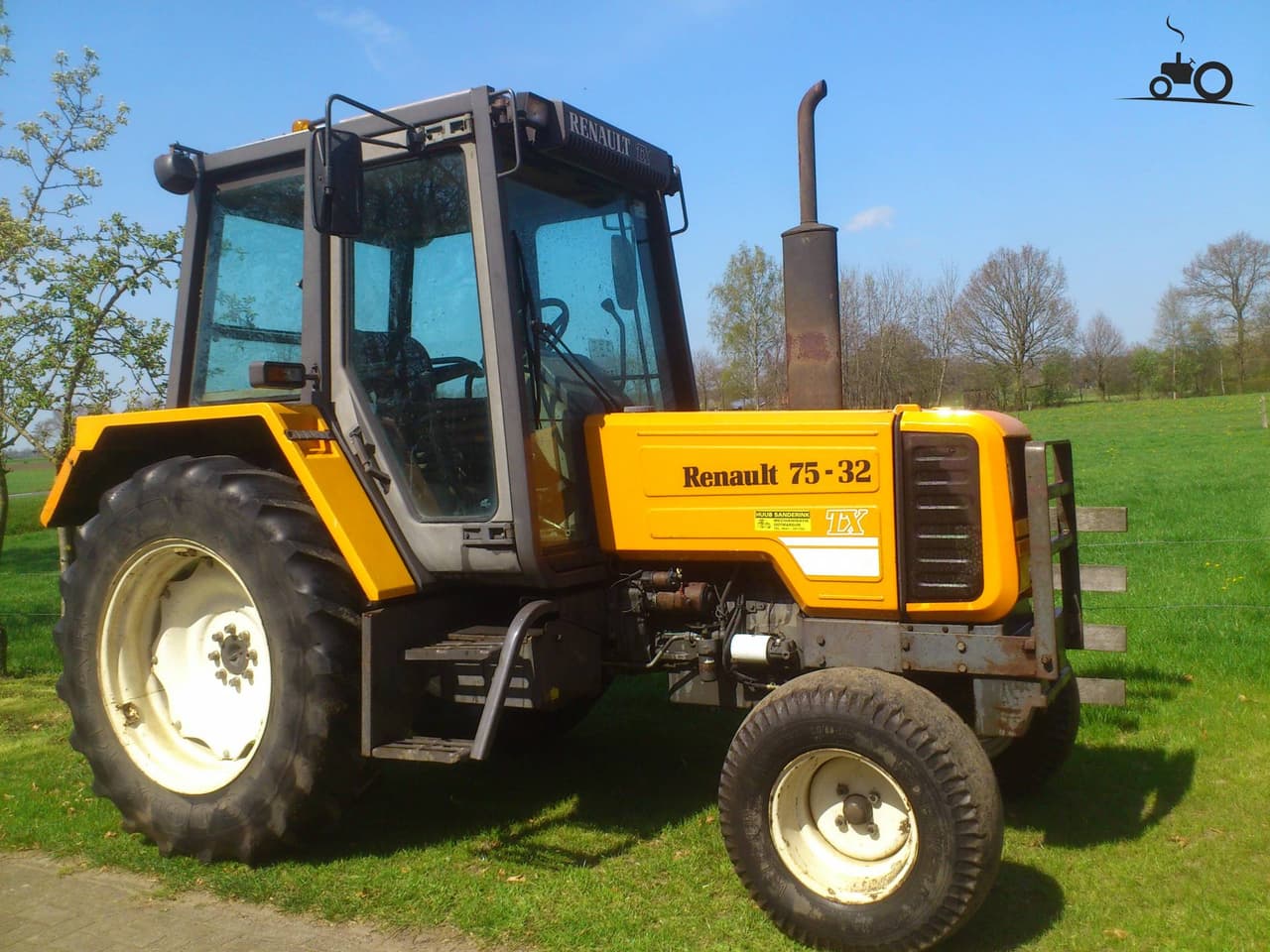

Renault 75-32 MX

Last Updated: June 2024

Overview

The Renault 75-32 MX is a utility tractor that comes equipped with a straightforward 4x2 (2WD) chassis and is designed to handle a variety of general-purpose farming tasks. A hydrostatic power-steering system provides an easier handling experience. The tractor is powered by a robust MWM D226-4, four-cylinder diesel engine that delivers 70 horsepower, with a displacement of 253.6 cubic inches. A synchromesh 12-speed transmission ensures smooth shiftability for both forward and reverse operations. The engine operates at a maximum rated RPM of 2350, and peak torque is reached at 1500 RPM. Overall, the 75-32 MX balances the essentials of power and function, making it a suitable tractor for various agricultural operations. The tractor's length is 159.8 inches and height is 98.4 inches, with a total operating weight of 7,056 lbs. The tires are sized 7.50-18 for the front and 16.9-34 for the rear, indicating a configuration for effective traction. The exact wheelbase measurement is 94.1 inches, which contributes to the stability of this model.
Show more...

Key Specifications

Category: Utility

Power Output: 70

Transmission: Synchromesh

Drive Type: 2WD

Operating Weight: 7056

Fuel Type: Diesel

Renault 75-32 MX vs. Similar Tractors

Power Output
Average
Greater than 64% of similar tractors.
Operating Weight
Average
Greater than 53% of similar tractors.

Technical Specifications

Engine

Manufacturer
MWM
Model
D226-4
Cooling Type
Liquid
Cylinder Orientation
Vertical
Valve Configuration
OHV
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
253.6
Bore (in)
4.134
Stroke (in)
4.724
Rated RPM
2350
Power Output (hp)
70

Transmission

Type
Synchromesh
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
159.8
Width (in)
-
Height (in)
98.4
Operating Weight (lb)
7056

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
