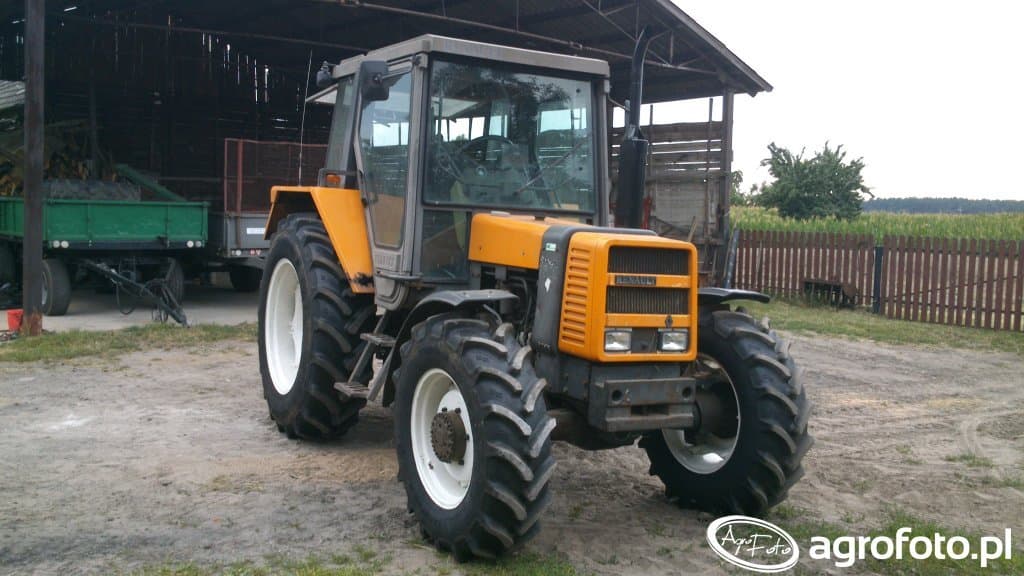

Renault 75-14 RS

Last Updated: June 2024

Overview

The Renault 75-14 RS is a robust utility tractor that is equipped with a 4-wheel drive designed for various agricultural tasks. It features a powerful MWM D226-4 diesel engine with 4 cylinders and a displacement of 253.6 cubic inches, capable of delivering 75 horsepower and a torque of 191.8 lb-ft at 1500 RPM. Operating at a rated RPM of 2350, this engine ensures sufficient power for different tractor operations. The tractor comes with a hydrostatic power steering system which provides easier maneuvering and decreased operator fatigue. The tractor has a 12-speed transmission system, providing a range of speed options for various tasks. It has a notable wheelbase of 95.7 inches for stability, and the specified weights are 13.6-24 for the front tire and 16.9-34 for the rear tire, indicative of a tractor designed for agricultural use. With a length of 158.7 inches and a height of 102.8 inches, the 75-14 RS is built to handle the demands of a busy farming operation while providing the power needed for efficient work. The tractor's operational weight is 7,643 pounds, which demonstrates its solid build and capability for heavy-duty tasks.
Show more...

Key Specifications

Power Output: 75

Drive Type: 4WD

Operating Weight: 7643

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
MWM
Model
D226-4
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
253.6
Bore (in)
4.134
Stroke (in)
4.724
Rated RPM
2350
Power Output (hp)
75

Transmission

Type
-
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
158.7
Width (in)
-
Height (in)
102.8
Operating Weight (lb)
7643

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
