Renault 75-12 TS

Last Updated: September 2024

Overview

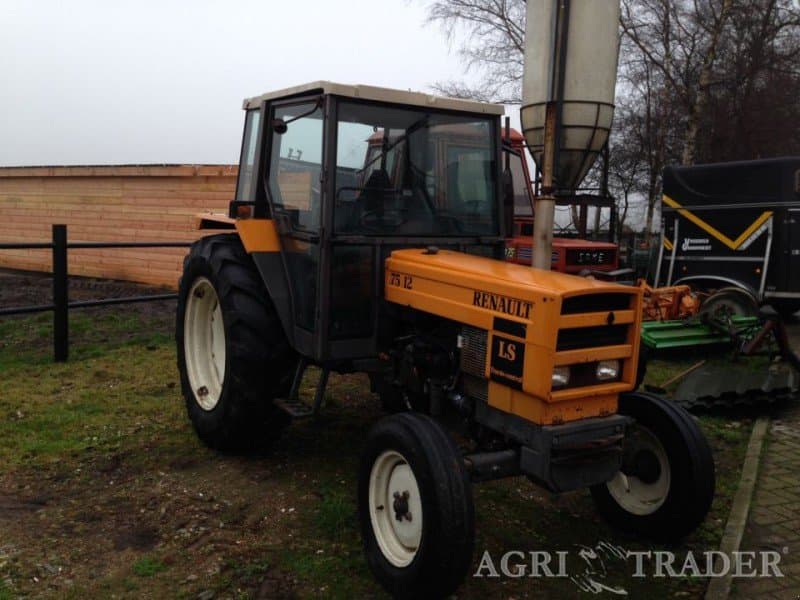

The Renault 75-12 TS is a 2WD tractor designed for agricultural use. It features a 4x2 chassis and hydrostatic power steering, making it easy to control in the field. The tractor has a manual transmission with 12 forward and 12 reverse gears, giving the operator 24 gears in total for various tasks.

Under the hood, the 75-12 TS is powered by a MWM D226-4 diesel engine. This naturally aspirated engine has 4 cylinders and a displacement of 253.6 cubic inches. It produces 75 horsepower at 2350 RPM, providing good power for farm work. The engine has a bore of 4.134 inches and a stroke of 4.724 inches. The tractor's compact size, measuring 159.4 inches long and 109.1 inches tall, makes it suitable for smaller farms and tight spaces. It also has a wheelbase of 94.1 inches and can generate 191.8 lb-ft of torque at 1500 RPM, giving it good pulling power for its size.
Show more...

Key Specifications

Power Output: 75 hp (55.9 kW)

Transmission: Manual

Drive Type: 2WD

Fuel Type: Diesel

Renault 75-12 TS vs. Similar Tractors

Power Output

The Power Output for the Renault 75-12 TS is Average. It is greater than 59% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 6.6K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Renault 75-12 TS is Average. It is greater than 63% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Renault 75-12 TS is Average. It is greater than 56% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
MWM
Model
D226-4
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
4
Displacement
254 ci (4.2 L)
Bore
4.13 in (105.0 mm)
Stroke
4.72 in (120.0 mm)
Rated RPM
2350
Power Output
75 hp (55.9 kW)

Transmission

Type
Manual
Forward Gears
12
Reverse Gears
12
Total Gears
24

Drivetrain

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic power
