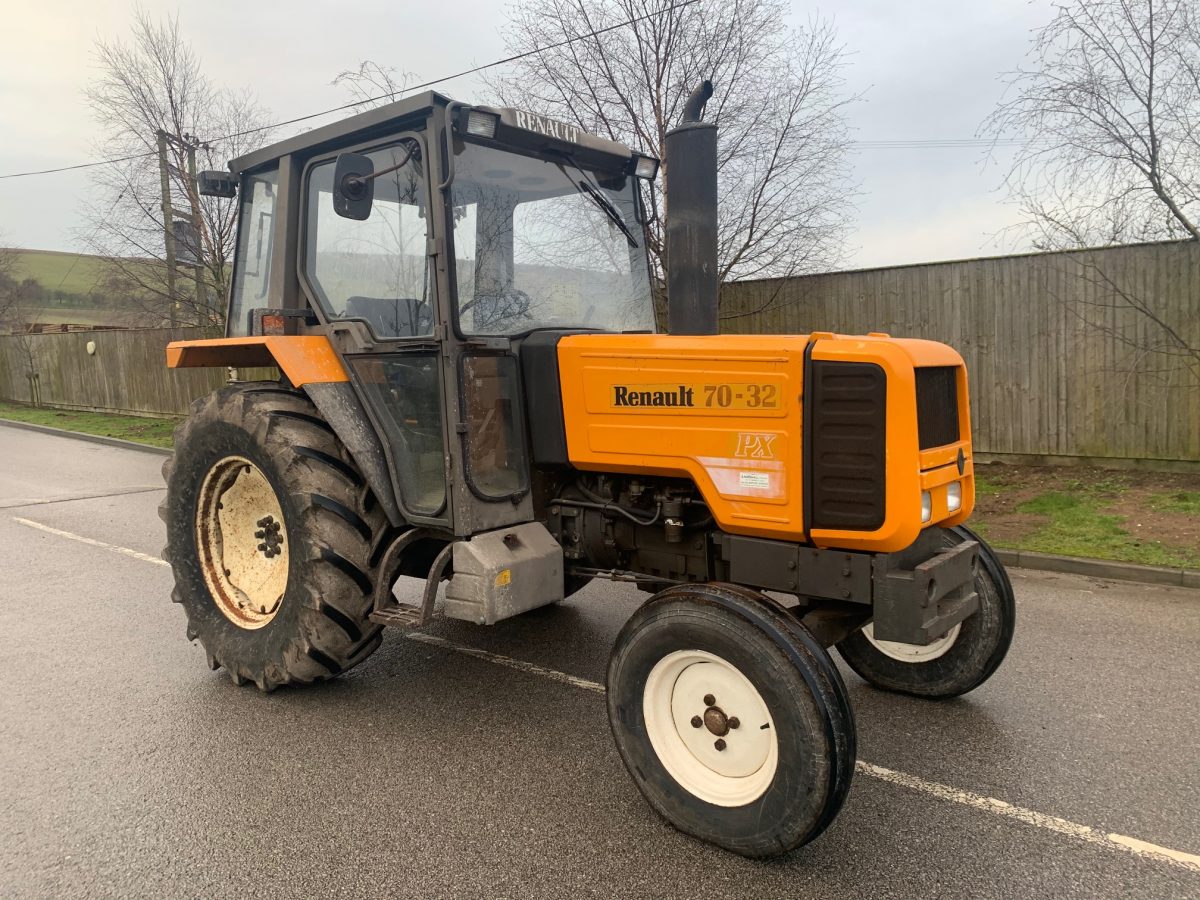

Renault 70-32 PX

Last Updated: June 2024

Overview

The Renault 70-32 PX is a 2WD tractor, identified by its 4x2 chassis configuration. It is powered by a 65 hp Perkins 4-236 diesel engine, with a displacement of 235.8 cubic inches. This tractor's engine has a bore and stroke measurement of 3.874 inches by 5.00 inches and operates at a rated RPM of 2250. It is capable of delivering a torque of 176.3 lb-ft at 1400 RPM. The tractor features a hydrostatic power steering system and a 12-speed transmission, offering the same number of forward and reverse gears. The wheelbase measures 93.3 inches and the tractor has an operating weight of 6,395 lbs. The dimensions include a length of 154.3 inches and a height of 96.1 inches. Tire sizes for the tractor include 7.50-16 in the front and 16.9-30 for the rear. The tractor's specific capabilities in terms of hydraulics, hitch, and PTO are unknown due to missing data. This tractor appears to be designed with utility and general farming tasks in mind, fitting the requirements for a range of agricultural applications.
Show more...

Key Specifications

Power Output: 65

Drive Type: 2WD

Operating Weight: 6395

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Perkins
Model
4-236
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
235.8
Bore (in)
3.874
Stroke (in)
5
Rated RPM
2250
Power Output (hp)
65

Transmission

Type
-
Forward Gears
12
Reverse Gears
12
Total Gears
24

Dimensions

Length (in)
154.3
Width (in)
-
Height (in)
96.1
Operating Weight (lb)
6395

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
