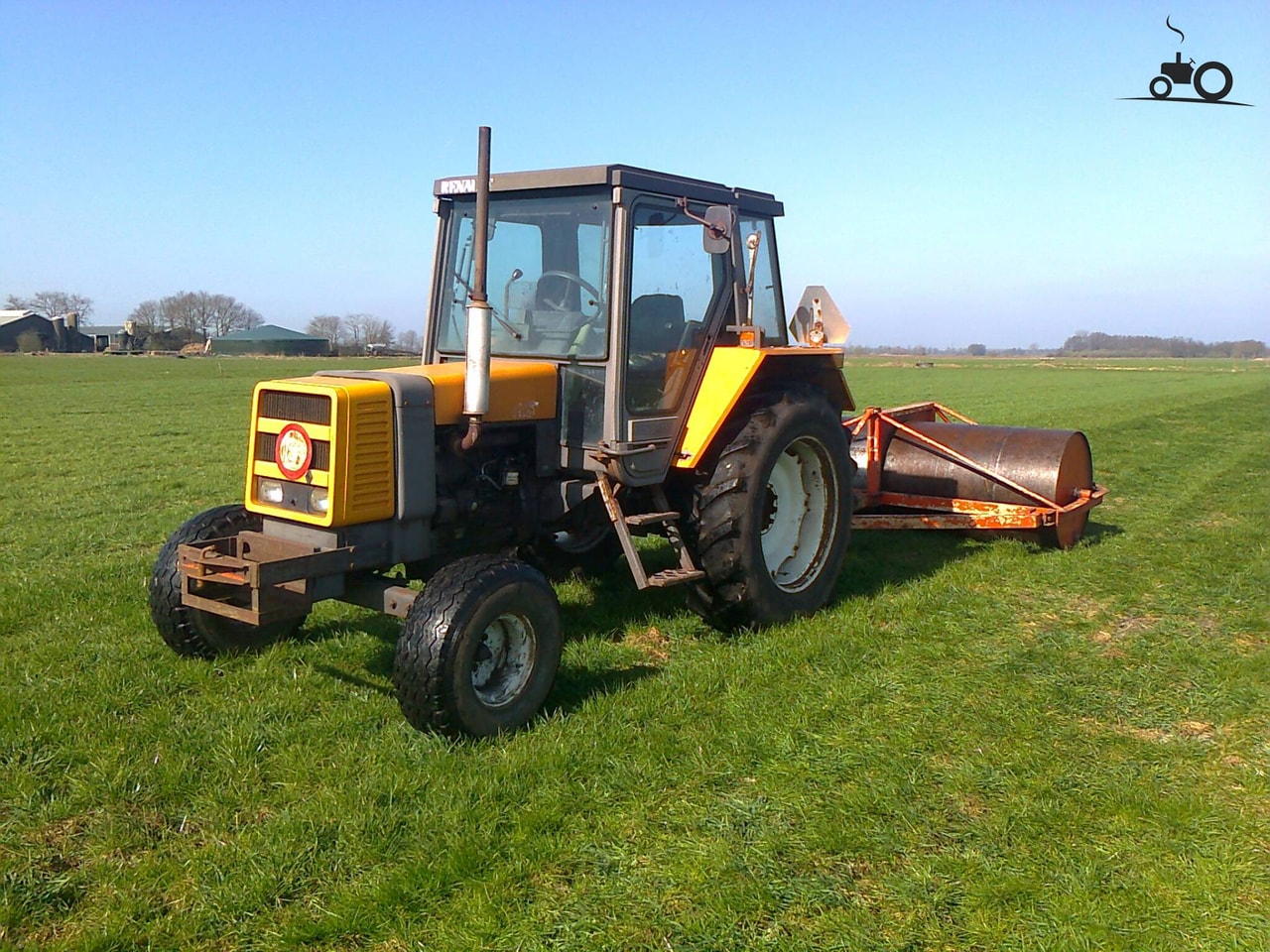

Renault 68-12 RS

Last Updated: June 2024

Overview

The Renault 68-12 RS is a 2WD tractor, characterized by its 4x2 chassis and hydrostatic power steering. This tractor is equipped with a 68 horsepower diesel engine, manufactured by MWM, model D227-4 with a displacement of 230.0 ci. It features a manual 12-speed transmission, providing an equal number of forward and reverse gears. The engine is rated for 2350 RPM and delivers substantial torque at 1500 RPM. With a wheelbase of 94.1 inches and operating weight of 6,703 lbs, the Renault 68-12 RS is designed for a variety of agricultural tasks. The tractor's dimensions reflect a height of 100.8 inches and length of 157.9 inches, offering stability and comfort in different operations. While not all specifications are known, the tractor's sturdiness and engine performance mark it as a capable machine for farming applications.
Show more...

Key Specifications

Power Output: 68

Transmission: Manual

Drive Type: 2WD

Operating Weight: 6,703

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
MWM
Model
D227-4
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
230
Bore (in)
3.875
Stroke (in)
4.724
Rated RPM
2350
Power Output (hp)
68

Transmission

Type
Manual
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
157.9
Width (in)
-
Height (in)
100.8
Operating Weight (lb)
6,703

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (Agricultural)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
