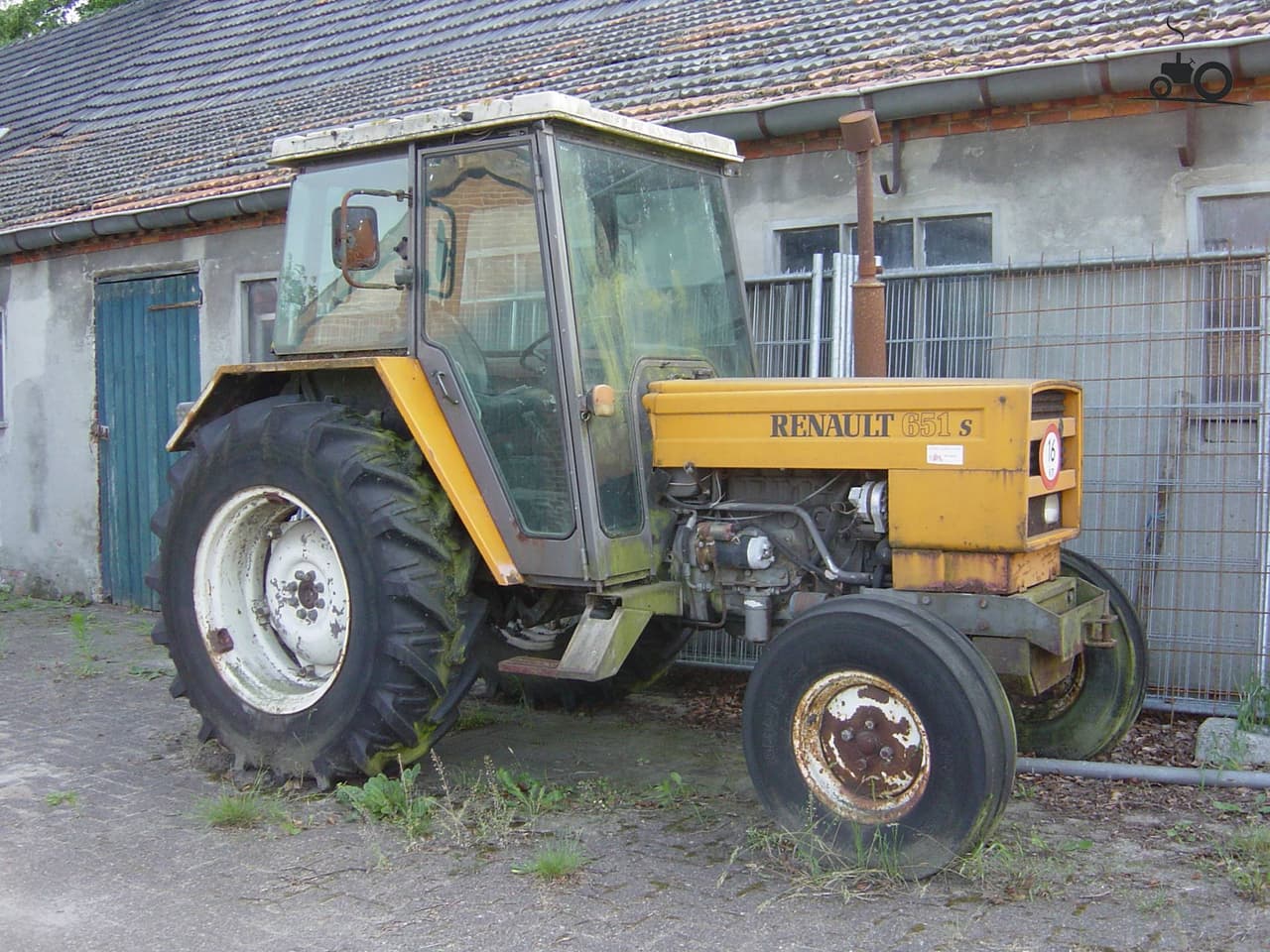

Renault 651S

Last Updated: June 2024

Overview

The Renault 651S is a utility tractor known for its robust construction and suitability for a variety of agricultural tasks. It is equipped with a 65 horsepower (48.5 kW) MWM D227-4 diesel engine which is liquid-cooled, with a displacement of 230 cubic inches. The bore and stroke measurements are 3.875 and 4.724 inches, respectively. The tractor operates with a 12-speed mechanical shuttle transmission and has a power steering system for ease of maneuverability. It features a two-wheel drive (2WD) chassis and comes with standard agricultural tires. The tractor's dimensions vary slightly between the 2WD and 4WD versions, with the length being 142.1 inches for the 2WD model and 149.6 inches for the 4WD variant. This Renault tractor offers open-center hydraulics and comes with options for operator station types, including both ROPS and a cab configuration, ensuring operator safety and comfort during operation.
Show more...

Key Specifications

Category: Utility

Power Output: 65

Transmission: Mechanical shuttle

Drive Type: 2WD

Operating Weight: 5203 2WD without cab / 5941 2WD with cab / 6261 4WD without cab / 7000 4WD with cab

Fuel Type: Diesel

Renault 651S vs. Similar Tractors

Power Output
Average
Greater than 61% of similar tractors.
Operating Weight
Excellent
Greater than 100% of similar tractors.

Technical Specifications

Engine

Manufacturer
MWM
Model
D227-4
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
230
Bore (in)
3.875
Stroke (in)
4.724
Rated RPM
2350
Power Output (hp)
65

Transmission

Type
Mechanical shuttle
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
142.1 2WD / 149.6 4WD
Width (in)
72.1
Height (in)
63.4 steering wheel / 94.9 cab
Operating Weight (lb)
5203 2WD without cab / 5941 2WD with cab / 6261 4WD without cab / 7000 4WD with cab

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
ROPS / Cab
Starter Type
12 volts
Brake Type
-
Hydraulic System Type
Open center
