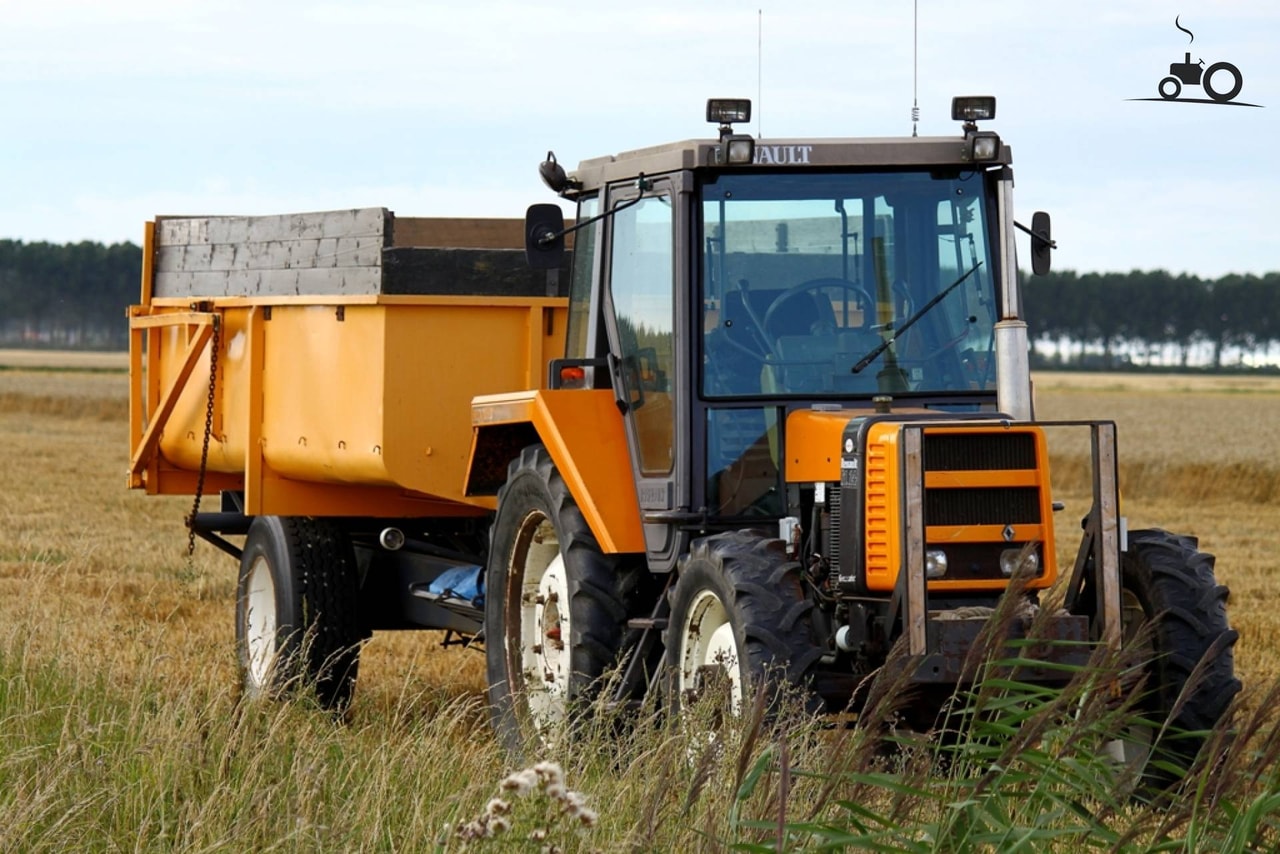

Renault 61-14 RS

Last Updated: June 2024

Overview

The Renault 61-14 RS is a tractor with a strong presence in the field, featuring a 4WD (four-wheel drive) chassis and a 60 hp diesel engine produced by MWM, model D226-3. The engine's power is supported by a displacement of 190.2 cubic inches, and it operates efficiently at a rated RPM of 2350. Important performance characteristics such as the bore and stroke measure at 4.134 inches and 4.724 inches, respectively. Hydrostatic power steering ensures that maneuvering the tractor is manageable and precise. The 12-speed manual transmission provides a robust range of gears for various operational requirements. The tractor's wheelbase is a stable 88.2 inches, which, along with the front and rear tire specifications of 11.2-24 and 16.9-28 inches respectively, contribute to the vehicle's solid footing and traction. With an operating weight of 7,387 lbs and a height of 99.2 inches, the Renault 61-14 RS is both sturdy and significant in stature. Its length stretches to 148 inches. This tractor is a practical workhorse suitable for a variety of tasks in the agricultural sector.
Show more...

Key Specifications

Power Output: 60

Transmission: Manual

Drive Type: 4WD

Operating Weight: 7387

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
MWM
Model
D226-3
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
190.2
Bore (in)
4.134
Stroke (in)
4.724
Rated RPM
2350
Power Output (hp)
60

Transmission

Type
Manual
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
148
Width (in)
-
Height (in)
99.2
Operating Weight (lb)
7387

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
24
Front Tire Width (in)
11.2
Rear Tire Diameter (in)
28
Rear Tire Width (in)
16.9
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
