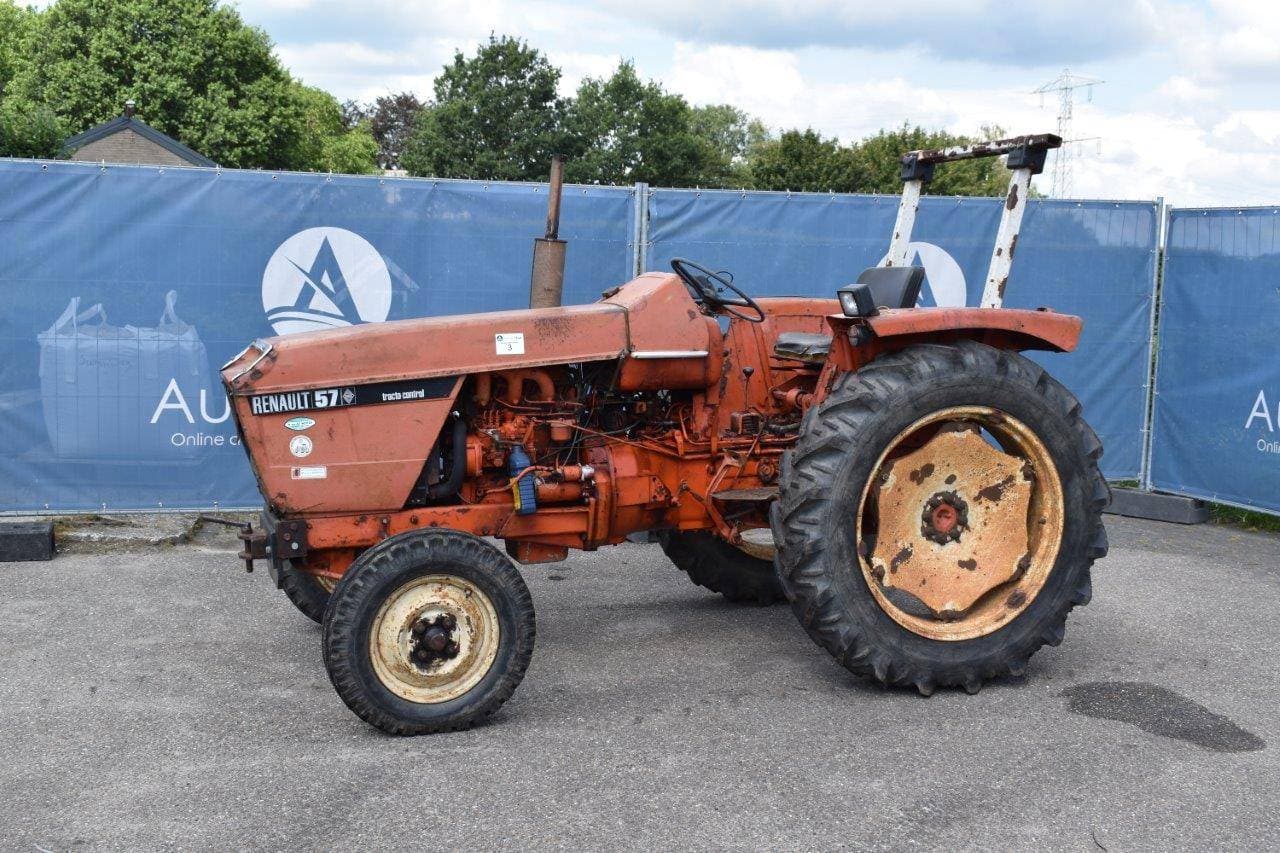

Renault 57

Last Updated: June 2024

Overview

The Renault 57 is a utility tractor best suited for general farm and agriculture use. With a 43 horsepower (32.1 kW) diesel engine, this tractor offers sufficient power for a variety of tasks. The liquid-cooled 3-cylinder Renault-Alfa 714 engine provides reliable performance with a displacement of 151.8 cubic inches (2.5 L). It has a manual steering system and a 10-speed manual transmission, which includes 10 forward gears and 2 reverse gears. The 57 model has a chassis configuration of 4x2 2WD which, combined with its manual transmission, makes it adept at maneuvering in different farm settings. Operating at a rated RPM of 2150, the tractor ensures operational efficiency. The tractor's dimensions, with a length of 128 inches, a width of 59.1 inches, and a steering wheel height of 61 inches, ensure it has a balanced footprint, suitable for various agricultural operations. Rolling on 6.00-16 front tires and 12.4-32 rear tires, it carries a weight of 3968 lbs and is configured to handle a maximum weight of 5512 lbs. Additional specifications such as the PTO type, hitch capabilities, and operator station type are not provided in the data.
Show more...

Key Specifications

Category: Utility

Power Output: 43

Transmission: Manual

Drive Type: 2WD

Operating Weight: 3968

Fuel Type: Diesel

Renault 57 vs. Similar Tractors

Power Output
Average
Greater than 40% of similar tractors.
Operating Weight
Average
Greater than 36% of similar tractors.

Technical Specifications

Engine

Manufacturer
Renault
Model
Renault-Alfa 714
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement (ci)
151.8
Bore (in)
3.86
Stroke (in)
4.33
Rated RPM
2150
Power Output (hp)
43

Transmission

Type
Manual
Forward Gears
10
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
128
Width (in)
59.1
Height (in)
61 (steering wheel height)
Operating Weight (lb)
3968

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
10.6
Front Tire Diameter (in)
16
Front Tire Width (in)
6
Rear Tire Diameter (in)
32
Rear Tire Width (in)
12.4
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
