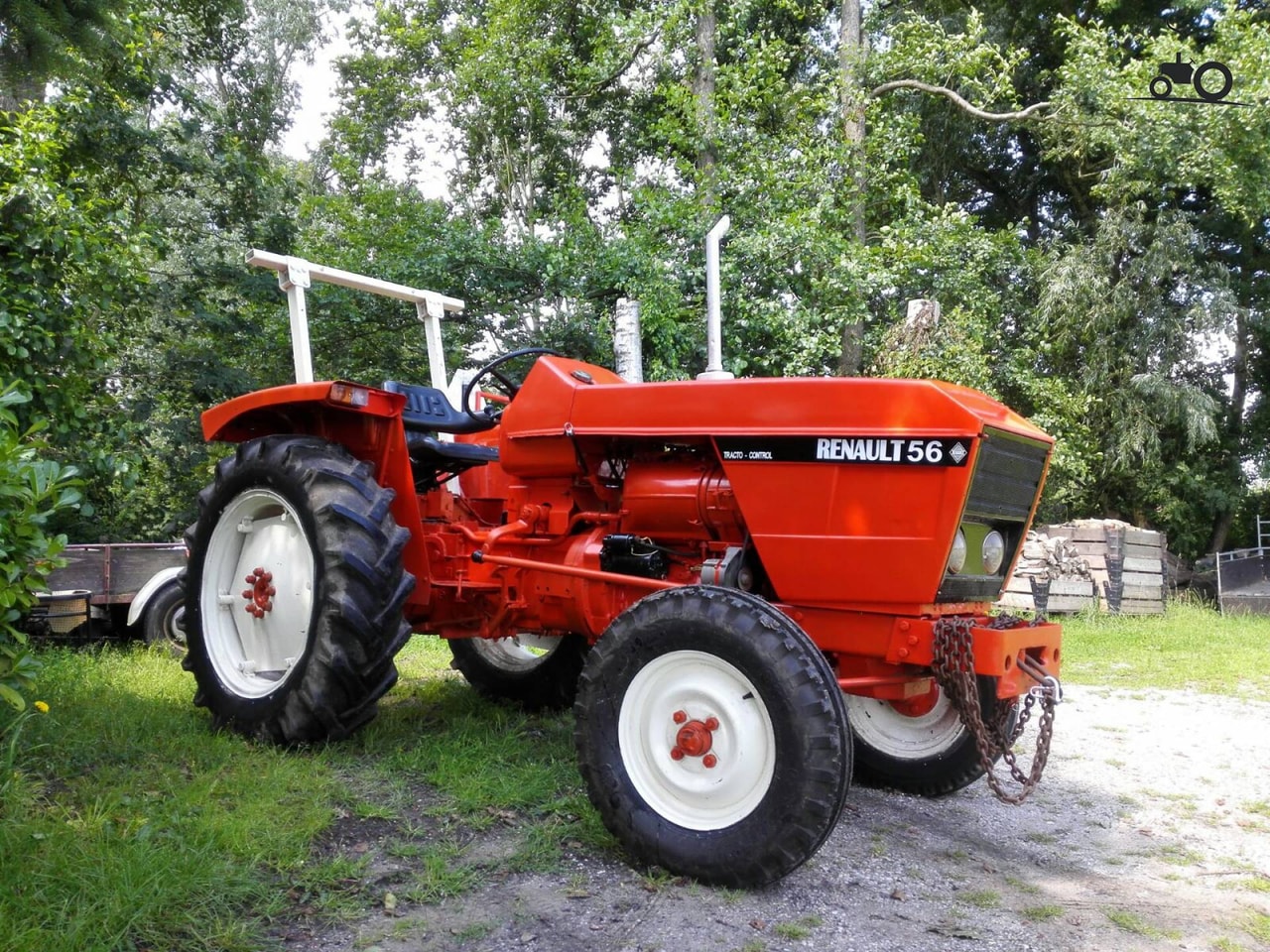

Renault 56

Last Updated: June 2024

Overview

The Renault 56 is a utility tractor that offers a mechanical steering system and a manual 10-speed transmission with 10 forward and 2 reverse gears. It comes equipped with a 2WD (4x2) chassis and is powered by an MWM D325-3 three-cylinder engine, with a displacement of 155.7 cubic inches, generating 43 hp at 2150 rated RPM. The model sits on a 74.8-inch wheelbase and features agricultural tires, with the front tire size at 6.00-16 and the rear tire size at 12.4-32. It has a notable height of 96.9 inches, a length of 139.0 inches, and an operating weight of 4,653 lbs. Specific details about the cooling system, hitch type, PTO, and additional features such as the hydraulic system are not provided within the data. This tractor would serve well in a variety of farming or land management tasks where a sturdy and reliable tractor is required.
Show more...

Key Specifications

Category: Utility

Power Output: 43

Transmission: Manual

Drive Type: 2WD

Operating Weight: 4,653

Renault 56 vs. Similar Tractors

Power Output
Average
Greater than 40% of similar tractors.
Operating Weight
Poor
Greater than 2% of similar tractors.

Technical Specifications

Engine

Manufacturer
MWM
Model
D325-3
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
-
Induction Type
-
Cylinders
3
Displacement (ci)
155.7
Bore (in)
3.74
Stroke (in)
4.724
Rated RPM
2150
Power Output (hp)
43

Transmission

Type
Manual
Forward Gears
10
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
139
Width (in)
-
Height (in)
96.9
Operating Weight (lb)
4,653

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
Mechanical
Coolant Capacity (qts)
-
Front Tire Diameter (in)
16
Front Tire Width (in)
6
Rear Tire Diameter (in)
32
Rear Tire Width (in)
12.4
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
