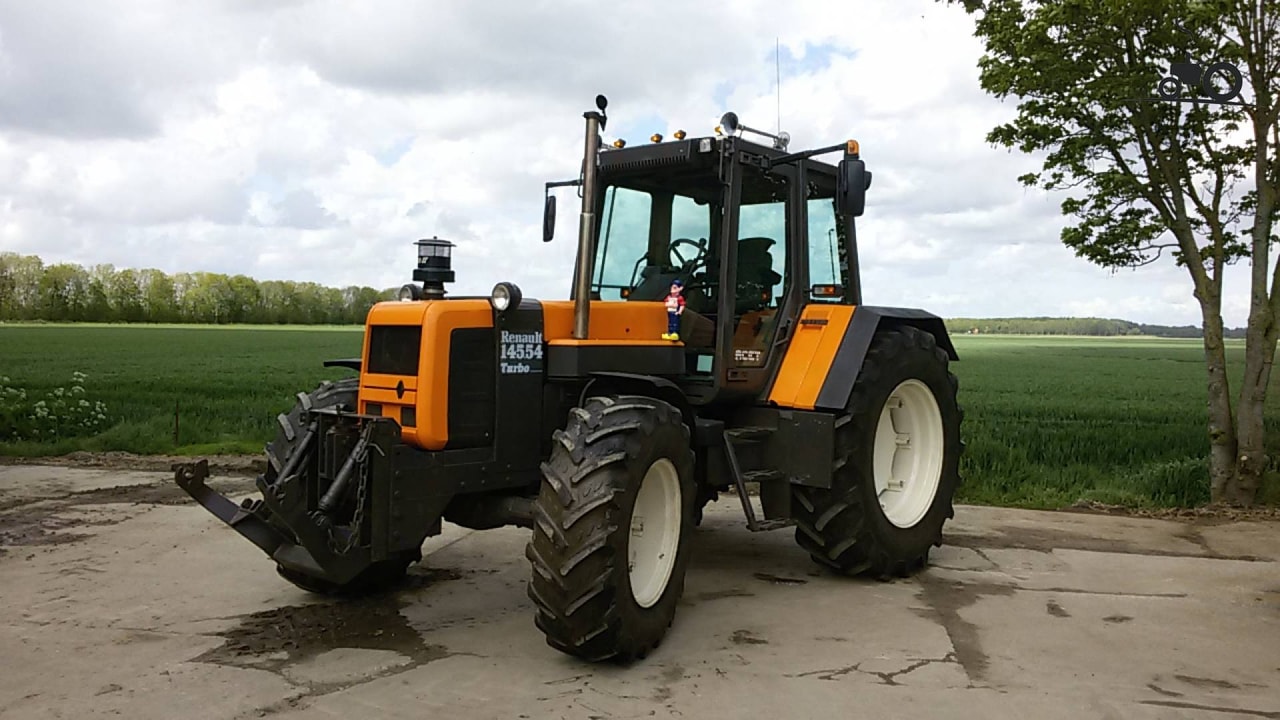

Renault 145-54

Last Updated: June 2024

Overview

The Renault 145-54 is a row-crop tractor that comes with a robust diesel engine. It has a 4-wheel drive MFWD 4WD chassis, useful for various farming tasks that require superior traction and power. The power steering feature facilitates easier handling and maneuverability across different terrains or during lengthy operations. This model is powered by a turbocharged, liquid-cooled, six-cylinder MWM engine, model TD228-6, with a displacement of 380.4 cubic inches and a bore and stroke of 4.134 by 4.724 inches, respectively. The tractor delivers a power output of 135 horsepower at a rated RPM of 2350 and a torque of 351.1 lb-ft at 1500 RPM. The manual transmission has a total of 24 gears, providing versatility and control. The length of the tractor is 181.1 inches, with a height of 118.9 inches, and it operates at a weight of 12,403 lbs. The tractor is equipped with ag tires, with the front tires measuring 16.9 inches in width and 28 inches in diameter, and the rear tires being 18.4 inches wide with a 38-inch diameter. The tractor's overall dimensions and capabilities make it well-suited for various crop farming applications.
Show more...

Key Specifications

Category: Row Crop

Power Output: 135

Transmission: Manual

Drive Type: 4WD

Operating Weight: 12403

Fuel Type: Diesel

Renault 145-54 vs. Similar Tractors

Power Output
Average
Greater than 45% of similar tractors.
Operating Weight
Average
Greater than 48% of similar tractors.

Technical Specifications

Engine

Manufacturer
MWM
Model
TD228-6
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
380.4
Bore (in)
4.134
Stroke (in)
4.724
Rated RPM
2350
Power Output (hp)
135

Transmission

Type
Manual
Forward Gears
-
Reverse Gears
-
Total Gears
24

Dimensions

Length (in)
181.1
Width (in)
-
Height (in)
118.9
Operating Weight (lb)
12403

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
28
Front Tire Width (in)
16.9
Rear Tire Diameter (in)
38
Rear Tire Width (in)
18.4
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
