Renault 133-14 TX

Last Updated: June 2024

Overview

The Renault 133-14 TX is a row-crop tractor known for its robust chassis featuring a 4x4 MFWD 4WD drive configuration. Equipped with a powerful MWM D226-6 diesel engine, it has a displacement of 380.4 cubic inches, producing a respectable 120.7 horsepower and a torque rating of 303.9 lb-ft at 1500 rpm. The tractor has a synchronized transmission with the additional functionality of a creeper gear system, resulting in a total of 16 forward and reverse gears, suitable for various agricultural tasks. With a spacious wheelbase of 107.9 inches, it supports a comfortable ride and stable maneuvering. The tractor's operating weight stands at 11,718 lbs, while its maximum allowable weight can reach up to 18,739 lbs. It sports agricultural tires, with front tire specifications of 16.9-28 and rear tire specs of 18.4-38, catering well to row-crop work. The Renault 133-14 TX's power steering, expansive length of 200 inches, and a height of 115 inches signify its substantial presence and capabilities in the field.

Key Specifications

Category: Row Crop

Power Output: 120.7

Transmission: Synchronized (assumed primary) / Creeper (assumed secondary)

Drive Type: 4WD

Operating Weight: 11718

Fuel Type: Diesel

Image Gallery

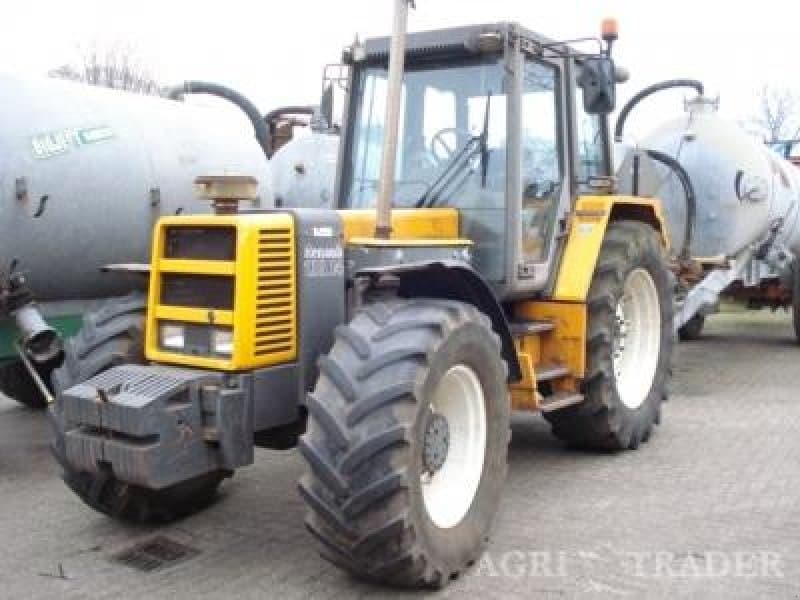

Renault 133-14 TX Tractor

Renault 133-14 TX vs. Similar Tractors

Power Output

Average

Greater than 36% of similar tractors.

Operating Weight

Average

Greater than 44% of similar tractors.

Technical Specifications

Engine

Manufacturer: MWM
Model: D226-6
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally aspirated (assumed from absence of turbo/supercharger indication)
Cylinders: 6
Displacement (ci): 380.4
Bore (in): 4.134
Stroke (in): 4.724
Rated RPM: 2350
Power Output (hp): 120.7

Transmission

Type: Synchronized (assumed primary) / Creeper (assumed secondary)
Forward Gears: 16 (assuming creeper gears are included)
Reverse Gears: 16 (assuming creeper gears are included)
Total Gears: -

Dimensions

Length (in): 200
Width (in): 80.9
Height (in): 115
Operating Weight (lb): 11718

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): 28 (from tire specification 16.9-28)
Front Tire Width (in): 16.9 (from tire specification 16.9-28)
Rear Tire Diameter (in): 38 (from tire specification 18.4-38)
Rear Tire Width (in): 18.4 (from tire specification 18.4-38)
Front/Rear Rim Diameter (in): -
Tire Type: Ag (Agricultural)
Manufacture - End Year: -
Hitch Type: Category II
Hitch Category: Category 3
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: 12 volts (assuming electric starter)
Brake Type: -
Hydraulic System Type: -
