Renault 120-14

Last Updated: June 2024

Overview

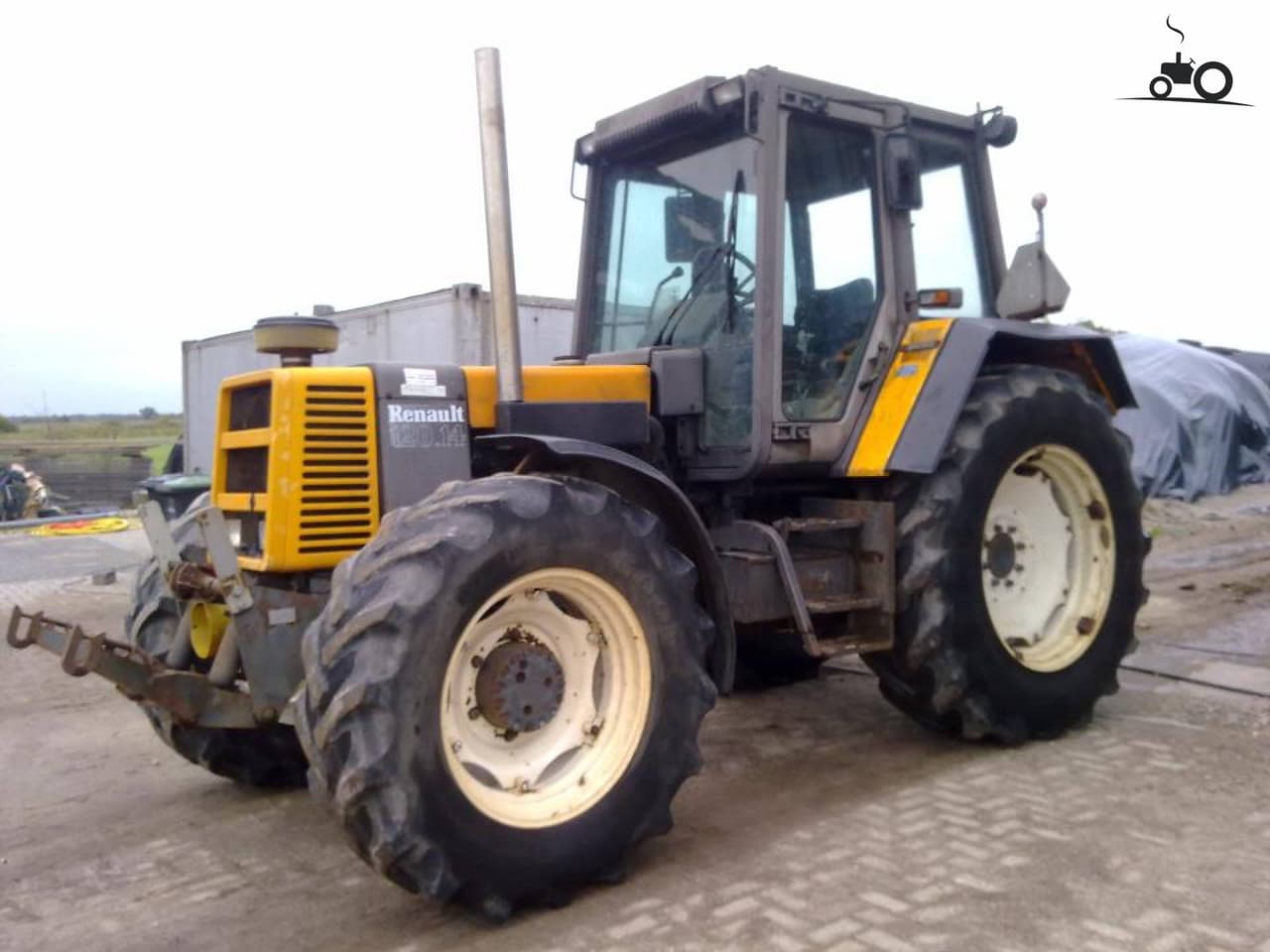

The Renault 120-14 tractor is a four-wheel-drive machine designed to deliver dependable power and performance for a wide range of agricultural applications. Equipped with a reliable MWM D226-6 diesel engine, it is capable of producing 110 horsepower, allowing it to tackle demanding tasks with ease. The engine's displacement is a robust 380.4 cubic inches, with a bore and stroke measuring 3.875 by 4.724 inches respectively and a rated RPM of 2350. Torque at its peak is 298.7 lb-ft at 1500 RPM. The chassis supports this power with a 4x4 MFWD 4WD layout, and maneuvering is facilitated by hydrostatic power steering. The tractor has a substantial length of 200 inches, a height of 117.7 inches, and an operating weight of 11,720 pounds, making it well-suited for larger scale farming operations. The transmission supports a 16-speed configuration, providing flexibility and control for various tasks. Furthermore, the tractor rides on Ag tires, but the specific diameters and widths are not provided in the data available. Overall, the Renault 120-14 is built to offer robust performance and utility in the agricultural sector.
Show more...

Key Specifications

Power Output: 110

Transmission: 16-speed

Drive Type: 4WD

Operating Weight: 11,720

Fuel Type: diesel

Technical Specifications

Engine

Manufacturer
MWM
Model
D226-6
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
diesel
Induction Type
-
Cylinders
6
Displacement (ci)
380.4
Bore (in)
3.875
Stroke (in)
4.724
Rated RPM
2350
Power Output (hp)
110

Transmission

Type
16-speed
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
200
Width (in)
-
Height (in)
117.7
Operating Weight (lb)
11,720

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
