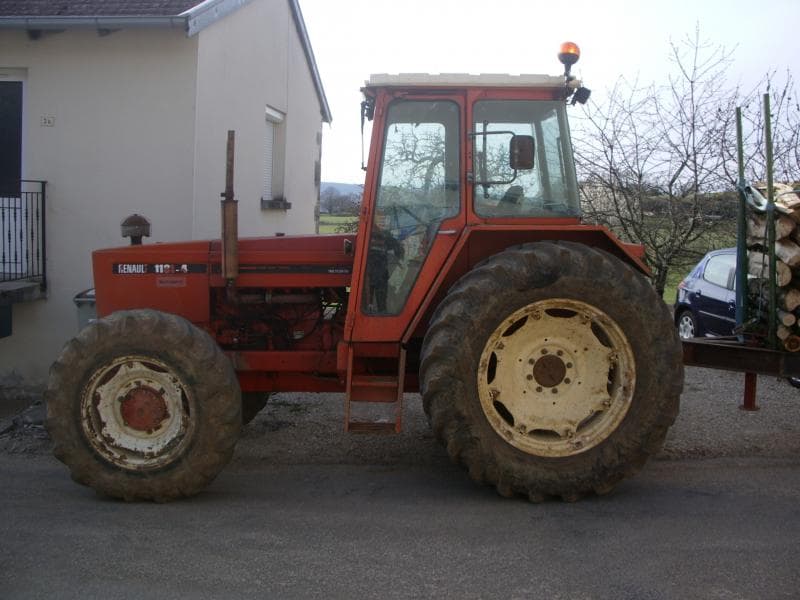

Renault 1181S

Last Updated: June 2024

Overview

The Renault 1181S is a robust, four-wheel drive (4WD) tractor with a 4x4 MFWD chassis. It is powered by a 6-cylinder MWM D226-6 diesel engine, which provides a power output of 118 hp and a torque of 295.0 lb-ft at 1500 RPM. It comes with a hydrostatic power steering system, ensuring easy maneuverability. The 1181S features a 12-speed transmission, offering the same number of speeds in both forward and reverse directions. It has a wheelbase of 105.5 inches, contributing to stability, and it measures 176.4 inches in length and 107.9 inches in height. This tractor operates at a weight of 11,885 lbs and is outfitted with agricultural tires—14.9 inches wide at the front and 16.9 inches at the rear. The engine's displacement is 380.4 cubic inches, with a bore and stroke of 4.134x4.724 inches, respectively. It operates efficiently at a rated RPM of 2350. The specifics about the tractor's transmission type, hitch system, and hydraulic details, among other features, remain unspecified, providing a reliable basis for a variety of agricultural tasks.
Show more...

Key Specifications

Power Output: 118

Drive Type: 4WD

Operating Weight: 11885

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
MWM
Model
D226-6
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
6
Displacement (ci)
380.4
Bore (in)
4.134
Stroke (in)
4.724
Rated RPM
2350
Power Output (hp)
118

Transmission

Type
-
Forward Gears
12
Reverse Gears
12
Total Gears
24

Dimensions

Length (in)
176.4
Width (in)
-
Height (in)
107.9
Operating Weight (lb)
11885

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
28
Front Tire Width (in)
14.9
Rear Tire Diameter (in)
38
Rear Tire Width (in)
16.9
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
