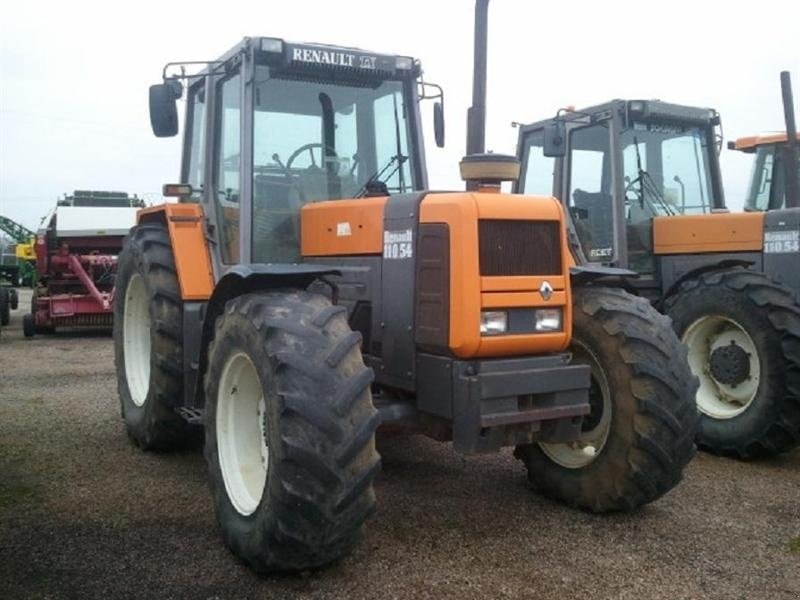

Renault 110-54

Last Updated: June 2024

Overview

The Renault 110-54 tractor is equipped with a robust 4WD chassis and hydrostatic power steering that ensure reliable handling across various terrains. It boasts a powerful MWM D226-6 six-cylinder engine with a displacement of 380.4 cubic inches, which delivers 100 horsepower and operates at a rated RPM of 2350. The transmission provides 24 forward and 8 reverse gears, indicating versatility in operating speeds and efficiency in various agricultural tasks. Its considerable operating weight of 11,895 lbs, along with the standard front and rear tires size of 14.9-28 and 16.9-38 inches respectively, lend the tractor substantial stability and traction. With a wheelbase of 107.9 inches and a length of 181.1 inches, this model presents as a substantial equipment piece designed for demanding work. The tractor's exact category, as well as specifics about its beginning and end of manufacture, hitch types, operator station, and other detailed features, remain unspecified in the provided data.
Show more...

Key Specifications

Power Output: 100

Drive Type: 4WD

Operating Weight: 11,895

Technical Specifications

Engine

Manufacturer
MWM
Model
D226-6
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
-
Induction Type
-
Cylinders
6
Displacement (ci)
380.4
Bore (in)
3.937
Stroke (in)
4.724
Rated RPM
2350
Power Output (hp)
100

Transmission

Type
-
Forward Gears
24
Reverse Gears
8
Total Gears
32

Dimensions

Length (in)
181.1
Width (in)
-
Height (in)
114.2
Operating Weight (lb)
11,895

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
28
Front Tire Width (in)
14.9
Rear Tire Diameter (in)
38
Rear Tire Width (in)
16.9
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
