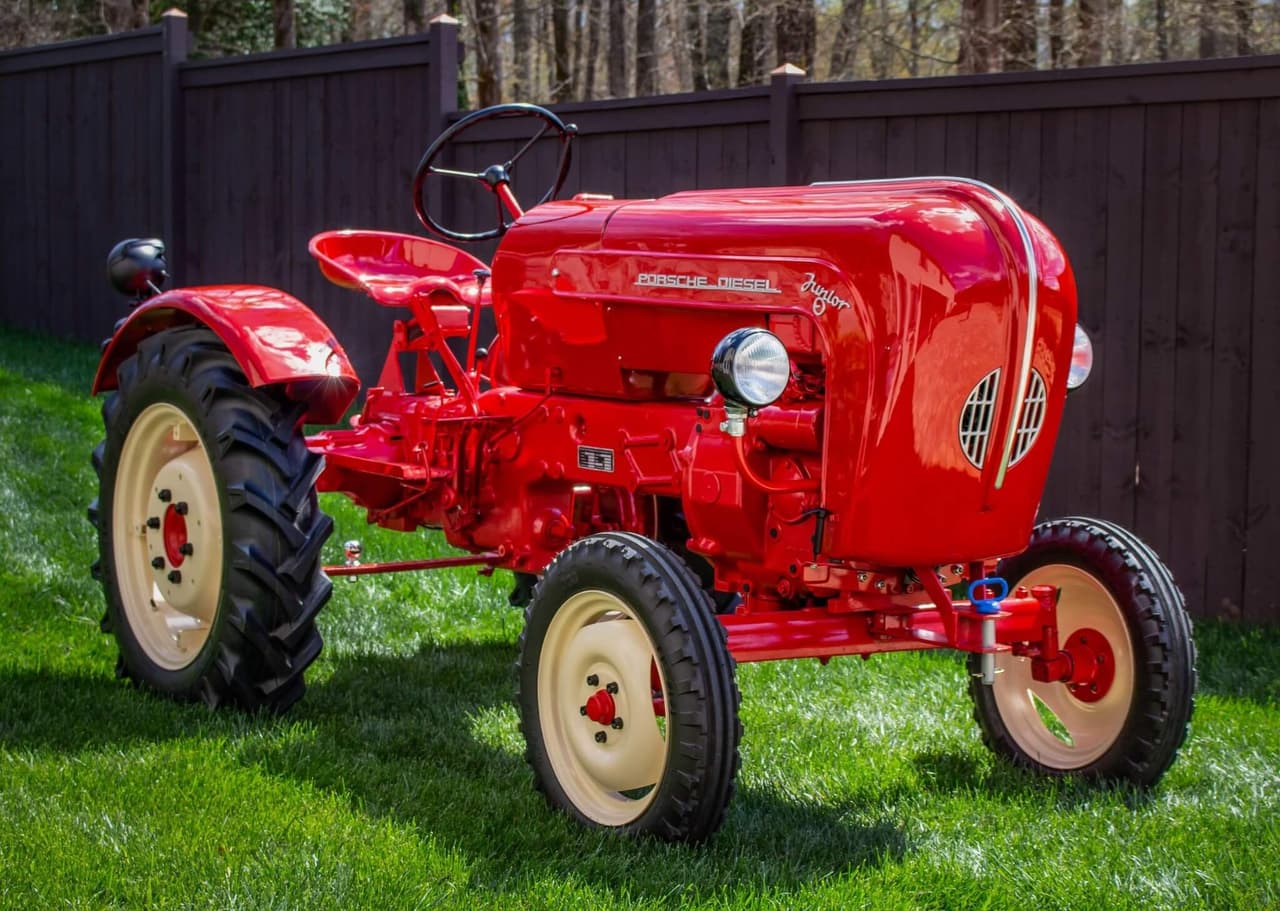

Porsche Junior

Last Updated: June 2024

Overview

The Porsche Junior is a tractor produced with a focus on utility and practicality. It features a single-cylinder diesel engine offered in two displacement options: 0.8 liters and 0.9 liters, providing a modest 15 horsepower with a rated RPM of 2250 for agricultural tasks. Equipped with a ZF gearbox with six forward gears and two reverse gears, the Porsche Junior ensures a variety of speeds suitable for numerous farming applications. The dry disc clutch facilitates smooth gear transitions. The tractor is built to last, with a sturdy frame supporting a wheelbase of 71.9 inches and ground clearance of 14.6 inches, allowing operation in a variety of terrains. It features a basic electric starter system, indicating it was designed in an era when electric starters for tractors were becoming standard. The tire configuration supports agricultural use, and the overall dimensions and weight suggest a small to medium-sized workhorse capable of navigating through smaller fields and tight spaces.
Show more...

Key Specifications

Power Output: 15

Transmission: Gear

Operating Weight: 2575

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Porsche
Model
0.8L 1-cyl diesel or 0.9L 1-cyl diesel
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
1
Displacement (ci)
53.4
Bore (in)
3.86
Stroke (in)
4.56
Rated RPM
2250
Power Output (hp)
15

Transmission

Type
Gear
Forward Gears
6
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
112
Width (in)
57.5
Height (in)
60.4
Operating Weight (lb)
2575

Power Take-Off (PTO)

PTO Type
Rear PTO: 540
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
16
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
