Pasquali 409

Last Updated: June 2024

Overview

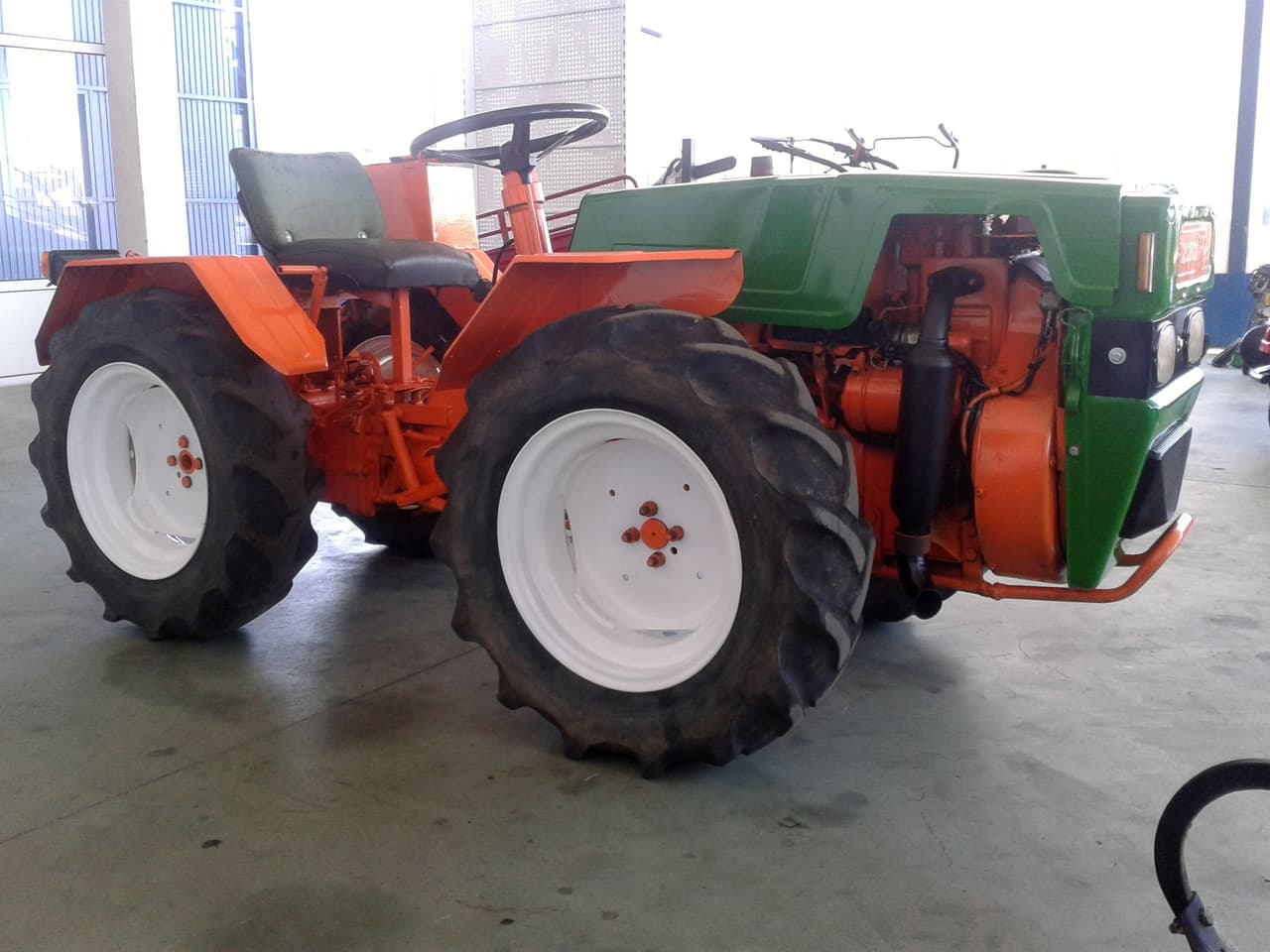

The Pasquali 409 is a utility-type tractor known for its simplicity and efficiency. Designed to serve the purpose of small farm operations, it features a 4x2 chassis configuration, making it a two-wheel-drive tractor suitable for a variety of tasks. The tractor is steered through a Power Steering system, enhancing maneuverability and ease of use. It's equipped with a 9-speed gear transmission that provides ample range for various speeds necessary during different operations. Powering the Pasquali 409 is a modest but reliable air-cooled diesel engine providing 17.4 horsepower, suitable for light to moderate tasks. Its 2-cylinder engine gives it enough power for small plowing, hauling, and towing jobs. This model comes with a wheelbase of 50 inches, providing stability during operation, and its compact physical dimensions make it ideal for working in confined spaces. The tractor's operational weight stands at 1323 lbs, which underscoring its utility in less demanding circumstances.
Show more...

Key Specifications

Category: Utility

Power Output: 17.4

Transmission: Gear

Drive Type: 2WD

Operating Weight: 1323

Fuel Type: Diesel

Pasquali 409 vs. Similar Tractors

Power Output
Poor
Greater than 6% of similar tractors.
Operating Weight
Poor
Greater than 9% of similar tractors.

Technical Specifications

Engine

Manufacturer
-
Model
-
Cooling Type
Air-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
2
Displacement (ci)
48.2
Bore (in)
-
Stroke (in)
-
Rated RPM
-
Power Output (hp)
17.4

Transmission

Type
Gear
Forward Gears
9
Reverse Gears
3
Total Gears
-

Dimensions

Length (in)
92.1
Width (in)
40.6
Height (in)
43.4
Operating Weight (lb)
1323

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
12
Front Tire Width (in)
4
Rear Tire Diameter (in)
16
Rear Tire Width (in)
7.5
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Open
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
