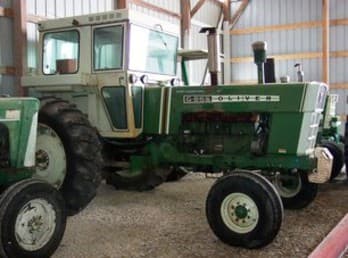

Oliver G955

Last Updated: June 2024

Overview

The Oliver G955 is a robust agricultural tractor known for its significant presence in the field during its production years. It came equipped with an 18-speed three-range power shift transmission that provides a variety of speed options for diverse tasks. The tractor's drivetrain includes a two-wheel drive (2WD) chassis configuration and hydrostatic power steering that contributes to its maneuverability. Housing a Minneapolis-Moline diesel engine, the G955 features a 451 cubic inch, 6-cylinder liquid-cooled engine, with a bore and stroke of 4.375 by 5.00 inches and a compression ratio of 15.4:1. It was capable of reaching 1800 rated RPMs. The diesel engine starts on a 12-volt electric system. The front and rear tread of the G955 could be adjusted from 61 to 85 inches and 61 to 95 inches, respectively, allowing for versatility in row spacing. The tractor runs on Ag front and rear tires sized 10.00-16 and 18.4-38, respectively. Known for its sturdy construction, the G955 has an operating weight of 11,900 lbs. This tractor served many farmers reliably throughout its service life, and it continues to be appreciated by collectors and enthusiasts.
Show more...

Key Specifications

Transmission: Three-range power shift

Drive Type: 2WD

Operating Weight: 11,900

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Minneapolis-Moline
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
6
Displacement (ci)
451
Bore (in)
4.375
Stroke (in)
5
Rated RPM
1800
Power Output (hp)
-

Transmission

Type
Three-range power shift
Forward Gears
18
Reverse Gears
6
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
11,900

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
