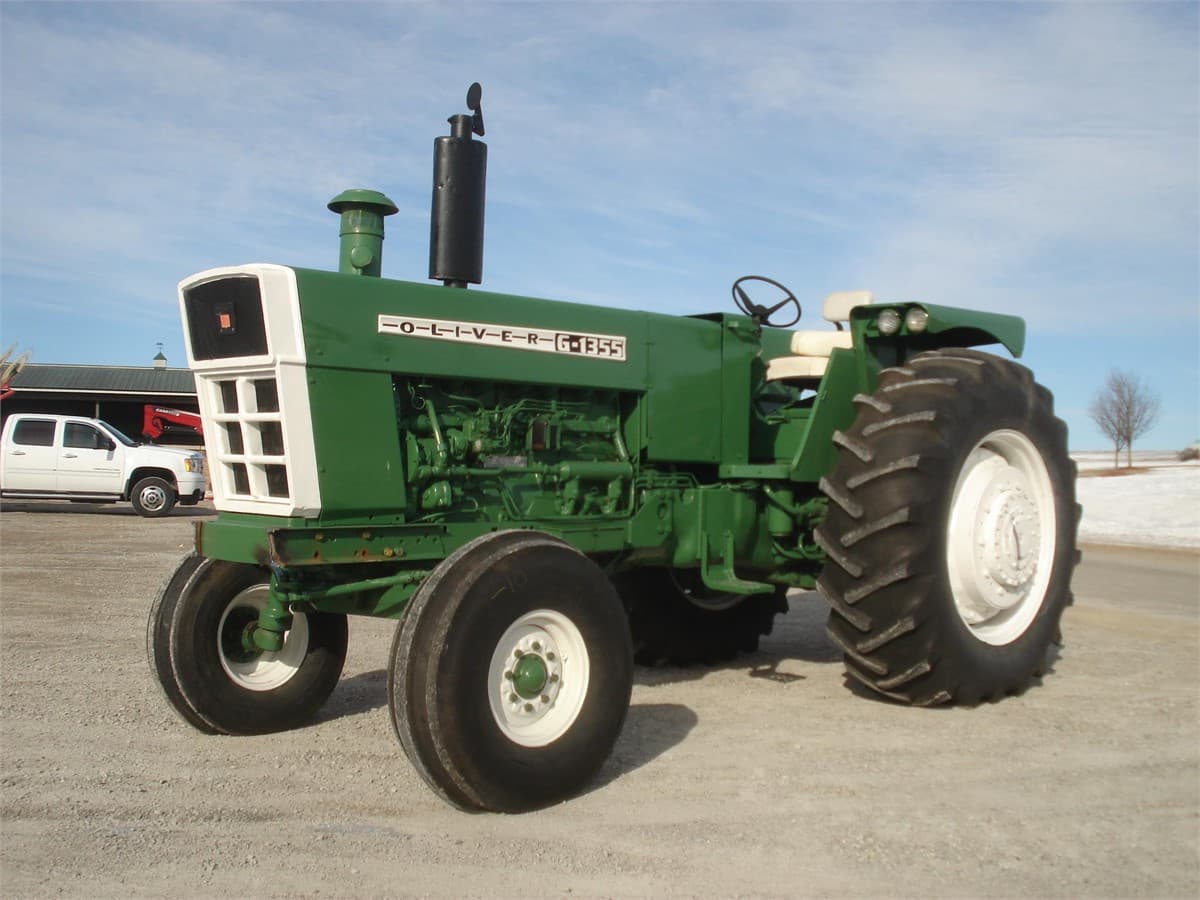

Oliver G1355

Last Updated: June 2024

Overview

The Oliver G1355 is a heavy-duty tractor engineered to meet the demands of large-scale farming operations. It was designed for versatility and strength, featuring a robust Minneapolis-Moline engine available in two variations: a 9.6L 6-cylinder diesel engine and an 8.3L 6-cylinder LP-gas engine. This tractor has a transmission offering six forward and two reverse gears with a dry disc clutch, and an alternative Hydraul-Shift transmission with three-range power shift providing 18 forward and six reverse gears. Designed to perform a wide range of tasks, the G1355 has an imposing weight of 17,100 lbs, capable of accommodating dual rear tires for increased stability and traction. The three-point hitch system supports various attachments, and the use of a closed center hydraulic system caters to the high demands of modern attachments. With a wheelbase of 111 inches, the tractor provides a stable and comfortable ride. The tractor's powerful starter system uses a standard 12-volt battery. Although the manufacture years are not explicitly known, the specifications of the Oliver G1355 indicate a machine built to deliver reliability and performance in challenging farming tasks.
Show more...

Key Specifications

Transmission: Three-range power shift

Operating Weight: 17,100

Fuel Type: Diesel and LP-gas

Technical Specifications

Engine

Manufacturer
Minneapolis-Moline
Model
-
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel and LP-gas
Induction Type
Naturally aspirated
Cylinders
6
Displacement (ci)
585 and 504
Bore (in)
4.75 and 4.625
Stroke (in)
5.50 and 5.00
Rated RPM
2200
Power Output (hp)
-

Transmission

Type
Three-range power shift
Forward Gears
18
Reverse Gears
6
Total Gears
-

Dimensions

Length (in)
183
Width (in)
81.5
Height (in)
99 (height to exhaust)
Operating Weight (lb)
17,100

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
33 and 30
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
Three-Point Hitch (Category III/II)
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
12-volt electric
Brake Type
-
Hydraulic System Type
Closed center
