Oliver 880

Last Updated: July 2024

Overview

The Oliver 880 is a two-wheel drive, row-crop tractor that was produced by Oliver from 1958 to 1963. This model comes with a 4x2 chassis and a six-cylinder gasoline engine with a liquid-cooled inline configuration. It has a constant mesh or Power Booster transmission type with 6 or 12 forward gears and 2 or 4 reverse gears, manual steering, and differential mechanical disc brakes. The engine is rated at 50.77 hp at 1650 rpm and has a maximum torque of 217 lb.-ft. at 1200 rpm. At rated speed, it has a drawbar pull of 5945 lbs at 3.14 mph and a fuel efficiency of 12.28 Hp.hr/gal. At maximum power, the fuel consumption is 4.34 Gal/hr. The Oliver 880 has an open operator station, an independent rear PTO with a speed of 540 rpm, and was available with ag-style tires.

Key Specifications

Category: Row Crop

Power Output: 50.77

Transmission: Constant mesh | Power Booster

Drive Type: 2WD

Operating Weight: 5640

Fuel Type: Gasoline

Image Gallery

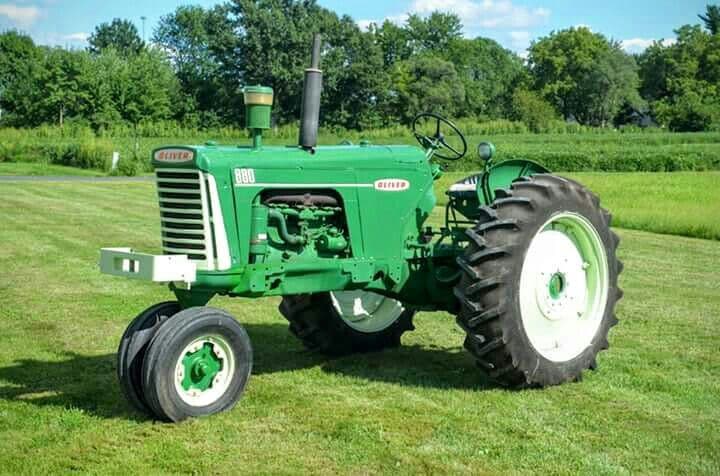

Oliver 880 Tractor

Oliver 880 vs. Similar Tractors

Power Output

Poor

Greater than 6% of similar tractors.

Operating Weight

Below Average

Greater than 22% of similar tractors.

Technical Specifications

Engine

Manufacturer: Waukesha-Oliver
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Gasoline
Induction Type: Naturally aspirated
Cylinders: 6
Displacement (ci): 265.1
Bore (in): 3.75
Stroke (in): 4
Rated RPM: 1650
Power Output (hp): 50.77

Transmission

Type: Constant mesh | Power Booster
Forward Gears: 6 | 12
Reverse Gears: 2 | 4
Total Gears: -

Dimensions

Length (in): 144
Width (in): 92
Height (in): -
Operating Weight (lb): 5640

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): 18
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 1963
Hitch Type: III/II
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: Open
Starter Type: Electric
Brake Type: Differential mechanical disc
Hydraulic System Type: -

Test Results

Nebraska Tractor Test Laboratory - Test Date: April 21, 1958

Maximum Power and Fuel Consumption

Maximum Power: 50.77 HP (37.85 kW) at 1650 rpm
Fuel Consumption at Maximum Power: 4.34 Gal/hr (16.42 l/h) with a fuel efficiency of 0.528 lb/hp.hr (0.321 kg/kW.h)

Drawbar Performance

Power at Rated Engine Speed: 45.75 HP (34.13 kW) with a drawbar pull of 5945 lbs (26.46 kN) and a speed of 3.14 mph (5.05 km/h)
Fuel Consumption at Rated Speed: 0.546 lb/hp.hr (0.332 kg/kW.h) with a fuel efficiency of 12.28 Hp.hr/gal (2.42 kW.h/l)

Torque and Engine Performance

Maximum Torque: 217 lb.-ft. (294 Nm) at 1200 rpm
Torque Rise: Not provided

Hydraulic Performance

Maximum Force Exerted: Not provided
Pump Delivery Rate: Not provided
Hydraulic Power: Not provided

Overall Efficiency

Fuel Efficiency at Standard PTO Speed (1000 rpm): Not provided
Fuel Consumption: 4.34 Gal/hr (16.42 l/h) at 1650 rpm

Nebraska Tractor Test Lab. (1958). Test 647: Oliver 880. University of Nebraska-Lincoln. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/534
