Oliver 88

Last Updated: June 2024

Overview

The Oliver 88 is a 2WD row-crop tractor that was produced from 1947 to 1954 in Charles City, Iowa, by Oliver. This model came equipped either with a 3.8 L (231.0 cu in) six-cylinder gasoline engine or a similar displacement diesel engine. Featuring a 4x2 2WD chassis, manual steering, and an open operator station, the Oliver 88 has a gear transmission with 6 forward gears and 2 reverse gears. The tractor also hosts a dry disc clutch, a coolant capacity of 18 quarts, and the potential to operate with independent rear PTO at 540 rpm. The fuel tank capacity is substantial at 83.3 liters (22 US gallons), supporting extended work periods in the field.

Key Specifications

Category: Row Crop

Transmission: Gear with dry disc clutch

Drive Type: 2WD

Operating Weight: 5004

Fuel Type: Gasoline/Diesel

Image Gallery

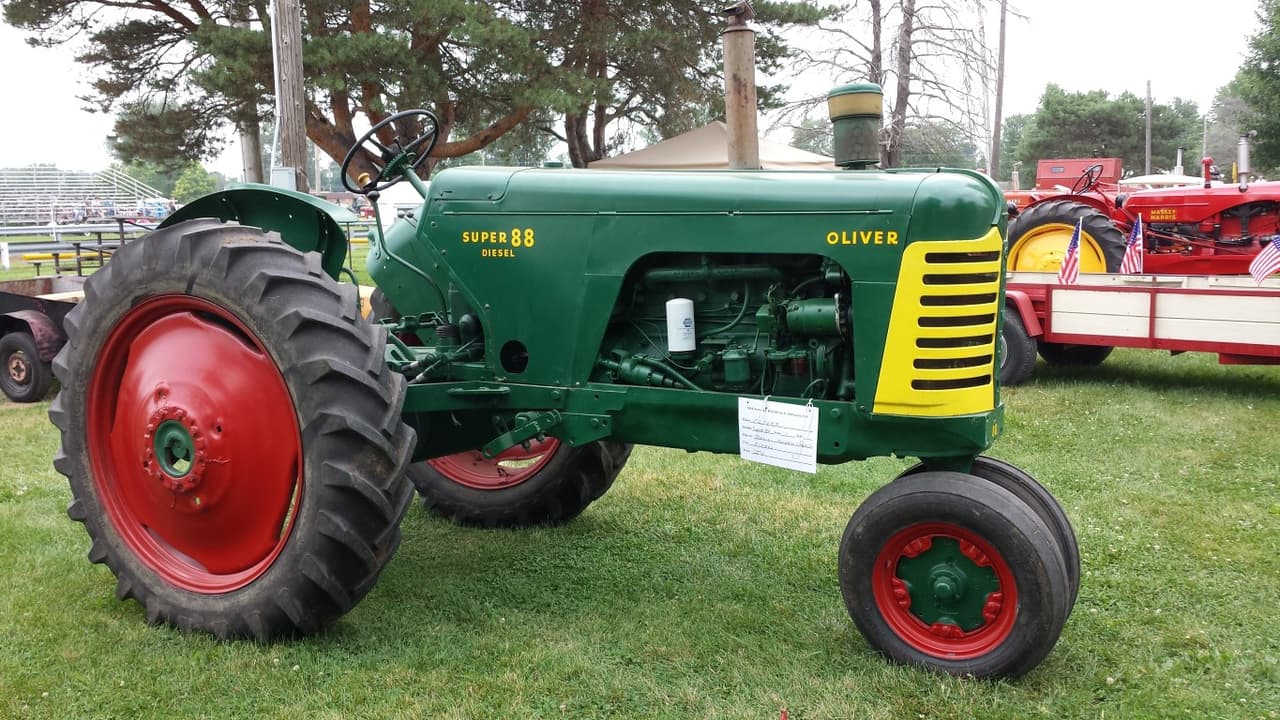

Oliver 88 Tractor

Oliver 88 vs. Similar Tractors

Operating Weight

Below Average

Greater than 21% of similar tractors.

Technical Specifications

Engine

Manufacturer: Waukesha-Oliver
Model: Waukesha-Oliver
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Gasoline/Diesel
Induction Type: Naturally Aspirated
Cylinders: 6
Displacement (ci): 231
Bore (in): 3.5
Stroke (in): 4.02
Rated RPM: -
Power Output (hp): -

Transmission

Type: Gear with dry disc clutch
Forward Gears: 6
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 141.7
Width (in): 67.7
Height (in): 68.9
Operating Weight (lb): 5004

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): 18
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 1954
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Open
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
