Oliver 70

Last Updated: June 2024

Overview

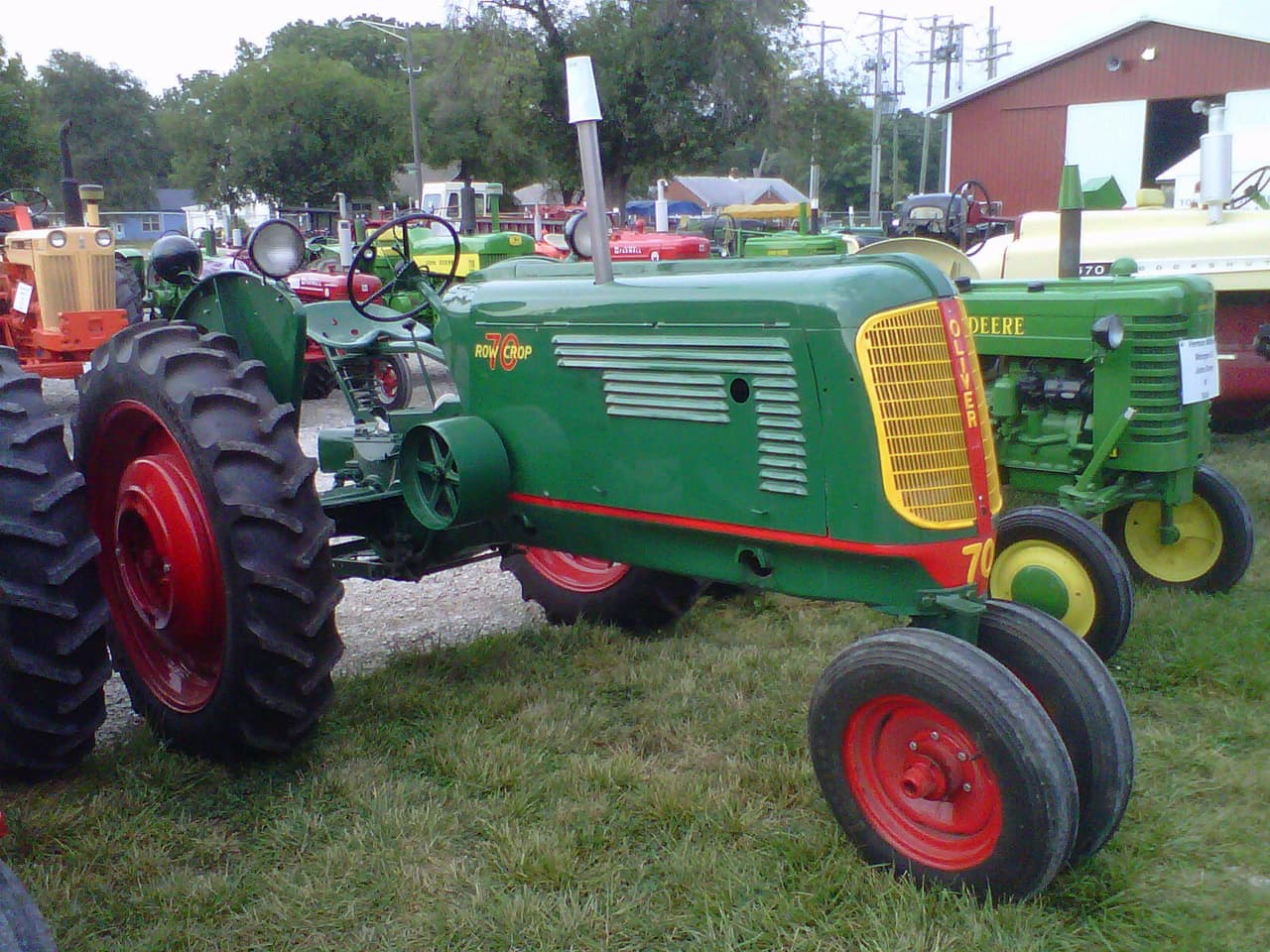

The Oliver 70 is a row-crop tractor that was produced by Oliver between 1935 to 1948. It is characterized by its 4x2 2WD chassis, manual steering, and open operator station. The tractor was outfitted with either a six-cylinder gasoline or diesel engine with a liquid cooling system and a natural aspiration with 201 cubic inches of displacement. Available transmissions included a gear type with either four or six forward gears and a single reverse gear. The front and rear tires were set up for agricultural use, with the front size being 5.50-16 and the rear size not fully specified. The Oliver 70 did not include details such as PTO speeds, hydraulic system type, hitch specifications, or additional features in the provided data. This tractor was designed for a variety of farming tasks during its production era and remains a notable model in the history of Oliver tractors.
Show more...

Key Specifications

Category: Row Crop

Transmission: Gear type

Drive Type: 2WD

Operating Weight: 4400

Fuel Type: Gasoline/Diesel

Oliver 70 vs. Similar Tractors

Operating Weight
Below Average
Greater than 19% of similar tractors.

Technical Specifications

Engine

Manufacturer
Oliver
Model
Oliver
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Gasoline/Diesel
Induction Type
Naturally Aspirated
Cylinders
6
Displacement (ci)
201
Bore (in)
3.11
Stroke (in)
4.37
Rated RPM
1500
Power Output (hp)
-

Transmission

Type
Gear type
Forward Gears
6
Reverse Gears
1
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
4400

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
4.5
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
1948
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Open
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
