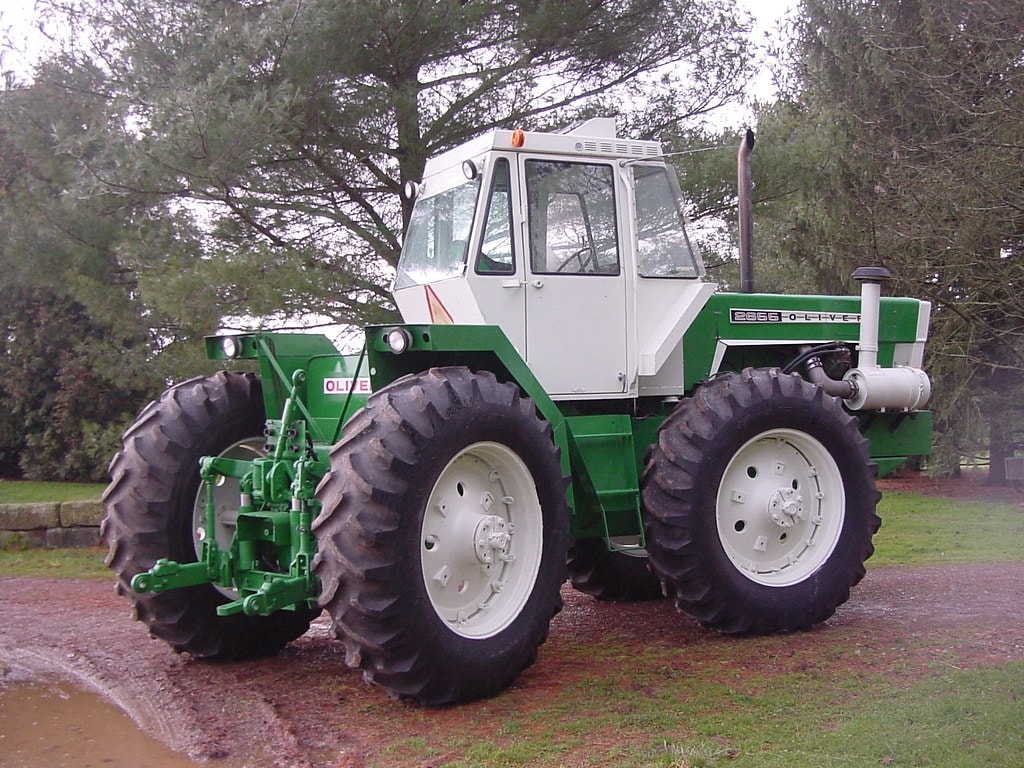

Oliver 2655

Last Updated: June 2024

Overview

The Oliver 2655 is a large, powerful, and versatile articulated 4WD tractor designed to handle a variety of agricultural tasks. Produced from 1971 to 1972, it came equipped with either a 9.6L 6-cyl diesel engine or an 8.3L 6-cyl LP gas engine, both of which offered ample power for demanding applications. This tractor featured a cab as standard for operator comfort and was equipped with hydrostatic power steering for ease of maneuvering. Its robust hydraulic system included an open center design, while dependable hydraulic dry disc brakes ensured optimal control. The 10 forward and 2 reverse transmission setup offered flexibility across different working conditions, and the tractor's large fuel tank allowed for extended operations between refills. With a substantial operating weight of 19850 lbs and a three-point hitch of categories III/II, the Oliver 2655 was well-suited for heavy-duty tasks on large farms or fields.
Show more...

Key Specifications

Power Output: 169

Drive Type: 4WD

Operating Weight: 19850

Fuel Type: Diesel or LP-gas

Technical Specifications

Engine

Manufacturer
Minneapolis-Moline
Model
Minneapolis-Moline 9.6L 6-cyl diesel or Minneapolis-Moline 8.3L 6-cyl LP gas
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel or LP-gas
Induction Type
Naturally aspirated
Cylinders
6
Displacement (ci)
585 or 504
Bore (in)
4.75 or 4.625
Stroke (in)
5.50 or 5.00
Rated RPM
2200
Power Output (hp)
169

Transmission

Type
-
Forward Gears
10
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
234
Width (in)
96
Height (in)
116 (height to exhaust)
Operating Weight (lb)
19850

Power Take-Off (PTO)

PTO Type
Independent rear PTO
PTO Speed 1 (rpm)
1000
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4×4 articulated 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
33 or 30
Front Tire Diameter (in)
34
Front Tire Width (in)
18.4
Rear Tire Diameter (in)
34
Rear Tire Width (in)
18.4
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
1972
Hitch Type
Three-Point Hitch
Hitch Category
III/II
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab (standard)
Starter Type
Electric
Brake Type
Hydraulic dry disc
Hydraulic System Type
Open center
