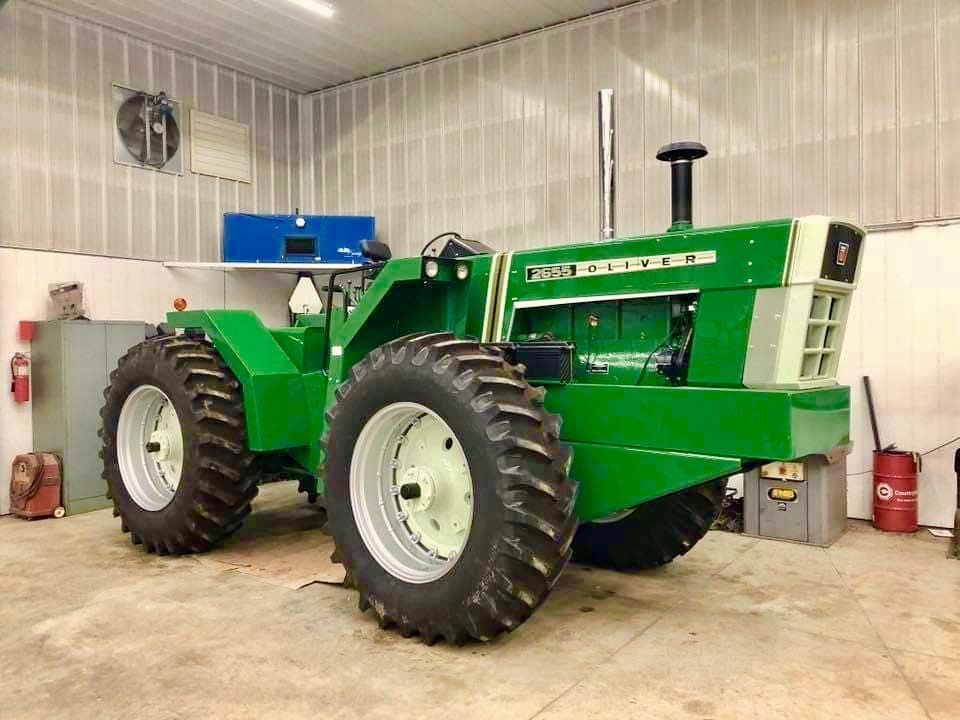

Oliver 2455

Last Updated: June 2024

Overview

The Oliver 2455 tractor is a robust farming machine, highlighted by its large 504 cubic inch, six-cylinder diesel engine produced by Minneapolis-Moline. The engine is liquid-cooled and provides a solid 154 horsepower output, operating efficiently at a rated RPM of 1800. This tractor comes equipped with hydrostatic power steering contributing to better handling and maneuverability. With a hefty operating weight of 17,300 pounds, it has a substantial wheelbase of 120 inches which may contribute to its stability and balance. The tractor has 10 forward gears and 2 reverse gears, which facilitates a wide array of speeds for various tasks. Its large tires are offered in two sizes, 18.4-34 and 23.1-30, which may indicate different configurations for optimal field or crop conditions. The physical dimensions are considerable, measuring 234 inches in length, standing 96 inches wide, and with an exhaust height reaching up to 116 inches. Additional specifications, such as the cooling and oil capacities, are 33 and 13 quarts, respectively, allowing for extended operation periods. Notable is the inclusion of a III/II hitch category, suggesting compatibility with various implements, though specific hitch lifting capacities remain unknown.
Show more...

Key Specifications

Power Output: 154

Operating Weight: 17300

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Minneapolis-Moline
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
6
Displacement (ci)
504
Bore (in)
4.625
Stroke (in)
5
Rated RPM
1800
Power Output (hp)
154

Transmission

Type
-
Forward Gears
10
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
234
Width (in)
96
Height (in)
116 (height to exhaust)
Operating Weight (lb)
17300

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
Hydrostatic power
Coolant Capacity (qts)
33
Front Tire Diameter (in)
34 (both 18.4-34 and 23.1-30 sizes were listed)
Front Tire Width (in)
Various (18.4 and 23.1 for different configurations)
Rear Tire Diameter (in)
34 (both 18.4-34 and 23.1-30 sizes were listed)
Rear Tire Width (in)
Various (18.4 and 23.1 for different configurations)
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
III/II
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric (12 volts)
Brake Type
-
Hydraulic System Type
Open center
