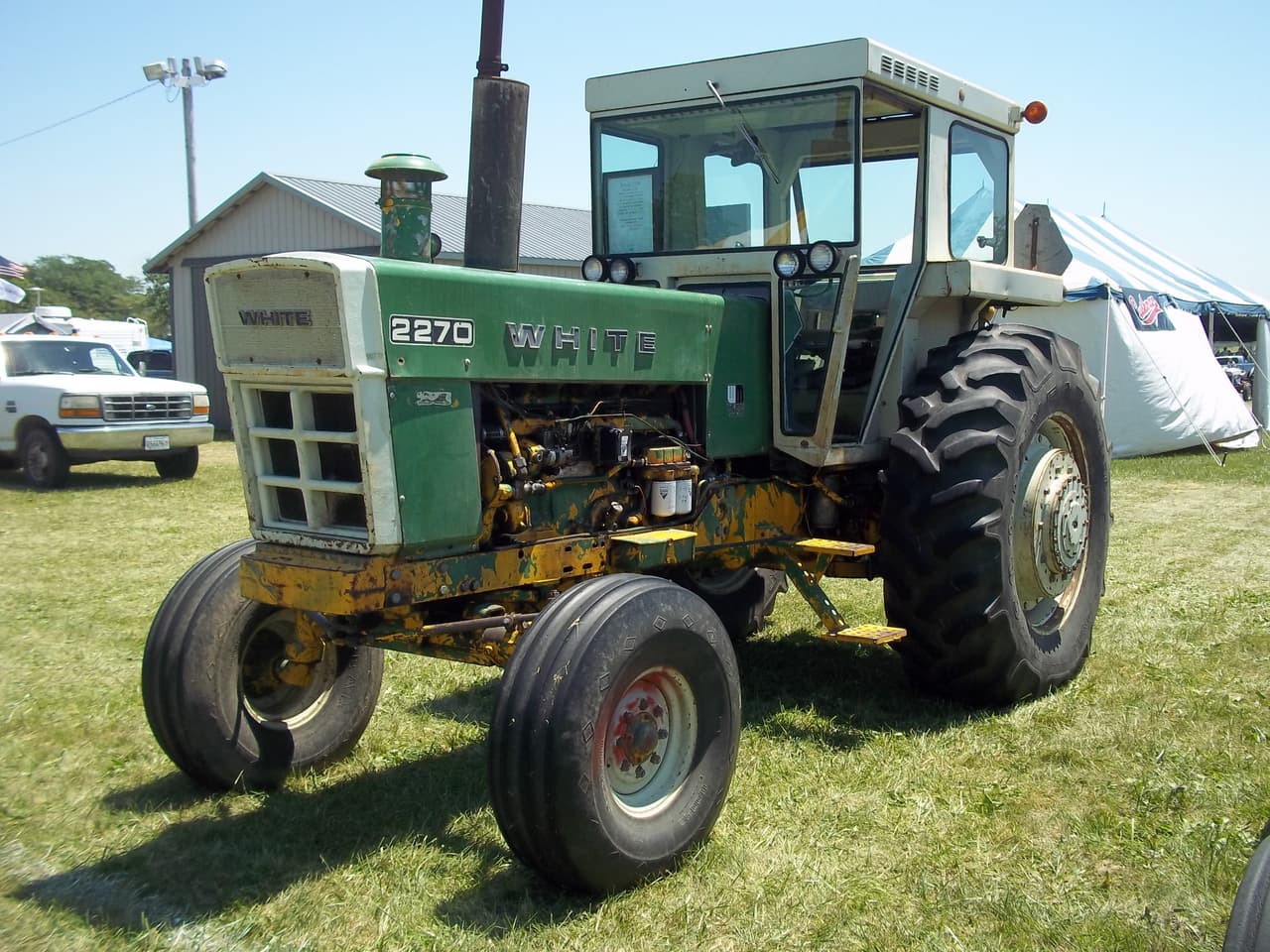

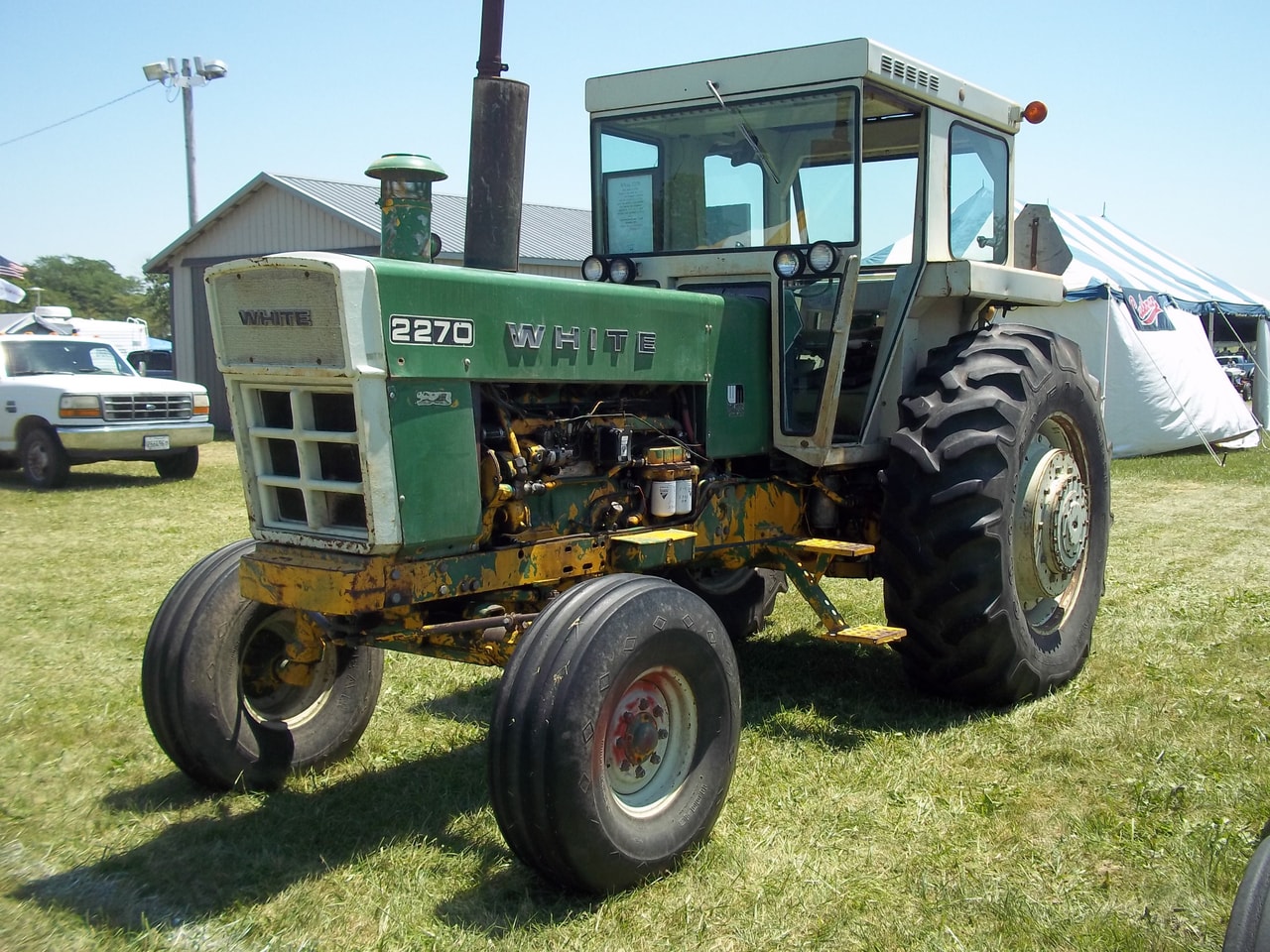

Oliver 2270

Last Updated: June 2024

Overview

The Oliver 2270 is a classic tractor offering reliable performance with its 2WD (4x2) chassis and hydrostatic power steering for ease of maneuverability. Equipped with an Oliver-manufactured, six-cylinder Minneapolis-Moline diesel engine, the 2270 model comes with a notable displacement of 585 cubic inches and operates at a rated speed of 2200 RPM. The engine employs a liquid-cooling system to maintain optimal temperatures during heavy-duty work. This tractor is ideal for those who appreciate the vintage appeal and sturdy construction of Oliver tractors, with its significant 17,100 lbs operating weight, this machine is built for substantial tasks. The tractor's Hydraul-Shift gearbox with an 18 forward and 6 reverse gear configuration demonstrates its capacity for varied field requirements. Additionally, the front and rear tire dimensions, along with the tractor's wheelbase, suggest stability and substantial traction, beneficial for diverse agricultural duties.
Show more...

Key Specifications

Transmission: Three-range power shift

Drive Type: 2WD

Operating Weight: 17,100

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Minneapolis-Moline
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural
Cylinders
6
Displacement (ci)
585
Bore (in)
4.75
Stroke (in)
5.5
Rated RPM
2200
Power Output (hp)
-

Transmission

Type
Three-range power shift
Forward Gears
18
Reverse Gears
6
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
17,100

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
33
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Categories II and III
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
12 volts
Brake Type
-
Hydraulic System Type
Closed center
