Oliver 1955

Last Updated: June 2024

Overview

The Oliver 1955 is a 2WD or 4WD row-crop tractor from the 55 series. This tractor was manufactured by White from 1970 to 1974. The Oliver 1955 is equipped with a 5.1 L (310.0 cu·in) six-cylinder diesel engine and one of two transmissions: a gear type transmission with 6 forward and 2 reverse gears or a partial power shift transmission with 18 forward and 6 reverse gears. The tractor used the Oliver-Waukesha engine which is a six-cylinder turbocharged diesel engine with a bore and stroke measuring 98.0 mm (3.86 in) and 111.0 mm (4.37 in) respectively. This engine produced 108 HP at 2,400 rpm of output power. The tractor is equipped with power steering, differential hydraulic dry disc brakes, and has the option of an open operator station or a cab. It also has a large fuel tank capacity of 35 US gallons.

Key Specifications

Category: Row Crop

Power Output: 108

Transmission: Gear or partial power shift

Drive Type: 2WD and 4WD variants available

Operating Weight: 11,250

Fuel Type: Diesel

Image Gallery

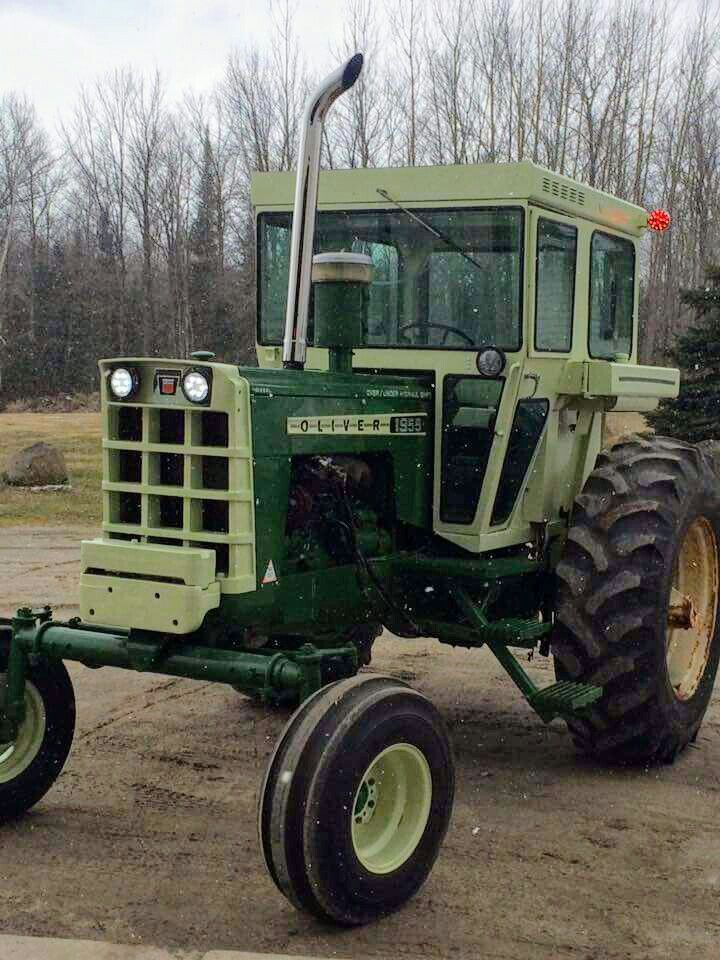

Oliver 1955 Tractor

Oliver 1955 vs. Similar Tractors

Power Output

Below Average

Greater than 26% of similar tractors.

Hitch Capacity

Poor

Greater than 8% of similar tractors.

Operating Weight

Poor

Greater than 5% of similar tractors.

Technical Specifications

Engine

Manufacturer: Oliver-Waukesha
Model: Oliver-Waukesha
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 6
Displacement (ci): 310
Bore (in): 3.86
Stroke (in): 4.37
Rated RPM: 2400
Power Output (hp): 108

Transmission

Type: Gear or partial power shift
Forward Gears: 6 (gear type), 18 (Hydraul-Shift)
Reverse Gears: 2 (gear type), 6 (Hydraul-Shift)
Total Gears: -

Dimensions

Length (in): 159.4 (2WD), 152.4 (4WD)
Width (in): 80.3
Height (in): 85.4 (to steering wheel)
Operating Weight (lb): 11,250

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 1,000
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD or 4x4 MFWD 4WD
Drive Type: 2WD and 4WD variants available
Steering Type: Power
Coolant Capacity (qts): 20
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 1974
Hitch Type: -
Hitch Category: III/II
Hitch Position: -
Hitch Capacity (lb): 6,000
Operator Station Type: Open operator station or two-post ROPS and cab (optional)
Starter Type: Electric
Brake Type: Differential hydraulic dry disc
Hydraulic System Type: Closed center
