Oliver 1950

Last Updated: June 2024

Overview

The Oliver 1950 is a 2WD or 4WD row-crop tractor that was produced between 1964 and 1967 in Charles City, Iowa, by Oliver, part of White. It's powered by a General Motors 4-53 diesel engine with a displacement of 212.4 ci, a bore and stroke of 3.875 x 4.50 inches, and a power output of 105 hp at 2400 RPM. This model came with either a gear type transmission with 6 forward and 2 reverse gears, or a partial power shift Hydra-Power transmission with 12 forward and 4 reverse gears. The tractor features hydraulic power steering, differential disc brakes, and optional cabin or open operator station. It operates on standard agricultural tires and offers a rear PTO speed of 540 rpm.

Key Specifications

Category: Row Crop

Power Output: 105

Transmission: Gear or Partial power shift

Drive Type: 2WD or 4WD

Operating Weight: 11955 (2WD) to 12975 (standard configuration) or 12974 (4WD)

Fuel Type: Diesel

Image Gallery

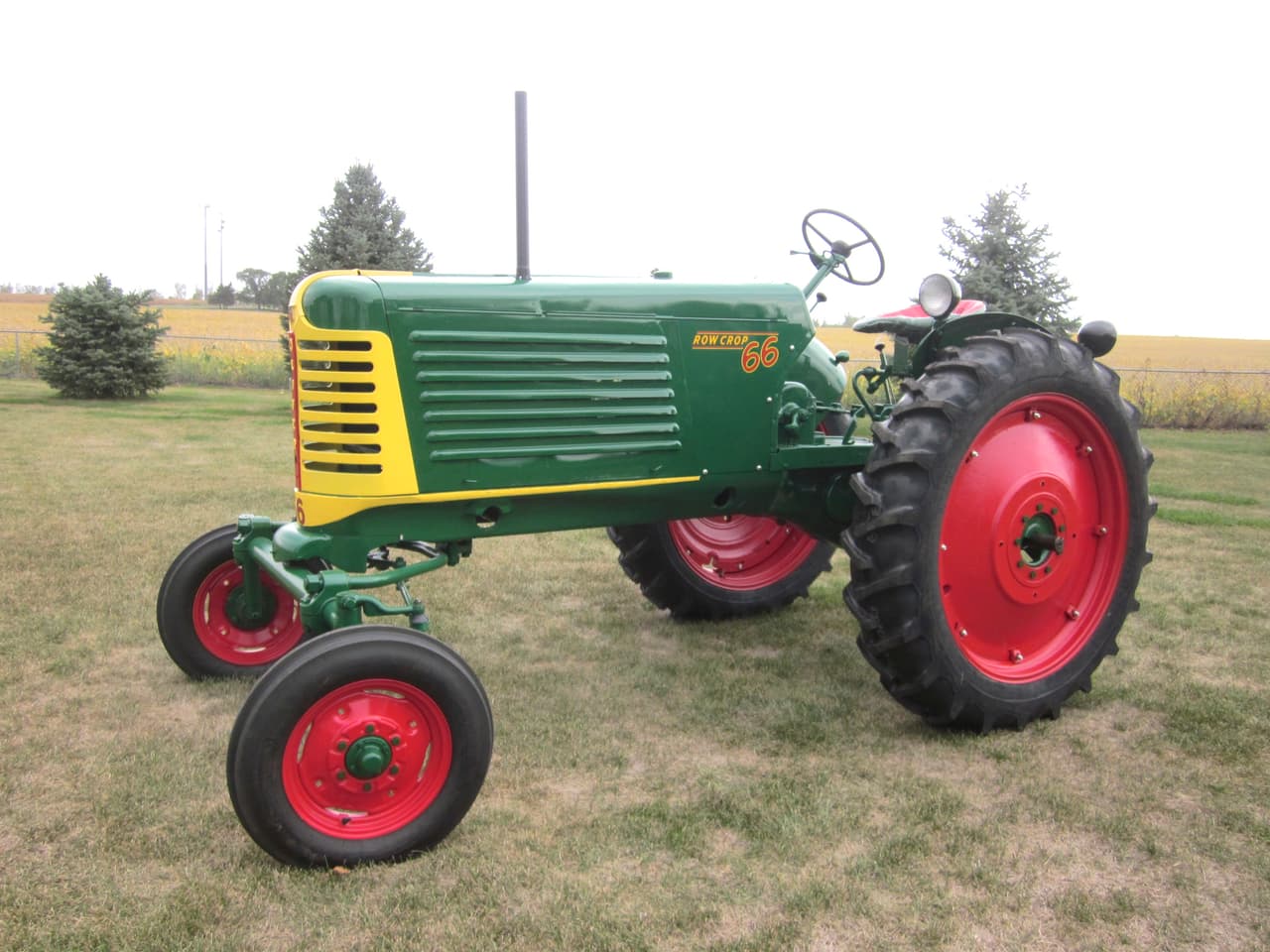

Oliver 1950 Tractor

Oliver 1950 vs. Similar Tractors

Power Output

Below Average

Greater than 25% of similar tractors.

Operating Weight

Excellent

Greater than 100% of similar tractors.

Technical Specifications

Engine

Manufacturer: General Motors
Model: Apr-53
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Blower (Two-cycle diesel engine with blower)
Cylinders: 4
Displacement (ci): 212.4
Bore (in): 3.875
Stroke (in): 4.5
Rated RPM: 2400
Power Output (hp): 105

Transmission

Type: Gear or Partial power shift
Forward Gears: 6 (Gear type) or 12 (Hydra-Power)
Reverse Gears: 2 (Gear type) or 4 (Hydra-Power)
Total Gears: -

Dimensions

Length (in): -
Width (in): -
Height (in): -
Operating Weight (lb): 11955 (2WD) to 12975 (standard configuration) or 12974 (4WD)

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD or 4x4 MFWD 4WD
Drive Type: 2WD or 4WD
Steering Type: Hydraulic power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 1967
Hitch Type: -
Hitch Category: II/I
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: Open or Optional Cab
Starter Type: Electric
Brake Type: Differential disc
Hydraulic System Type: -
