Oliver 1750

Last Updated: July 2024

Overview

The Oliver 1750 is a versatile row-crop tractor that was produced by Oliver in Charles City, Iowa, from 1966 to 1969. It features a choice of a 4.6 L six-cylinder gasoline engine or a 5.1 L six-cylinder diesel engine, and comes with several transmission options, including unsynchronized gear, Hydra-Power partial power shift, and Hydraul-Shift partial power shift, which offer different gear configurations. This tractor is available with either 2WD or 4WD and is equipped with power assist steering and differential mechanical disc brakes. It has an open operator station with an option for an Oliver Continental Cab, and an independent rear PTO running at 540 rpm. The tractor also has an open-center hydraulic system with a capacity of 18.9 liters (5 US gal). Its robust design and a variety of attachment options make it suitable for a wide range of agricultural tasks.

Key Specifications

Category: Row Crop

Power Output: 80.31

Transmission: Unsynchronized gear, Partial power shift (Hydra-Power or Hydraul-Shift)

Drive Type: 2WD or 4WD

Operating Weight: 9760

Fuel Type: Gasoline or Diesel

Image Gallery

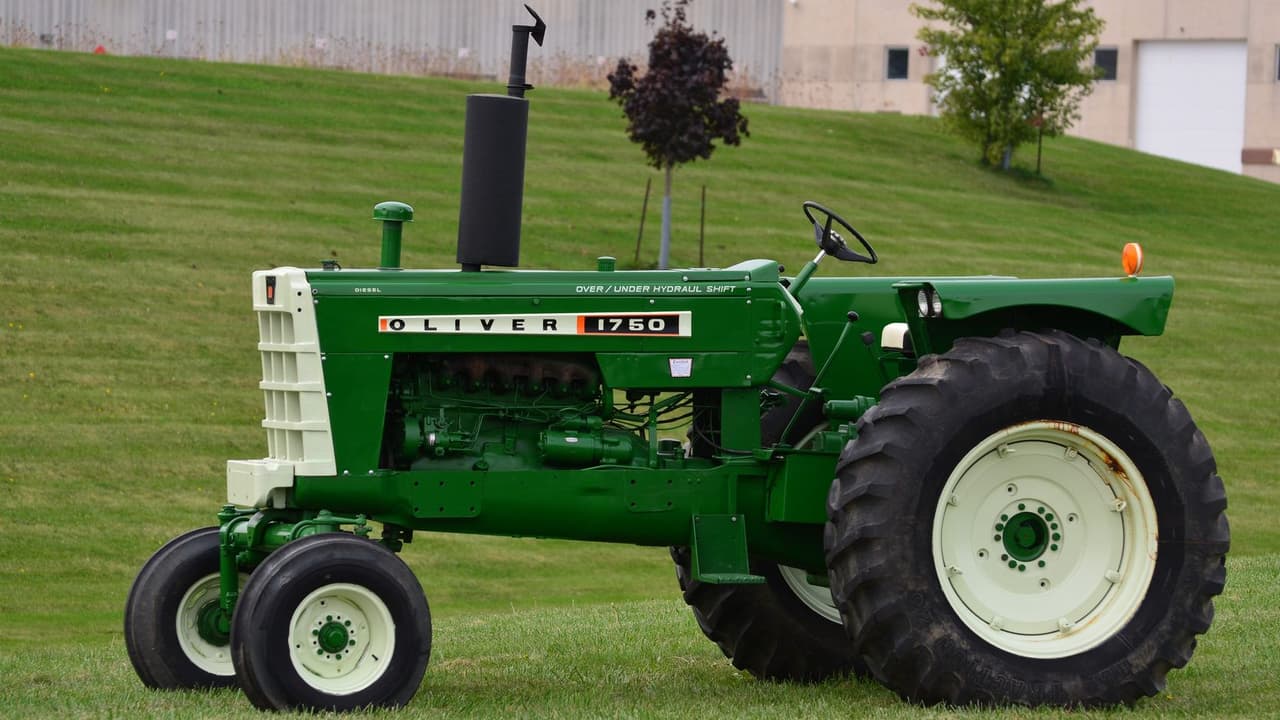

Oliver 1750 Tractor

Oliver 1750 vs. Similar Tractors

Power Output

Below Average

Greater than 11% of similar tractors.

Hitch Capacity

Average

Greater than 42% of similar tractors.

Operating Weight

Above Average

Greater than 84% of similar tractors.

Technical Specifications

Engine

Manufacturer: Waukesha-Oliver
Model: Waukesha-Oliver
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Gasoline or Diesel
Induction Type: Naturally aspirated
Cylinders: 6
Displacement (ci): 283 (gasoline), 310 (diesel)
Bore (in): 3.875 (gasoline), 3.86 (diesel)
Stroke (in): 4.0 (gasoline), 4.37 (diesel)
Rated RPM: 2400
Power Output (hp): 80.31

Transmission

Type: Unsynchronized gear, Partial power shift (Hydra-Power or Hydraul-Shift)
Forward Gears: 12
Reverse Gears: 4
Total Gears: -

Dimensions

Length (in): 159.4 (2WD), 152.4 (4WD)
Width (in): 80.3
Height (in): 85 (2WD), 85.4 (4WD)
Operating Weight (lb): 9760

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD or 4x4 MFWD 4WD
Drive Type: 2WD or 4WD
Steering Type: Power assist
Coolant Capacity (qts): Unknown
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 1969
Hitch Type: Three-Point Hitch
Hitch Category: II
Hitch Position: Rear
Hitch Capacity (lb): 5998 lbs
Operator Station Type: Open or Oliver Continental Cab (optional)
Starter Type: Electric
Brake Type: Differential mechanical disc
Hydraulic System Type: Open center

Test Results

Nebraska Tractor Test Laboratory - Test Date: May 22 to June 20, 1967

Maximum Power and Fuel Consumption

Maximum Power: 80.31 HP (59.89 kW) at 2400 rpm
Fuel Consumption at Maximum Power: 6.952 Gal/hr (26.32 l/h) with a fuel efficiency of 0.530 lb/hp.hr (0.322 kg/kW.h)
Fuel Efficiency: 11.55 Hp.hr/gal (3.66 kW.h/l)

Varying Power and Fuel Consumption

Average Power Output: 43.43 HP (32.39 kW) at 2532 rpm
Average Fuel Consumption: 5.082 Gal/hr (19.23 l/h) with an average fuel efficiency of 0.717 lb/hp.hr (0.436 kg/kW.h)
Fuel Efficiency: 8.55 Hp.hr/gal (2.71 kW.h/l)

Drawbar Performance

Maximum Available Power (6th Gear): 67.05 HP (50.02 kW) with a drawbar pull of 6859 lbs (30.51 kN) and a speed of 3.67 mph (5.91 km/h) with 7.98% slip
Fuel Consumption at Maximum Power: 7.034 Gal/hr (26.63 l/h) with a fuel efficiency of 0.642 lb/hp.hr (0.391 kg/kW.h)
75% of Pull at Maximum Power (6th Gear): 54.72 HP (40.81 kW) with a drawbar pull of 5204 lbs (23.15 kN) and a speed of 3.94 mph (6.34 km/h) with 5.37% slip

Additional Parameters

Rear Tires: Two 18.4-34; 6 ply; 16 psi
Static Weight with Ballast and Operator: Rear - 9570 lb, Front - 2580 lb, Total - 12150 lb
Fuel Type: Regular gasoline, Octane No: Motor - 84.8, Research - 92.5
