NorTrac NT-304

Last Updated: June 2024

Overview

The NorTrac NT-304 is a compact 4WD tractor, well-suited for a variety of tasks in small farms, large gardens, or as utility equipment in larger agricultural operations. It features a Jinma 2.2L 3-cylinder diesel engine with an output of 30 horsepower and operates at a rated 2200 RPM. The tractor is equipped with an 8-speed manual transmission system with 8 forward and 2 reverse gears. With a wheelbase of 72.4 inches, and a weight of 3924 lbs, it has the stability and heft necessary for light to medium duty work. The NT-304 rides on standard agricultural tires, measuring 6.00-16 in the front and 11.2-24 in the rear. The tractor lacks some specifics regarding its beginning and end of manufacture dates, operator station type, and features that would appeal to a detailed-oriented owner.

Key Specifications

Power Output: 30

Transmission: Manual

Drive Type: 4WD

Operating Weight: 3924

Fuel Type: Diesel

Image Gallery

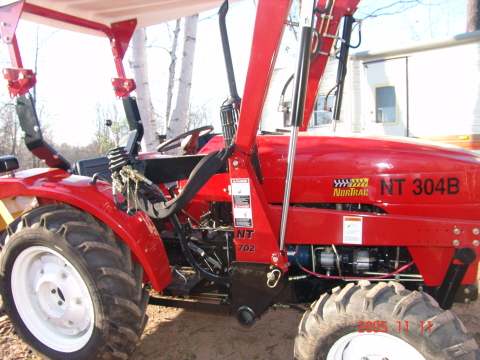

NorTrac NT-304 Tractor

Technical Specifications

Engine

Manufacturer: Jinma
Model: -
Cooling Type: -
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 3
Displacement (ci): 136.1
Bore (in): 3.74
Stroke (in): 4.134
Rated RPM: 2200
Power Output (hp): 30

Transmission

Type: Manual
Forward Gears: 8
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 121.9
Width (in): 57.1
Height (in): 78.1
Operating Weight (lb): 3924

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: -
Coolant Capacity (qts): 7.6
Front Tire Diameter (in): 16
Front Tire Width (in): 6
Rear Tire Diameter (in): 24
Rear Tire Width (in): 11.2
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: -
Hitch Type: Rear Type I
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric Starter
Brake Type: -
Hydraulic System Type: Closed
