NorTrac NT-204C

Last Updated: June 2024

Overview

The NorTrac NT-204C is a compact tractor equipped with a Jinma 380 diesel engine, featuring 3 cylinders and a liquid cooling system. It has a displacement of 82.8 cubic inches and delivers a power output of 20 horsepower at a rated RPM of 2300. This tractor's steering mechanism is power-assisted, offering ease in maneuverability. Despite its small size, with dimensions including a length of 106 inches, width of 48 inches, and height of 84 inches, the NT-204C provides substantial ground clearance of 11.6 inches at the front axle. It is compatible with both agricultural and lawn/turf tires, indicating versatility for various working conditions. The NorTrac NT-204C is built to be sturdy, as reflected by its operating weight of 2734 pounds, and features a manual transmission with 6 forward and 2 reverse gears, suggesting ample gear selections for different tasks.

Key Specifications

Power Output: 20

Transmission: Manual

Operating Weight: 2734

Fuel Type: Diesel

Image Gallery

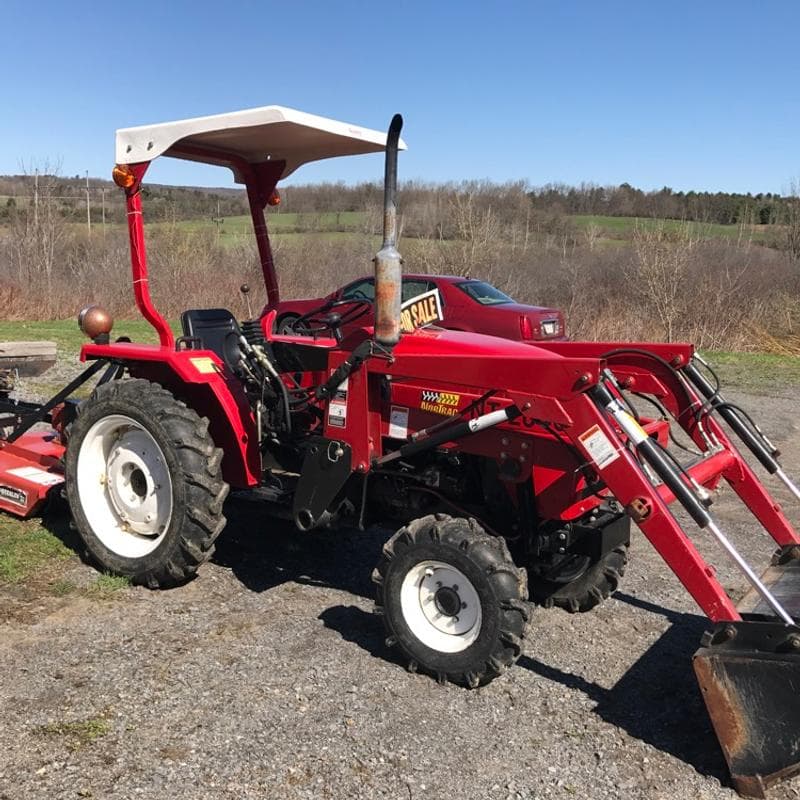

NorTrac NT-204C Tractor

Technical Specifications

Engine

Manufacturer: Jinma
Model: 380
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural
Cylinders: 3
Displacement (ci): 82.8
Bore (in): -
Stroke (in): -
Rated RPM: 2300
Power Output (hp): 20

Transmission

Type: Manual
Forward Gears: 6
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 106
Width (in): 48
Height (in): 84
Operating Weight (lb): 2734

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: Power
Coolant Capacity (qts): 10.6
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag tires (6.00-12 front, 8.3-24 rear), Lawn/turf optional (26x7.5-12 front, 11.3-20 rear)
Manufacture - End Year: -
Hitch Type: Category I
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: -
Brake Type: -
Hydraulic System Type: -
