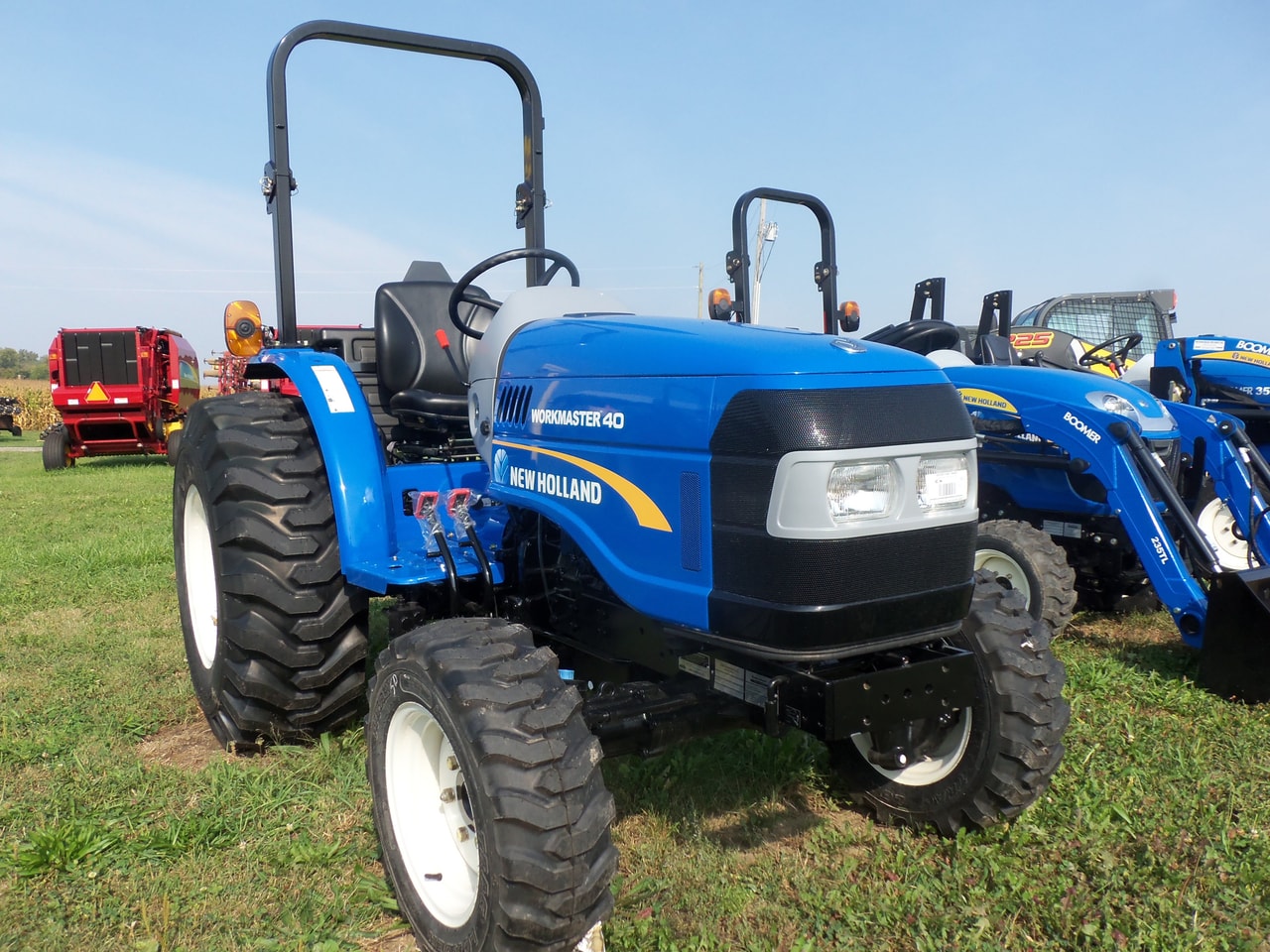

New Holland Workmaster 40

Last Updated: June 2024

Overview

The New Holland Workmaster 40 is a compact utility tractor designed for a variety of tasks around the farm or homestead. It features a 4-wheel drive (4WD) with a 4x4 Mechanical Front Wheel Drive (MFWD) chassis and hydrostatic power steering for easy maneuverability. The engine is a liquid-cooled, turbocharged diesel with a displacement of approximately 122 to 114.7 cubic inches, and it operates at a rated RPM of 2600, delivering a power output of 40 horsepower. The transmission offers 12 gears in both forward and reverse, accommodating a variety of tasks that require different speeds. The tractor also supports various tire configurations, including standard agricultural, lawn/turf, and industrial options. This versatility, combined with a notable lift capacity and electronic enhancements such as common rail direct injection and advanced emission controls, make the Workmaster 40 a powerful and adaptable machine for a wide range of applications.
Show more...

Key Specifications

Category: Utility

Power Output: 40

Drive Type: 4WD

Operating Weight: 3067

Fuel Type: Diesel

New Holland Workmaster 40 vs. Similar Tractors

Power Output
Average
Greater than 37% of similar tractors.
Operating Weight
Below Average
Greater than 26% of similar tractors.

Technical Specifications

Engine

Manufacturer
LS
Model
L3AL or L3C19-T (Assuming both models are applicable as both are mentioned)
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged (for engine model L3AL, assuming natural aspiration for L3C19-T as not stated)
Cylinders
3
Displacement (ci)
122 or 114.7 (Noted discrepancy in data)
Bore (in)
3.543/3.465 (Discrepancy in data - both values provided)
Stroke (in)
4.134/4.055 (Discrepancy in data - both values provided)
Rated RPM
2600
Power Output (hp)
40

Transmission

Type
-
Forward Gears
12
Reverse Gears
12
Total Gears
24

Dimensions

Length (in)
121
Width (in)
66.5
Height (in)
87.7
Operating Weight (lb)
3067

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
Unknown for standard tires, 25 for industrial tires
Front Tire Width (in)
Unknown for standard, 8.5 for industrial tires
Rear Tire Diameter (in)
Unknown for standard tires, 41 for turf and 43 for industrial tires
Rear Tire Width (in)
Unknown for standard, 14.00 for turf and 16.00 for industrial tires
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag), Lawn/turf, Industrial
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Unknown (assumed to be an open station due to weight provided for ROPS height)
Starter Type
Electric starter
Brake Type
-
Hydraulic System Type
Open center
