New Holland TV140

Last Updated: July 2024

Overview

The New Holland TV140 is a robust utility tractor known for its versatility and articulation, making it suitable for advanced farming operations. This tractor was produced by New Holland from 1998 to 2002 in both Winnipeg, Manitoba, Canada, and Fargo, North Dakota, USA. With its infinitely variable hydrostatic transmission using a variable displacement pump and motor, offering infinite (3-range) forward and reverse gears, it provides ease and variability in speed control suitable for various tasks. Equipped with a six-cylinder turbocharged diesel engine producing 140 hp, and a 456 cubic inch displacement, the TV140 can handle an array of challenging jobs. Additional attributes such as power steering, hydraulic disc brakes operated by foot pedal, and a comfortable cab with heat and A/C make it a favorable choice for extended use in agricultural settings. The operating weight has been updated to 14,880 lb based on independent test results. Additional details on fuel, oil, lubricants, tire specifications, and three-point hitch performance have been added to the specifications.
Show more...

Key Specifications

Category: Utility

Power Output: 140

Transmission: Infinitely variable hydrostatic using a variable displacement pump and motor

Drive Type: 4WD

Operating Weight: 14880

Fuel Type: Diesel

Image Gallery

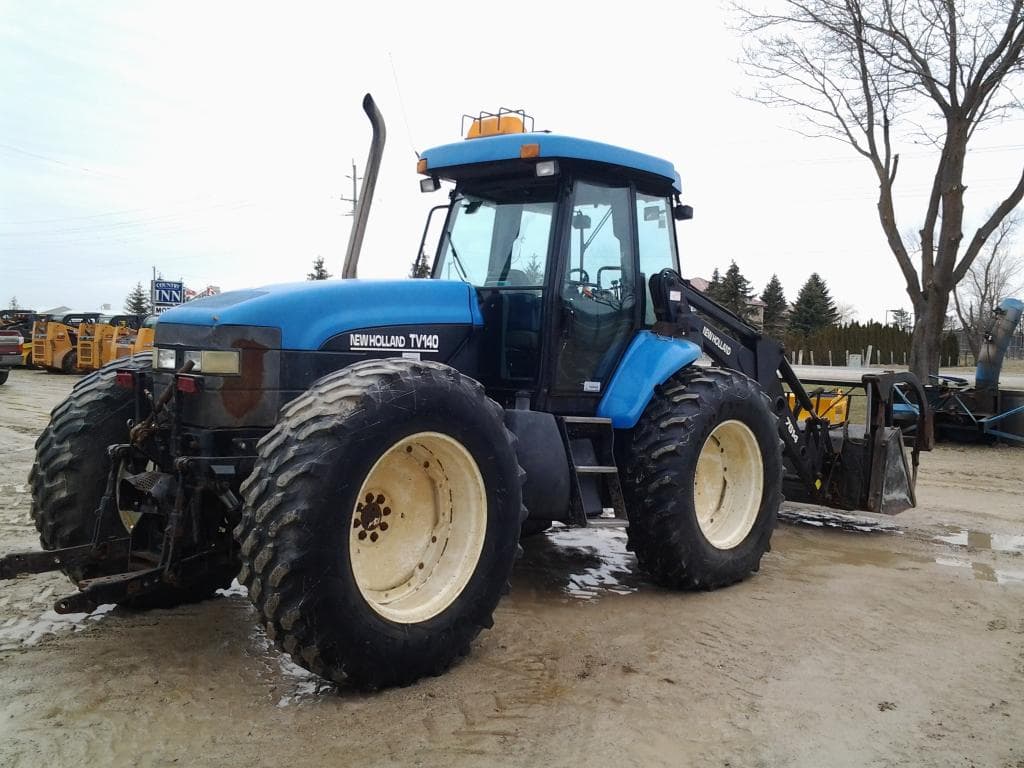

New Holland TV140 Tractor New Holland TV140 Tractor New Holland TV140 Tractor New Holland TV140 Tractor New Holland TV140 Tractor New Holland TV140 Tractor New Holland TV140 Tractor New Holland TV140 Tractor

New Holland TV140 vs. Similar Tractors

Power Output
Above Average
Greater than 90% of similar tractors.
Operating Weight
Average
Greater than 68% of similar tractors.

Technical Specifications

Engine

Manufacturer
New Holland
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
456
Bore (in)
4.40
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
140

Transmission

Type
Infinitely variable hydrostatic using a variable displacement pump and motor
Forward Gears
Infinite (3-range)
Reverse Gears
Infinite (3-range)
Total Gears
-

Dimensions

Length (in)
174.8
Width (in)
-
Height (in)
119
Operating Weight (lb)
14880

Power Take-Off (PTO)

PTO Type
Optional Transmission or Live PTO
PTO Speed 1 (rpm)
540 rpm at 1890 engine rpm or 1000 rpm at 2049 engine rpm
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 articulated 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
26
Front Tire Diameter (in)
28
Front Tire Width (in)
16.9
Rear Tire Diameter (in)
28
Rear Tire Width (in)
16.9
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
2002
Hitch Type
Three-Point Hitch
Hitch Category
Category II
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
Caliper disc hydraulically operated by foot pedal
Hydraulic System Type
Closed center load sensing

Test Results

Nebraska Tractor Test Laboratory - Test Date: November, 1999

Maximum Power and Fuel Consumption

  • Maximum Power: 111.8 HP (83.4 kW) at 1800 rpm
  • Fuel Consumption at Maximum Power: 7.10 Gal/hr (26.87 l/h) with a fuel efficiency of 0.450 lb/hp.hr (0.274 kg/kW.h)
  • Fuel Efficiency at Standard PTO Speed (1000 rpm): 14.51 Hp.hr/gal (2.86 kW.h/l)

Drawbar Performance

  • Maximum Power at Low Range: 81.3 HP (60.6 kW) with a drawbar pull of 5360 lbs (23.84 kN) and a speed of 5.69 mph (9.15 km/h)
  • 75% of Pull at Maximum Power (Low Range): 64.1 HP (47.8 kW) with a drawbar pull of 4020 lbs (17.89 kN) and a speed of 5.98 mph (9.62 km/h)
  • 50% of Pull at Maximum Power (Low Range): 44.2 HP (33.0 kW) with a drawbar pull of 2680 lbs (11.93 kN) and a speed of 6.18 mph (9.94 km/h)

Torque and Engine Performance

  • Maximum Torque: 395 lb.-ft. (535 Nm) at 1200 rpm
  • Torque Rise: 60.2% with a power increase at 1800 rpm of 32%

Hydraulic Performance

  • Maximum Force Exerted Through Whole Range: 5440 lbs (24.2 kN) at cab end; 4450 lbs (19.8 kN) at engine end
  • Pump Delivery Rate at Minimum Pressure: 30.1 GPM (113.8 l/min)
  • Hydraulic Power: 39.4 HP (29.4 kW) at delivery pressure of 2595 psi (179 bar)

Overall Efficiency

  • Fuel Consumption Characteristics at 75% Load in Mid Range: 79.0 db(A) - Tractor Sound Level in db(A)
  • Tractor Mass: 14715 lbs (6674 kg)



Nebraska Tractor Test Lab. (1999). Nebraska Summary: S323 New Holland TV140. Lincoln, NE: University of Nebraska-Lincoln. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/2792
