New Holland TS125A

Last Updated: July 2024

Overview

The New Holland TS125A is a 4-wheel drive utility tractor produced from 2003 to 2007. It is powered by a CNH 6-cylinder turbocharged intercooled diesel engine with an electronic common rail fuel system. The engine has a liquid-cooling system and a displacement of 410 cubic inches, operating at a rated power of 143.9 horsepower at 1901 RPM with a peak torque of 424.8 lb-ft at 1647 RPM. The tractor features power steering and a power shift transmission with 24 forward and reverse gears. The TS125A offers a three-point hitch with a maximum lift capacity of 7825 lbs and both fixed and variable displacement hydraulic systems. The tractor's unladen weight is 12,065 lbs. It has a standard wheelbase of 104.4 inches, with overall dimensions of 178.4 inches in length and 75.3 inches in width, with a height of 116.7 inches. Additional features include wet disc hydraulic brakes, thermostat and variable speed fan for cooling, and various tire configurations for agricultural applications.
Show more...

Key Specifications

Category: Utility

Power Output: 143.9

Transmission: Power shift

Drive Type: 4WD

Operating Weight: 12065

Fuel Type: Diesel

Image Gallery

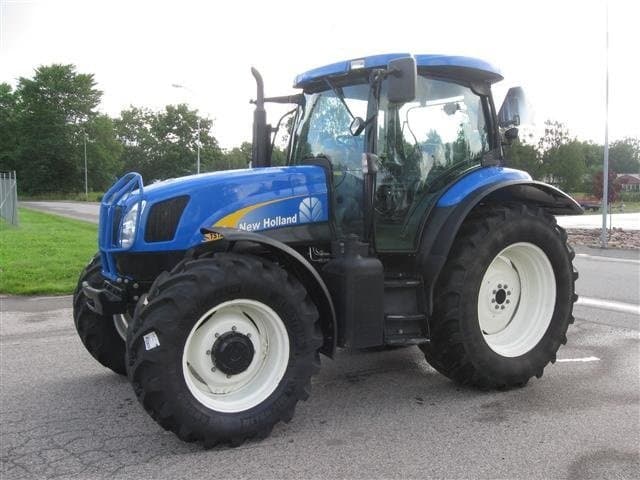

New Holland TS125A Tractor New Holland TS125A Tractor New Holland TS125A Tractor New Holland TS125A Tractor New Holland TS125A Tractor New Holland TS125A Tractor

New Holland TS125A vs. Similar Tractors

Power Output
Above Average
Greater than 88% of similar tractors.
Hitch Capacity
Above Average
Greater than 85% of similar tractors.
Operating Weight
Average
Greater than 65% of similar tractors.

Technical Specifications

Engine

Manufacturer
CNH
Model
CNH Diesel
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
24-valve
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
6
Displacement (ci)
410
Bore (in)
4.094
Stroke (in)
5.196
Rated RPM
2200
Power Output (hp)
143.9

Transmission

Type
Power shift
Forward Gears
24
Reverse Gears
24
Total Gears
-

Dimensions

Length (in)
178.4
Width (in)
75.3
Height (in)
116.7
Operating Weight (lb)
12065

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
2007
Hitch Type
Three-Point Hitch
Hitch Category
Category II
Hitch Position
Rear
Hitch Capacity (lb)
7825
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center and closed center

Test Results

Nebraska Tractor Test Laboratory - Test Date: March to May 2005

[Test results content remains unchanged]
