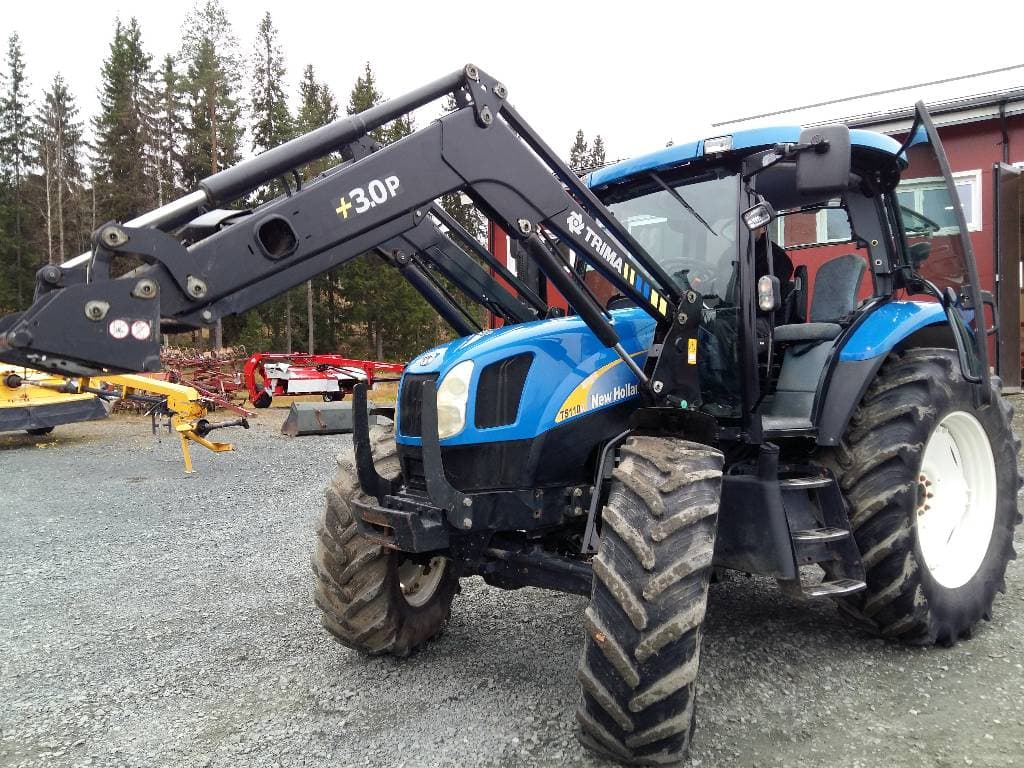

New Holland TS110A

Last Updated: June 2024

Overview

The New Holland TS110A is a robust utility tractor, designed to meet a variety of demands found in medium-sized farming operations. With its 4-wheel drive (4WD) and 4x4 MFWD chassis, it offers superior traction and can handle diverse terrain. The power steering facilitates easy maneuverability. It showcases a partial power shift transmission, allowing for 16 gears while moving forward or in reverse. The engine, designed by New Holland, is a 4-cylinder, 16-valve turbocharged and intercooled unit with liquid cooling, ensuring reliable performance and efficiency. Boasting a displacement of 273.7 cubic inches and operating at an engine rated RPM of 2200, it's capable of delivering 112 horsepower with a notable peak of 143 horsepower. Electronic common-rail fuel system enhances the performance and fuel efficiency. The tractor's dimensions offer a balance of productivity and accessibility, with a length of 169 inches, width of 73.7 inches, and height of 113.2 inches. The standard agricultural tires support heavy-duty operations. Weighing in at 10560 lbs, its robust build can accommodate a broad range of agricultural tasks.
Show more...

Key Specifications

Category: Utility

Power Output: 112

Transmission: Partial power shift

Drive Type: 4WD

Operating Weight: 10560

New Holland TS110A vs. Similar Tractors

Power Output
Above Average
Greater than 86% of similar tractors.
Operating Weight
Average
Greater than 63% of similar tractors.

Technical Specifications

Engine

Manufacturer
New Holland
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
4-cylinder 16-valve
Fuel Type
-
Induction Type
Turbocharged intercooled
Cylinders
4
Displacement (ci)
273.7
Bore (in)
4.09
Stroke (in)
5.2
Rated RPM
2200
Power Output (hp)
112

Transmission

Type
Partial power shift
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
169
Width (in)
73.7
Height (in)
113.2
Operating Weight (lb)
10560

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard tires (ag)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
