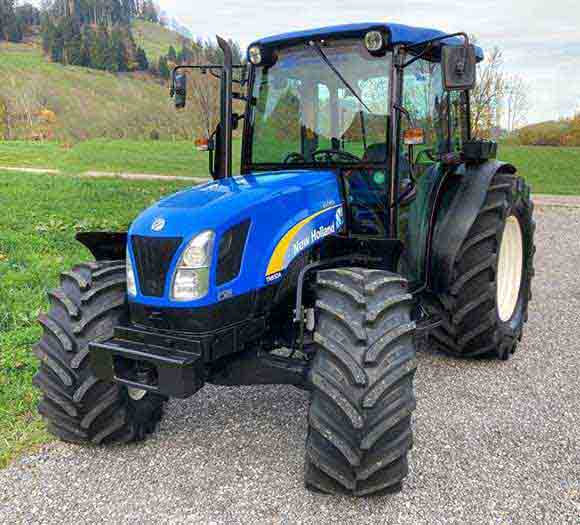

New Holland TN95A

Last Updated: June 2024

Overview

The New Holland TN95A is a utility tractor that offers reliability and versatility for a variety of tasks around the farm. Designed with a 4x4 MFWD 4WD chassis and hydrostatic power steering, it can maneuver in a range of environments. The 12-speed partially synchronized transmission with a power shuttle provides ease of use when shifting gears. It is powered by a 90 hp turbocharged Iveco diesel engine with a displacement of 274 cubic inches (4.5 liters) and operates efficiently at 2300 rpm. The open center hydraulic system, which includes a lift capacity of nearly 4000 pounds at 24 inches, makes for efficient operation of attachments. This model was manufactured by New Holland from 2004 to 2008 and is structured to accommodate a range of tasks with its Cat I and II hitch type. Although its tire sizes and types are not specified, common tire configurations can be assumed based on the typical standards for a tractor in the utility category.
Show more...

Key Specifications

Category: Utility

Power Output: 90

Transmission: Partially synchronized with power shuttle

Drive Type: MFWD 4WD

Operating Weight: 6118

Fuel Type: Diesel

New Holland TN95A vs. Similar Tractors

Power Output
Above Average
Greater than 77% of similar tractors.
Hitch Capacity
Average
Greater than 70% of similar tractors.
Operating Weight
Average
Greater than 48% of similar tractors.

Technical Specifications

Engine

Manufacturer
Iveco
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
274
Bore (in)
4.094
Stroke (in)
5.197
Rated RPM
2300
Power Output (hp)
90

Transmission

Type
Partially synchronized with power shuttle
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
157.5
Width (in)
67.2
Height (in)
95.1
Operating Weight (lb)
6118

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
MFWD 4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
2008
Hitch Type
Cat I and II
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
3968.4 lbs @ 24 inches
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
