New Holland TN85A

Last Updated: June 2024

Overview

The New Holland TN85A is a utility tractor that was manufactured from 2004 to 2008. It features a 2WD chassis and is equipped with a hydrostatic power steering system for smooth maneuverability. It incorporates an Iveco diesel engine with a displacement of 274 ci, naturally aspirated and liquid-cooled, providing a power output of 80 hp at a rated RPM of 2300. The tractor employs a Synchro Command partially synchronized transmission with a mechanical shuttle, offering 12 forward and reverse gears. Designed for a variety of tasks, the TN85A has an operating weight of around 6008 pounds for the 2WD version and comes with a Category 3 rear hitch, capable of lifting up to 3968.4 lbs. The open station type with ROPS ensures safety during operation, while the electric starter system makes ignition convenient.
Show more...

Key Specifications

Category: Utility

Power Output: 80

Transmission: Partially synchronized with mechanical shuttle

Drive Type: 2WD

Operating Weight: 6008 (2WD)

Fuel Type: Diesel

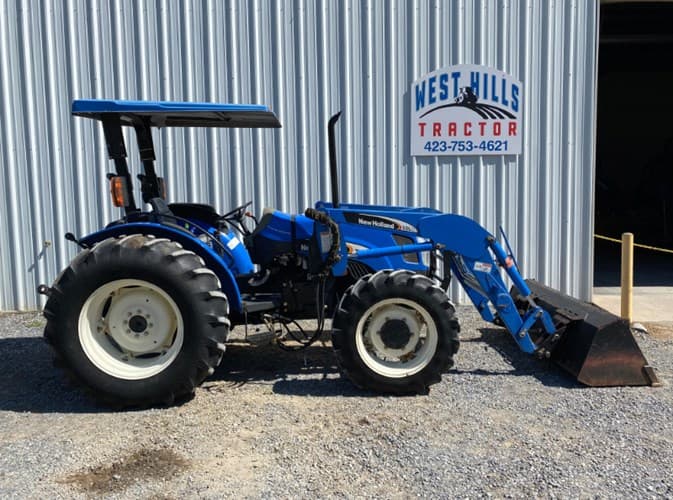

Image Gallery

New Holland TN85A Tractor New Holland TN85A Tractor New Holland TN85A Tractor New Holland TN85A Tractor New Holland TN85A Tractor New Holland TN85A Tractor

New Holland TN85A vs. Similar Tractors

Power Output
Above Average
Greater than 71% of similar tractors.
Hitch Capacity
Average
Greater than 69% of similar tractors.
Operating Weight
Above Average
Greater than 78% of similar tractors.

Technical Specifications

Engine

Manufacturer
Iveco
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural
Cylinders
4
Displacement (ci)
274
Bore (in)
4.094
Stroke (in)
5.197
Rated RPM
2300
Power Output (hp)
80

Transmission

Type
Partially synchronized with mechanical shuttle
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
157.5
Width (in)
67.2
Height (in)
95.1
Operating Weight (lb)
6008 (2WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
20
Front Tire Width (in)
-
Rear Tire Diameter (in)
28
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
2008
Hitch Type
II/I (Three-Point Hitch)
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
3968.4 lbs
Operator Station Type
Open (ROPS)
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
