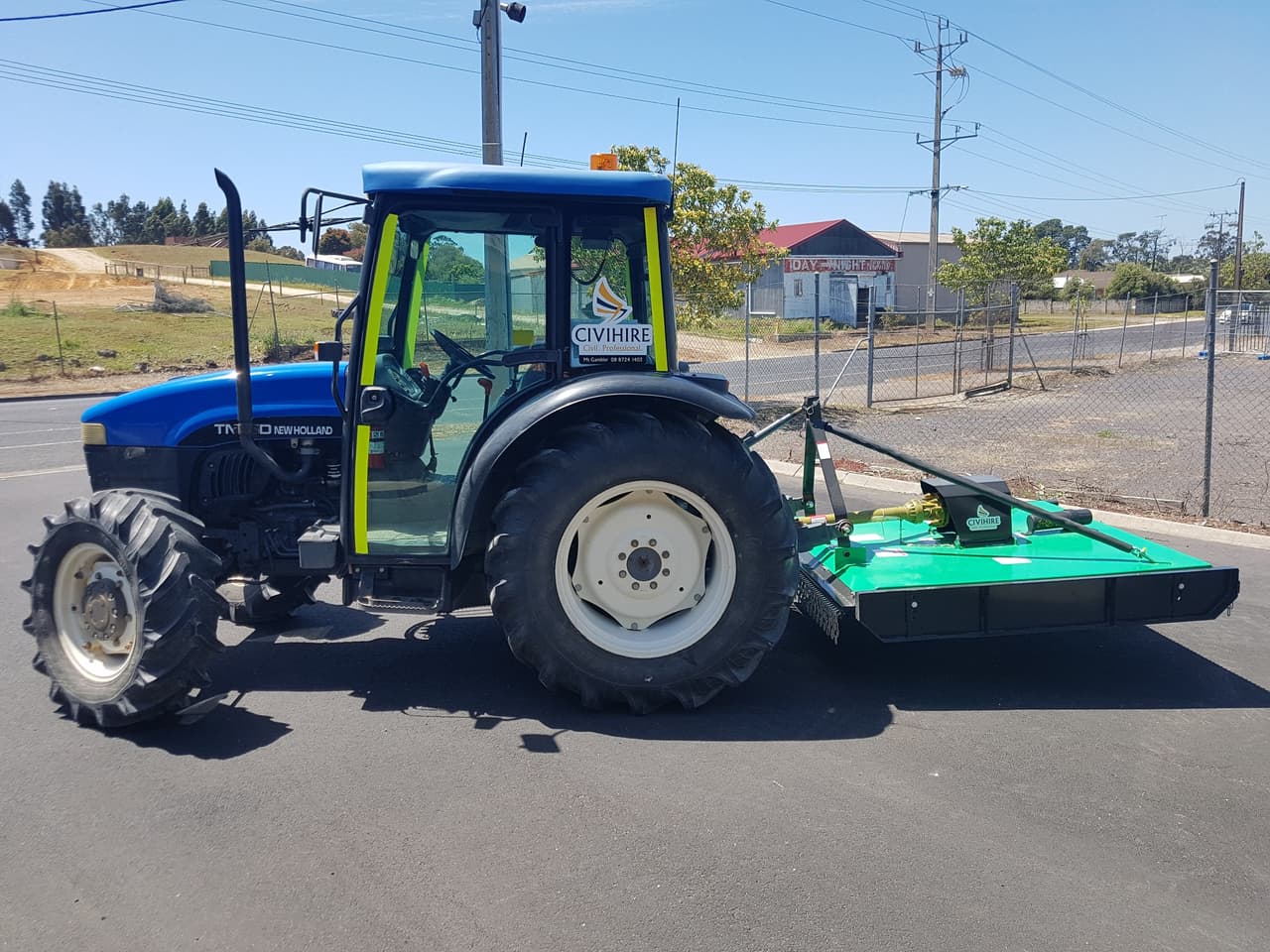

New Holland TN75VA

Last Updated: June 2024

Overview

The New Holland TN75VA is a utility tractor that falls into the category designed for a variety of tasks typical for small farms or estate management. It features a turbocharged engine, with a displacement of 177 cubic inches, that delivers a power output of 75 horsepower at 2300 rpm. This tractor has a 4-wheel drive (4WD) chassis, ensuring better traction in different working conditions. With 16 forward and reverse gears provided by the Synchro Command Plus transmission, the operator can select the optimal speed for diverse tasks and working terrains. The tractor is equipped with a Category II three-point hitch with a lift capacity of 3961.8 pounds at 24 inches, accommodating a wide range of implements. Although some specifics about the tractor's dimensions, such as length, height, and the diameters of its front and rear tires, are unavailable, the overall width is specified at 43.2 inches, making it relatively narrow and capable of navigating tighter spaces. This TN75VA comes with an open center hydraulic system, power measured at the PTO of 62 hp, and is often recognized for its reliability and solid build quality.
Show more...

Key Specifications

Category: Utility

Power Output: 75

Transmission: Syncro Command Plus

Drive Type: 4WD

Fuel Type: Diesel

Lift Capacity: 3961.8

New Holland TN75VA vs. Similar Tractors

Power Output
Average
Greater than 68% of similar tractors.
Hitch Capacity
Average
Greater than 68% of similar tractors.

Technical Specifications

Engine

Manufacturer
-
Model
-
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
3
Displacement (ci)
177
Bore (in)
-
Stroke (in)
-
Rated RPM
2300
Power Output (hp)
75

Transmission

Type
Syncro Command Plus
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
-
Width (in)
43.2
Height (in)
-
Operating Weight (lb)
-

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Cat II
Hitch Category
Category 2
Hitch Position
Rear
Hitch Capacity (lb)
3961.8
Operator Station Type
ROPS/Cab
Starter Type
-
Brake Type
-
Hydraulic System Type
Open Center
