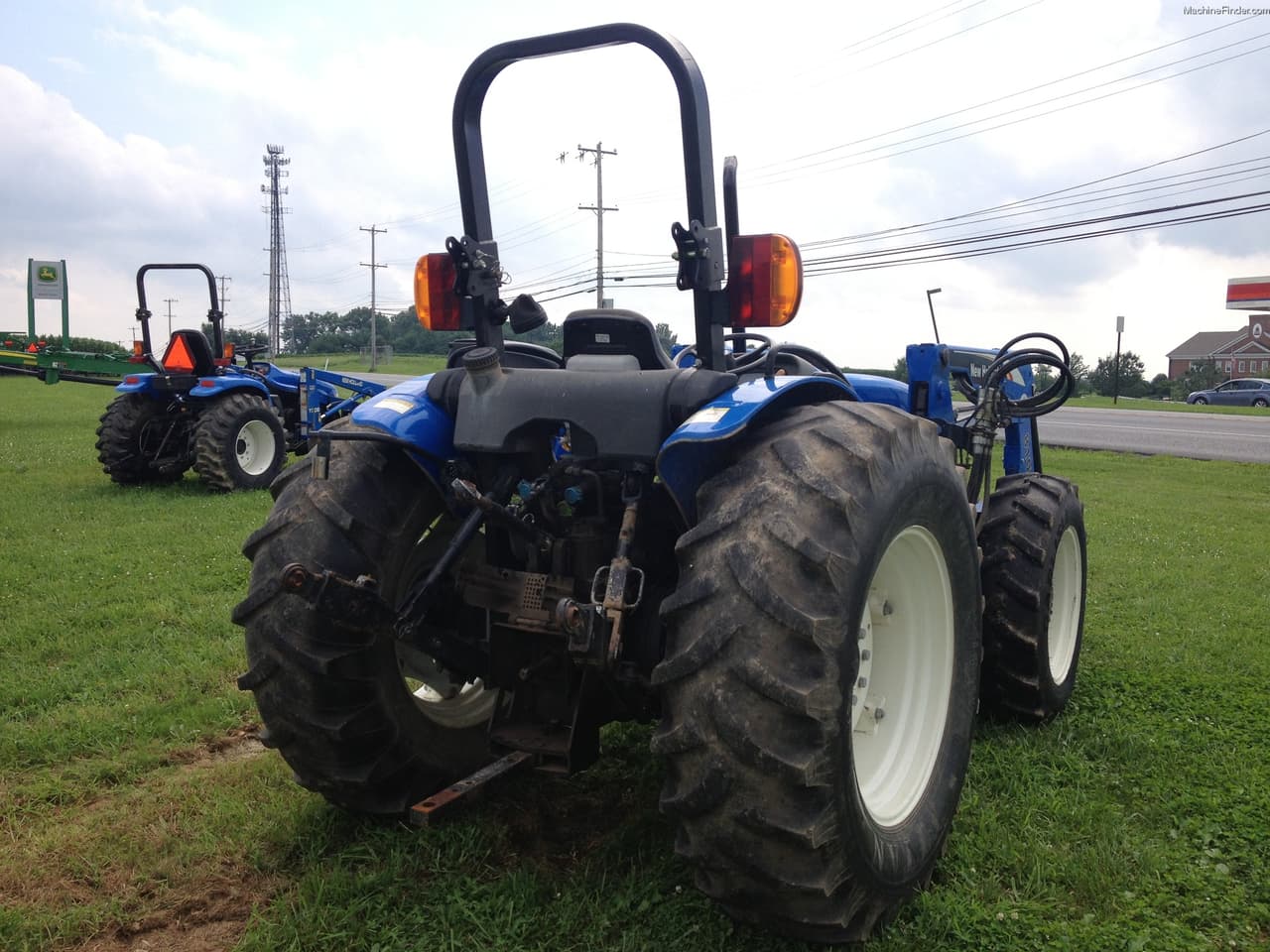

New Holland TN75SA

Last Updated: June 2024

Overview

The New Holland TN75SA is a utility tractor equipped with a 3-cylinder engine with a turbocharged induction type, capable of generating 75 horsepower at 2300 RPM and a torque of 220 lbs/ft measured at 1400 RPM. With its 8x8 constant mesh transmission featuring a synchronized mechanical shuttle, the tractor offers a balance between efficiency and power, suitable for a range of agricultural tasks. The TN75SA has a PTO power rated at 62 hp and operates on a 12V electrical system. Hydraulic capabilities are ensured by a pump flow capacity of 17 gpm and a relief valve pressure of 2755 psi. The lift capacity of its Category II rear hitch is 3968.4 lbs, and it has a moderate turning radius of 12.5 feet, which is ideal for maneuverability in confined spaces. Although certain specifications such as the chassis type and detailed engine configuration remain unspecified, the available data suggests a robust and versatile machine for various farming applications.
Show more...

Key Specifications

Category: Utility

Power Output: 75

Transmission: 8x8 constant mesh with synchronized mechanical shuttle

Lift Capacity: 3968.4 lbs

New Holland TN75SA vs. Similar Tractors

Power Output
Average
Greater than 68% of similar tractors.
Hitch Capacity
Average
Greater than 69% of similar tractors.

Technical Specifications

Engine

Manufacturer
-
Model
-
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
-
Induction Type
Turbocharged
Cylinders
3
Displacement (ci)
177
Bore (in)
-
Stroke (in)
-
Rated RPM
2300
Power Output (hp)
75

Transmission

Type
8x8 constant mesh with synchronized mechanical shuttle
Forward Gears
8
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
156 (assumed typo in CEG data, converted ft to in)
Width (in)
-
Height (in)
76 (assumed typo in CEG data, took the top of cab height as reference)
Operating Weight (lb)
-

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
20
Front Tire Width (in)
11.2
Rear Tire Diameter (in)
28
Rear Tire Width (in)
14.9
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Cat II
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
3968.4 lbs
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
